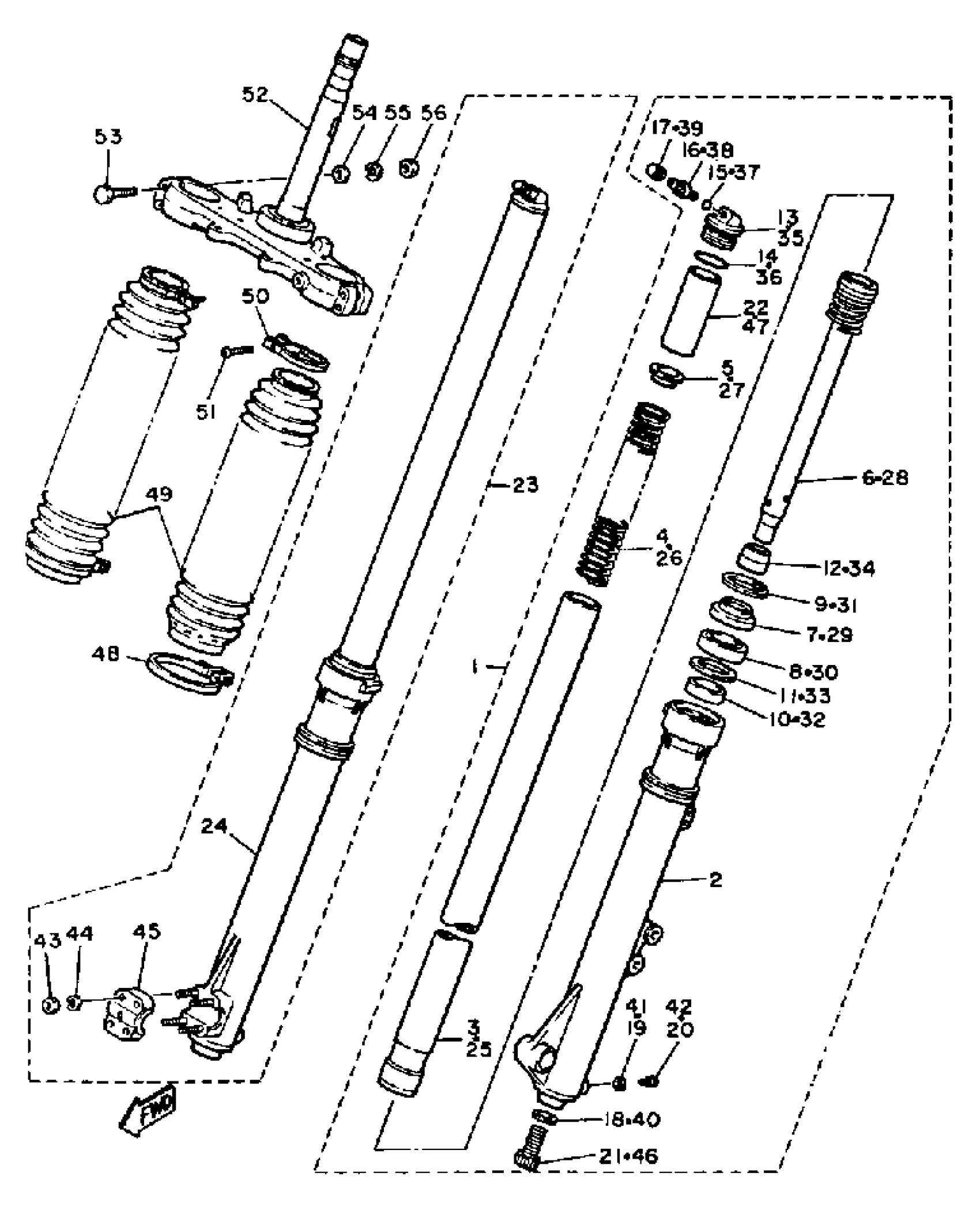

Yamaha XT600LC (XT600 CA) 1984 FRONT FORK Diagram

#

Description
Price

1

FRT FORK ASSEMBLY LH

43F-W2313-00-00

Unavailable

2

. TUBE, OUTER 1

43F-23126-10-38

Unavailable

3

. INNER TUBE 1

43F-23110-10-00

Unavailable

4

. SPRING, FRONT FORK

43F-23141-10-00

Unavailable

5

. SEAT, SPRING UPPER

43F-23142-10-00

Unavailable

6

. CYLINDER, FRTFRK

43F-23170-10-00

Unavailable

7

SEAL, DUST

43F-23144-10-00

$23.99

8

OIL SEAL

43F-23145-10-00

$31.99

9

CLIP, OIL SEAL

26H-23156-00-00

$7.99

10

METAL, SLIDE 1

4FM-23125-40-00

$33.99

11

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

12

. SPINDLE, TAPER

4V4-23173-L0-00

Unavailable

13

. BOLT, CAP

43F-23111-10-00

Unavailable

14

O-RING

43F-23188-10-00

$7.99

15

O-RING

3J2-23147-00-00

$9.99

16

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

17

CAP, AIR VALVE

509-23184-L0-00

Unavailable

18

GASKET

4V4-23158-L0-00

Unavailable

19

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

20

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

21

BOLT

4V4-23181-L0-00

Unavailable

22

SPACER

(43F-23118-10-00)

Unavailable

23

FRT FORK ASSEMBLY RH

(43F-W2314-00-00)

Unavailable

24

. TUBE, OUTER 2

43F-23136-10-38

Unavailable

25

. INNER TUBE 1

43F-23110-10-00

Unavailable

26

. SPRING, FRONT FORK

43F-23141-10-00

Unavailable

27

. SEAT, SPRING UPPER

43F-23142-10-00

Unavailable

28

. CYLINDER, FRTFRK

43F-23170-10-00

Unavailable

29

SEAL, DUST

43F-23144-10-00

$23.99

30

OIL SEAL

43F-23145-10-00

$31.99

31

CLIP, OIL SEAL

26H-23156-00-00

$7.99

32

METAL, SLIDE 1

4FM-23125-40-00

$33.99

33

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

34

. SPINDLE, TAPER

4V4-23173-L0-00

Unavailable

35

. BOLT, CAP

43F-23111-10-00

Unavailable

36

O-RING

43F-23188-10-00

$7.99

37

O-RING

3J2-23147-00-00

$9.99

38

AIR VALVE COMP.

4V4-23190-L0-00

Unavailable

39

CAP, AIR VALVE

509-23184-L0-00

Unavailable

40

GASKET

4V4-23158-L0-00

Unavailable

41

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

42

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

43

NUT(6TA)

95317-06600-00

Unavailable

44

WASHER, SPRING

92995-06100-00

Unavailable

45

HOLDER, AXLE

4V2-23167-L0-00

Unavailable

46

BOLT

4V4-23181-L0-00

Unavailable

47

SPACER

(43F-23118-10-00)

Unavailable

48

BAND

3LD-23489-00-00

Unavailable

49

BOOT (CHAPPY RED)

43F-23191-11-00

Unavailable

50

BAND

43M-23192-L0-00

Unavailable

51

SCREW, PAN HEAD

98507-04018-00

Unavailable

52

UNDER BRACKET

43F-23340-30-39

Unavailable

53

BOLT (1E6)

90101-08340-00

Unavailable

54

.. WASHER, PLATE

92990-08600-00

Unavailable

55

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

56

NUT(6L2)

95333-08600-00

Unavailable
