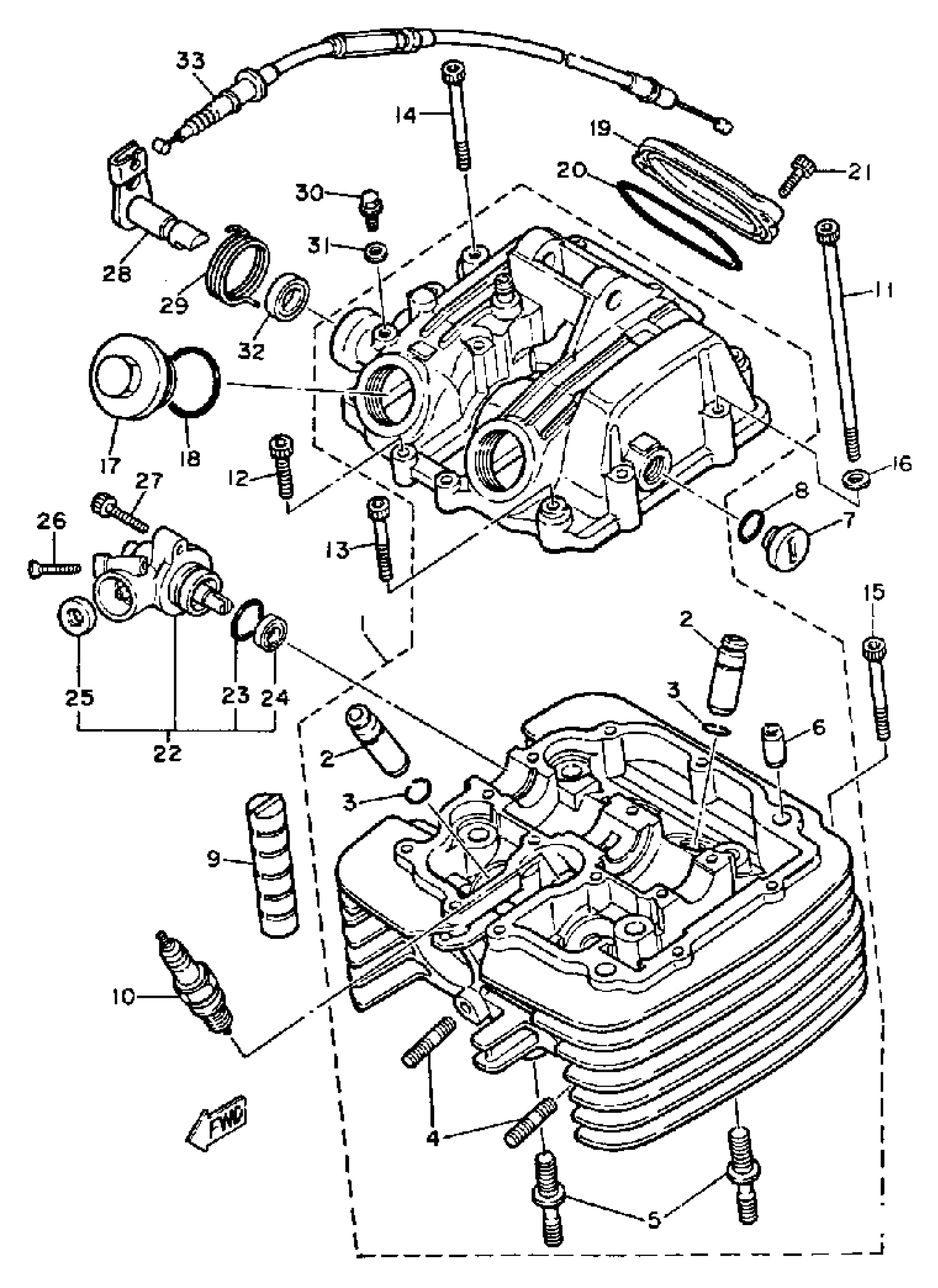

Yamaha XT600LC (XT600 CA) 1984 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY (34L-11101-00)

34L-11101-01-00

Unavailable

2

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT, STUD(1JK)

90116-06475-00

$8.49

5

. BOLT, STUD

90116-10378-00

Unavailable

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

PLUG, STRAIGHT SCREW (5Y1)

90340-14079-00

Unavailable

8

O-RING (2H9)

93210-14369-00

$7.49

9

ABSORBER

583-11127-00-00

$7.99

10

DP8EA9 NGK SPLUG 10PK

DP8-EA900-00-00

Unavailable

11

BOLT, SOCKET

91317-06125-00

$17.99

12

BOLT,SOCKET

91317-06025-00

$5.60

13

BOLT,SOCKET

91317-06040-00

$3.76

14

BOLT,SOCKET

91317-06055-00

$4.19

15

BOLT,SOCKET

91317-06050-00

$3.88

16

WASHER(6TA)

92907-06600-00

Unavailable

17

PLUG, VIEWER

1H2-11186-00-00

Unavailable

18

O-RING (341)

93210-32172-00

Unavailable

19

COVER, CYLINDER HEAD SIDE 3

5Y1-11187-00-00

Unavailable

20

O-RING (4X7)

93210-62446-00

Unavailable

21

BOLT,SOCKET

91317-06018-00

Unavailable

22

GEAR UNIT ASSY, TACHO. DRIVE

3YF-17800-00-00

Unavailable

23

O-RING (5Y1)

93210-19522-00

Unavailable

24

OIL SEAL (5Y1)

93102-11262-00

Unavailable

25

OIL SEAL (5Y1)

93102-07261-00

Unavailable

26

SCREW, FLAT

98707-06030-00

Unavailable

27

BOLT,SOCKET

91317-06025-00

$5.60

28

CAM, DECOMPRESSION

1JK-12288-00-00

Unavailable

29

SPRING, TORSION (5Y1)

90508-18551-00

Unavailable

30

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

31

GASKET 256113960000

90430-06014-00

Unavailable

32

SEAL, OIL (30X)

93102-12321-00

Unavailable

33

CABLE, DECOMPRESSION

2KF-12292-00-00

Unavailable
