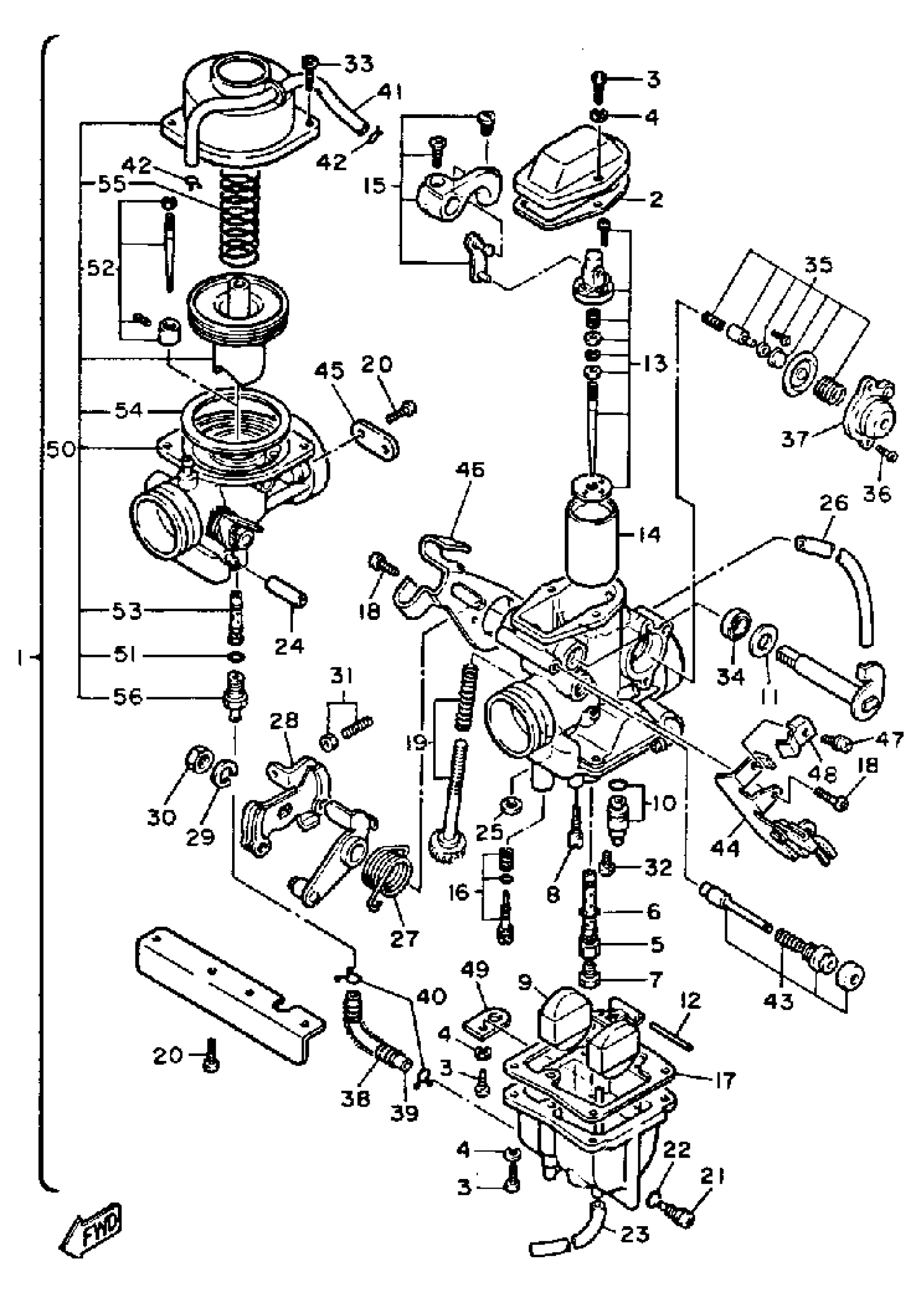

Yamaha XT600LC (XT600 CA) 1984 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

49N-14301-01-00

Unavailable

1

CARBURETOR ASY 1

49R-14301-01-00

Unavailable

2

GASKET

5Y1-14198-00-00

$7.99

3

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

4

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

5

. NOZZLE, MAIN

43F-14341-00-00

Unavailable

6

GASKET

360-24512-00-00

$9.99

7

JET, MAIN (# 130)

288-14343-65-00

$10.99

8

JET, PILOT (#46)

43F-14342-23-00

Unavailable

9

FLOAT

5Y1-14385-00-00

$89.99

10

NEEDLE VALVE SET

1JK-14107-01-00

$39.99

11

. WASHER, PLAIN

5Y1-14357-00-00

Unavailable

12

. PIN, FLOAT

6E5-14386-01-00

Unavailable

13

. NEEDLE SET

34K-1490J-10-00

Unavailable

14

. VALVE, THROTTLE 1

5Y1-14312-55-00

Unavailable

15

. CABLE CONNECT SET

5Y1-14203-00-00

Unavailable

16

PILOT SCREW SET

50M-14105-00-00

Unavailable

17

GASKET, FLOAT CHAMBER

5Y1-14384-00-00

Unavailable

18

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

19

. THROTTLE SCREW SET

34K-14103-00-00

Unavailable

20

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

21

PLUG, SCREW

5Y1-14115-00-00

Unavailable

22

O-RING

5Y1-14397-00-00

Unavailable

23

PIPE

5Y1-14396-00-00

Unavailable

24

PIPE

5Y1-14349-00-00

Unavailable

25

GASKET

5Y1-14536-00-00

Unavailable

26

PIPE

5Y1-14197-00-00

Unavailable

27

. SPRING, THRTL VALVE

5Y1-14131-00-00

Unavailable

28

. THROTTLE LVR COMP

34K-14305-00-00

Unavailable

29

. WASHER, SPRING

5Y1-14356-00-00

Unavailable

30

. NUT

5Y1-14358-00-00

Unavailable

31

. STOP SCREW SET

34K-1490K-00-00

Unavailable

32

SCREW, BIND(6L2)

98980-04006-00

Unavailable

33

. SCREW, PAN HEAD

98580-04020-00

Unavailable

34

O-RING

5Y1-14572-00-00

Unavailable

35

DIAPHRAGM SET 1

5Y1-1490A-00-00

Unavailable

36

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

37

. COVER 1

5Y1-14293-01-00

Unavailable

38

. SPRING

5Y1-14556-00-00

Unavailable

39

. PIPE

5Y1-14148-00-00

Unavailable

40

. CLIP

5Y1-14137-00-00

Unavailable

41

PIPE

5Y1-14149-00-00

Unavailable

42

CLIP

5Y1-14159-00-00

Unavailable

43

. STARTER SET

5Y1-1410A-00-00

Unavailable

44

. LEVER, STARTER

34L-14905-00-00

Unavailable

45

PLATE

(34K-14146-00-00)

Unavailable

46

BRACKET, THROTTLE

(34K-14571-00-00)

Unavailable

47

SCREW

677-24444-09-00

Unavailable

48

. STOPPER

5Y1-14377-00-00

Unavailable

49

PLATE

42U-14146-00-00

Unavailable

50

CARB ASSEMBLY 2

(43F-14320-00-00)

Unavailable

51

GASKET

360-24512-00-00

$9.99

52

.. NEEDLE SET

43F-1490J-01-00

Unavailable

53

. NOZZLE, MAIN

5Y1-14355-00-00

Unavailable

54

GASKET

5Y1-14398-00-00

Unavailable

55

. SPRING

5Y1-14286-00-00

Unavailable

56

. JET, MAIN 125

5Y1-14343-63-00

Unavailable

56

.. JET, MAIN (130)

5Y1-14343-65-00

Unavailable
