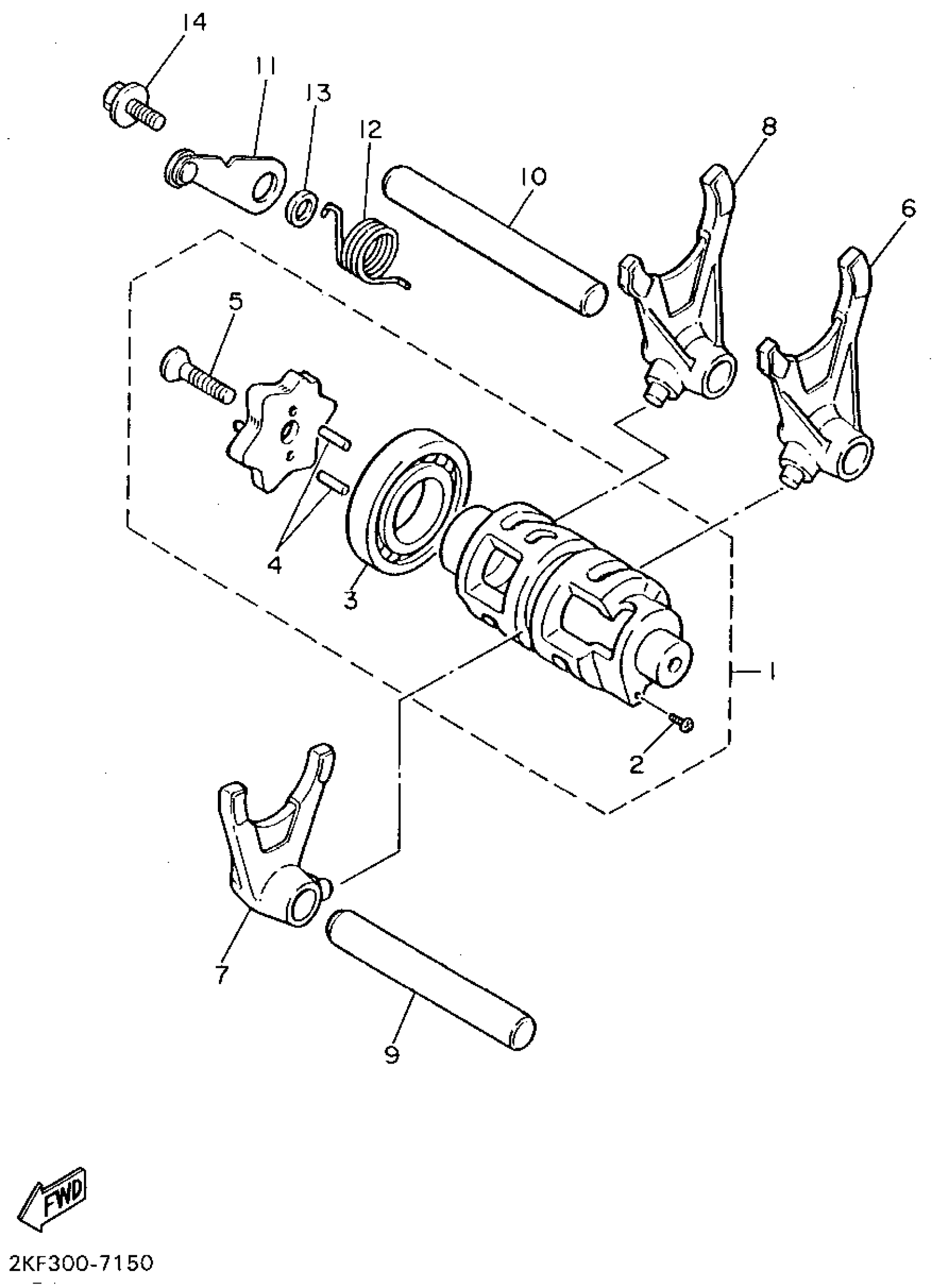

Yamaha XT600EGC (XT600E CA) 1995 SHIFT CAM SHIFT FORK Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

3YF-18540-00-00

Unavailable

2

POINT,NEUTRAL (150610)

136-18542-00-00

$6.99

3

BRG. (256)

93316-00501-00

$33.99

4

PIN,DOWEL (603)

93604-10011-00

$8.49

5

. SCREW, COUNTERSUNK

90151-06017-00

Unavailable

6

FORK, SHIFT 1

4PT-18511-00-00

Unavailable

7

FORK, SHIFT 2

4PT-18512-00-00

Unavailable

8

FORK, SHIFT 3

4PT-18513-00-00

Unavailable

9

BAR, SHIFT FORK GUIDE 1

3YF-18531-00-00

Unavailable

10

BAR, SHIFT FORK GUIDE 2

3XV-18535-00-00

Unavailable

11

STOPPER LEVER ASSEMBLY

2KF-18140-00-00

Unavailable

12

SPRING, TORSION(1JK)

90508-26691-00

Unavailable

13

COLLAR (5Y1)

90387-063F7-00

$8.49

14

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49
