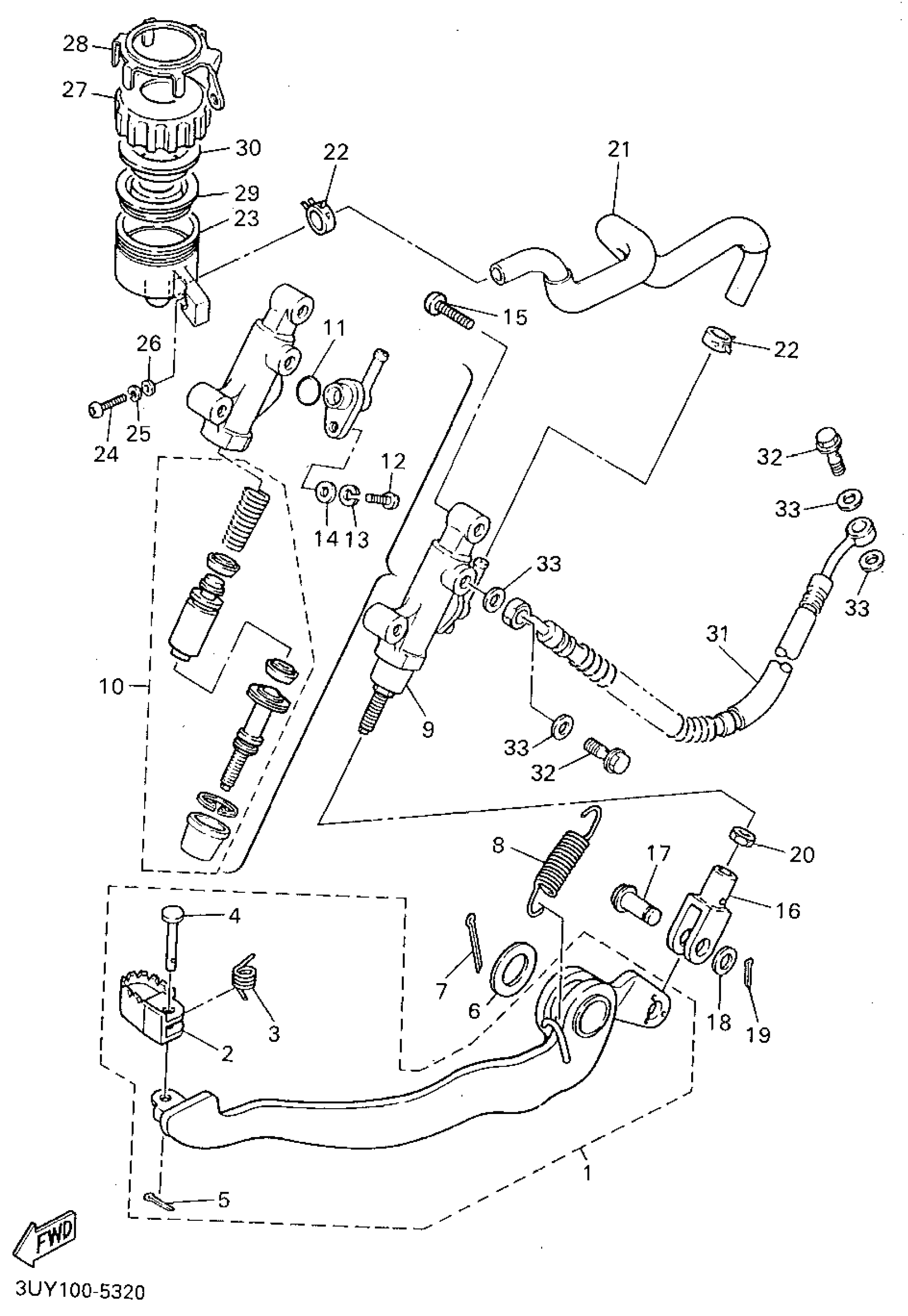

Yamaha XT600EGC (XT600E CA) 1995 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

3TB-27200-02-00

Unavailable

2

PEDAL, BRAKE

55V-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER

91490-20025-00

$1.99

6

WASHER PLATE 148272190000

90201-14215-00

$10.49

7

PIN COTTER

91490-30025-00

$3.99

8

SPRING, TENSION(3TB)

90507-18055-00

Unavailable

9

RR. MASTER CYLINDER ASSEMBLY.

3TB-2583V-00-00

Unavailable

10

CYLINDER KIT, REAR MASTER

31A-W0042-50-00

Unavailable

11

O-RING (22U)

93210-15566-00

$7.49

12

SCREW, PAN HEAD

98517-04012-00

$3.88

13

WASHER(6TA)

92907-04100-00

$8.49

14

WASHER(JF2)

92907-04600-00

$1.71

15

BOLT, BUTTON

92017-08025-00

$8.49

16

JOINT

47X-27222-00-00

Unavailable

17

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

18

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

19

PIN, COTTER

91490-16020-00

Unavailable

20

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

21

HOSE, RESERVOIR

3TB-25895-00-00

Unavailable

22

CLIP (5K4)

90467-14057-00

Unavailable

23

TANK, RESERVOIR

47X-25894-00-00

Unavailable

24

SCREW, PAN

98517-06020-00

Unavailable

25

WASHER, SPRING

92907-06100-00

Unavailable

26

WASHER(6TA)

92907-06600-00

Unavailable

27

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

28

COVER, RESERVOIR TANK

3AJ-25888-00-00

Unavailable

29

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

30

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

31

HOSE, BRAKE 2

3TB-25873-02-00

Unavailable

32

BOLT, UNION(3GM)

90401-10159-00

Unavailable

33

WASHER, PLATE(481)

90201-10118-00

Unavailable
