1995 Yamaha XT600E CA (XT600EGC) Rear ARM Diagram

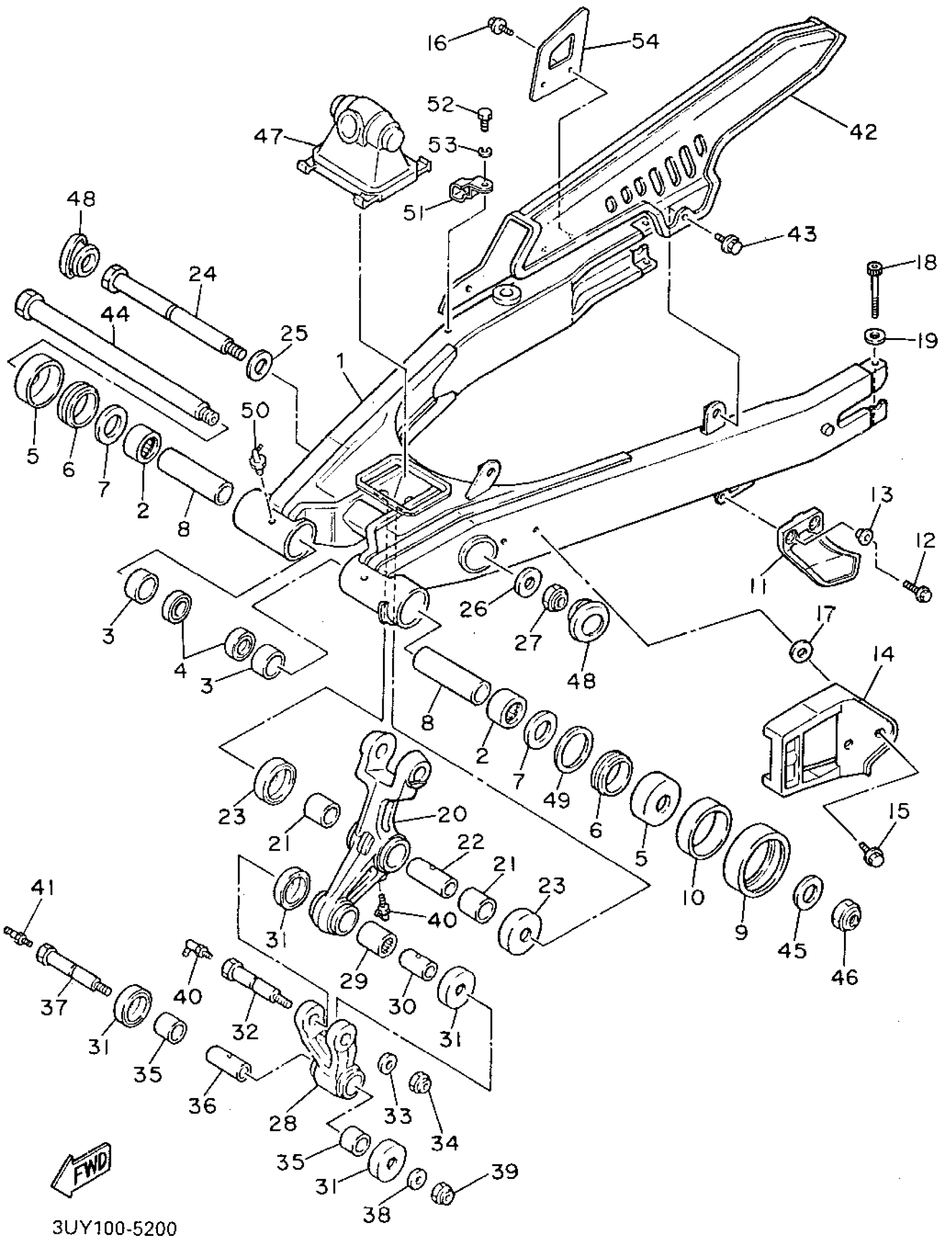

Find the part on the Rear ARM diagram for your 1995 Yamaha XT600E CA (XT600EGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
3
BUSH, SOLID (23X)
90380-22111-00
4
OIL SEAL (23X)
93106-22019-00
7
WASHER
3YF-22149-00-00
11
SUPPORT, CHAIN
38V-22199-00-00
18
BOLT,SOCKET
91317-06060-00
20
ARM, RELAY
3TB-2217A-00-00
21
BUSH (30X)
90386-20120-00
22
BUSH, SOLID
90380-14095-00
23
COVER, THRUST 1
34L-22128-00-00
24
BOLT, WASHER BASED(3RW)
90105-12668-00
25
WASHER, PLATE (90201-14707)
90201-140G9-00
28
ROD, CONNECTING 1
34L-2217F-00-00
32
BOLT
90109-10759-00
33
WASHER, PLATE(6TC)
90201-10M05-00
34
NUT, SELF LOCKING (23X)
90185-10120-00
36
COLLAR (34L)
90387-122J6-00
37
BOLT(2VG)
90109-102G8-00
45
WASHER (525)
90201-15238-00
48
CAP
34L-22117-00-00
49
WASHER, PLATE (5Y1)
90201-251F6-00
51
CLAMP
90461-12110-00
53
WASHER, SPRING
92907-06100-00
54
PROTECTOR
2KF-27491-00-00
