1995 Yamaha XT600E CA (XT600EGC) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1995 Yamaha XT600E CA (XT600EGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

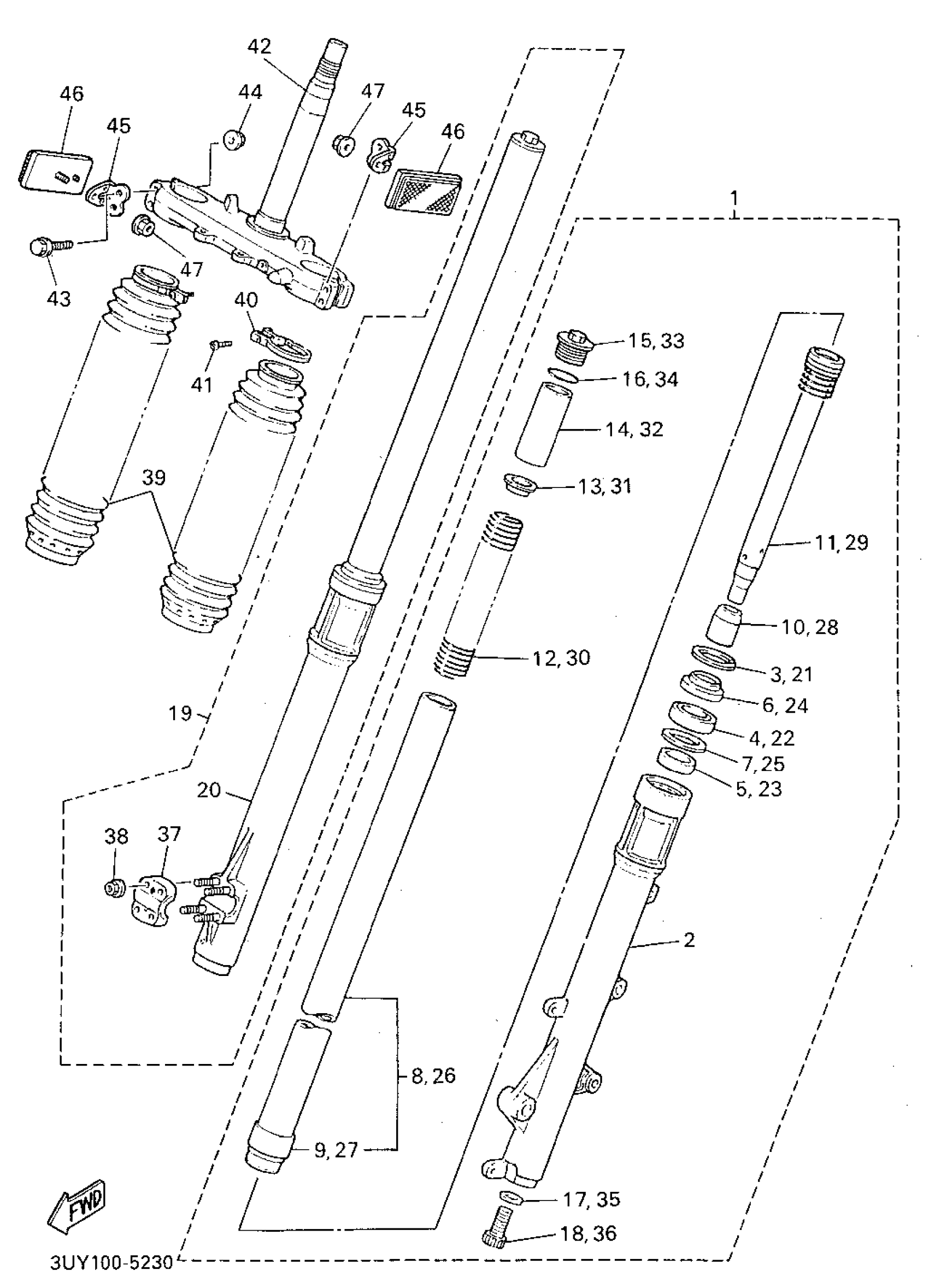

1995 Yamaha XT600E CA (XT600EGC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY (L.H)

3TB-23102-00-00

1
Out of stock

2

. TUBE, OUTER 1

3TB-23126-00-00

1
Out of stock

3

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

4

OIL SEAL

43F-23145-10-00

1

$27.57

In stock

5

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

6

SEAL, DUST

43F-23144-10-00

1

$21.22

In stock

7

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

8

. INNER TUBE COMP 1

3TB-23110-00-00

1
Out of stock

9

.. PISTON, FRONT FORK

3LC-23171-00-00

1
Out of stock

10

SPINDLE, TAPER

3GM-23173-00-00

—
Out of stock

11

. CYLINDER COMP, FRONT FORK

3TB-23170-00-00

1
Out of stock

12

. SPRING, FRONT FORK

3TB-23141-00-00

1
Out of stock

13

. SEAT, SPRING UPPER

43F-23142-10-00

1
Out of stock

14

SPACER

3FW-23118-00-00

1

$18.18

In stock

15

BOLT, CAP

1D0-23111-00-00

—

$43.83

In stock

16

O-RING

43F-23188-10-00

—

$6.43

In stock

17

GASKET

4V4-23158-L0-00

—
Out of stock

18

BOLT

4V4-23181-L0-00

—
Out of stock

19

FRONT FORK ASSEMBLY (R.H)

3TB-23103-00-00

1
Out of stock

20

. TUBE, OUTER 2

3TB-23136-00-00

1
Out of stock

21

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

22

OIL SEAL

43F-23145-10-00

1

$27.57

In stock

23

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

24

SEAL, DUST

43F-23144-10-00

1

$21.22

In stock

25

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

26

. INNER TUBE COMP 1

3TB-23110-00-00

1
Out of stock

27

.. PISTON, FRONT FORK

3LC-23171-00-00

1
Out of stock

28

SPINDLE, TAPER

3GM-23173-00-00

—
Out of stock

29

. CYLINDER COMP, FRONT FORK

3TB-23170-00-00

1
Out of stock

30

. SPRING, FRONT FORK

3TB-23141-00-00

1
Out of stock

31

. SEAT, SPRING UPPER

43F-23142-10-00

1
Out of stock

32

SPACER

3FW-23118-00-00

1

$18.18

In stock

33

BOLT, CAP

1D0-23111-00-00

—

$43.83

In stock

34

O-RING

43F-23188-10-00

—

$6.43

In stock

35

GASKET

4V4-23158-L0-00

—
Out of stock

36

BOLT

4V4-23181-L0-00

—
Out of stock

37

HOLDER, AXLE

4V2-23167-L0-00

—
Out of stock

38

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

39

BOOT (BLACK)

3TB-23191-11-00

—

$41.79

In stock

40

BAND

43M-23192-L0-00

—
Out of stock

41

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

42

UNDER BRACKET COMP.

3TB-23340-00-00

1
Out of stock

43

BOLT, FLANGE

95817-08055-00

—

$2.82

In stock

44

NUT, FLANGE

95704-08500-00

—
Out of stock

45

BRACKET, REFLECTOR 1

49R-85112-00-00

—

$19.26

In stock

46

FRONT REFLECTOR ASSY

23V-85110-00-00

—

$21.52

In stock

47

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock
