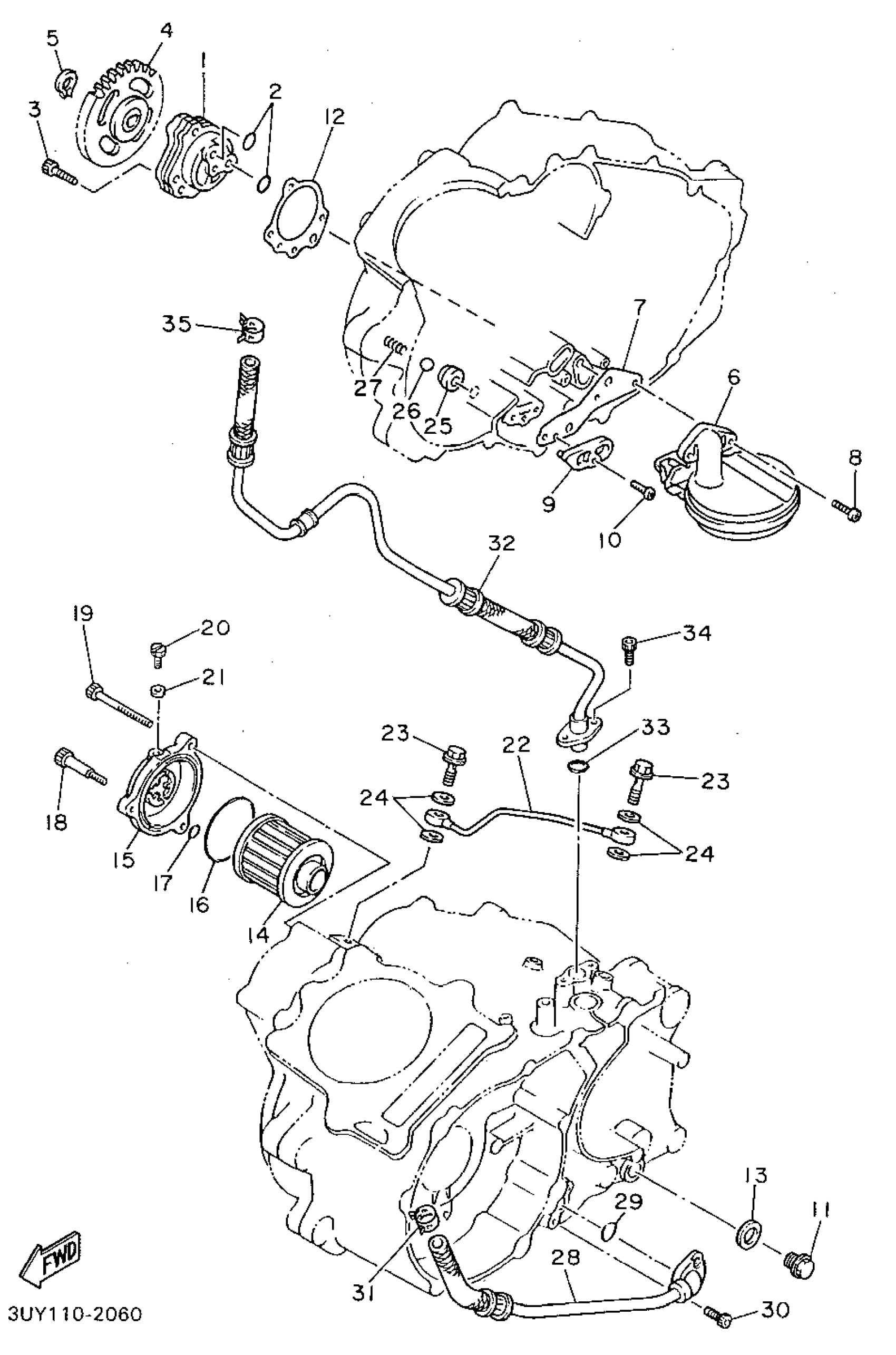

Yamaha XT600EGC (XT600E CA) 1995 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSY
3AJ-13300-01-00
Unavailable
3
BOLT,SOCKET
91317-06035-00
Unavailable
6
STRAINER ASSY.
5Y1-Y134C-00-00
Unavailable
7
SEAL, OIL STRAINER
4DW-13415-00-00
Unavailable
9
COVER, CAP 2
5Y1-15427-10-00
Unavailable
12
GASKET, PUMP COVER
3SX-13329-00-00
Unavailable
15
COVER, OIL ELEMENT
2WK-13447-00-00
Unavailable
16
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
17
O-RING (583 OIL DRAIN BOLT)
93210-07135-00
Unavailable
18
BOLT (583 OIL DRAIN)
90109-06419-00
Unavailable
19
BOLT,SOCKET
91317-06080-00
Unavailable
20
SCREW (583)
90149-05110-00
Unavailable
21
GASKET
90430-05126-00
Unavailable
22
PIPE, DELIVERY 1
3AJ-13161-01-00
Unavailable
23
BOLT, UNION(3AJ)
90401-08133-00
Unavailable
24
GASKET(3AJ)
90430-08204-00
Unavailable
25
SEAT, CHECK BALL
583-13113-00-00
Unavailable
26
BALL
93503-08007-00
Unavailable
27
SPRING, COMPRESSION(1VJ)
90501-043E0-00
Unavailable
28
HOSE, OIL 1
3TB-13464-00-00
Unavailable
29
O-RING (371)
93210-10197-00
Unavailable
30
BOLT,SOCKET
91317-06016-00
Unavailable
31
HOSE CLAMP ASSY(64X)
90450-22M14-00
Unavailable
32
HOSE, OIL 2
3TB-13465-00-00
Unavailable
33
O-RING (341)
93210-15171-00
Unavailable
34
BOLT,SOCKET
91317-06016-00
Unavailable
35
HOSE CLAMP ASSY(64X)
90450-22M14-00
Unavailable
