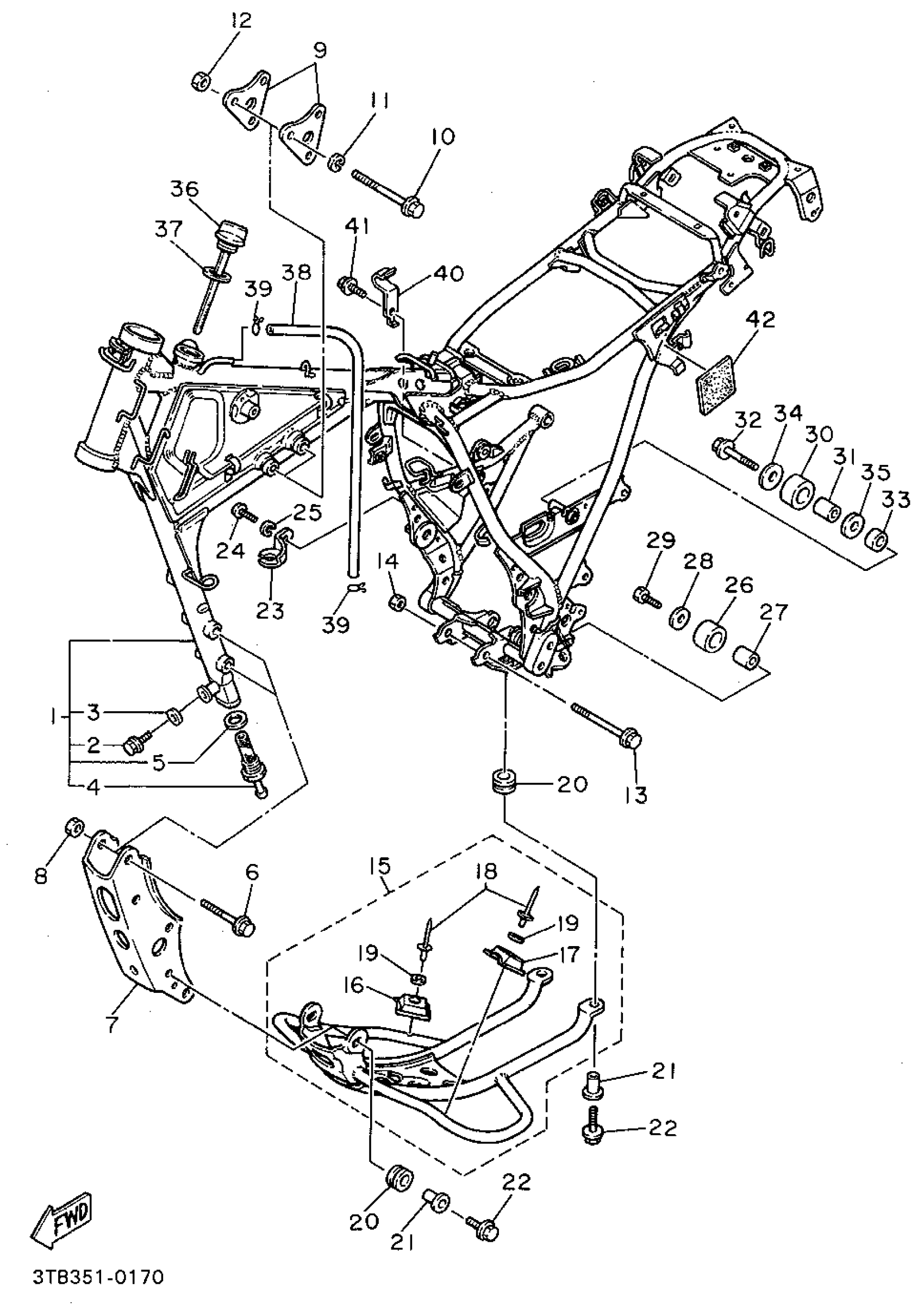

1995 Yamaha XT600E CA (XT600EGC) Frame Diagram
Find the part on the Frame diagram for your 1995 Yamaha XT600E CA (XT600EGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME
3YP-21110-01-WL
9
STAY, ENGINE 2
34L-21315-00-00
13
BOLT, FLANGE(4MY)
95817-10100-00
15
PROTECTOR, ENGINE
3TB-W2147-00-WL
16
DAMPER, RUBBER 1
34K-21485-00-00
17
DAMPER 2
34K-21486-00-00
18
RIVET,BLIND
90267-40080-00
23
BRACKET, STOP SWITCH
5Y1-21441-00-00
25
WASHER, SPRING
92907-06100-00
28
WASHER, PLATE(8AT)
90201-081R9-00
29
BOLT, FLANGE (3JPE)
95024-08016-00
30
TENSIONER
30X-22178-00-00
34
WASHER, PLATE(8AT)
90201-081R9-00
37
GASKET (583 OIL TANK CAP)
90430-27124-00
38
HOSE
90445-115G3-00
39
CLIP
90467-100A1-00
40
CLAMP
3TB-21338-00-00
42
DAMPER 1
3TB-28415-01-00
