1995 Yamaha XT600E CA (XT600EGC) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1995 Yamaha XT600E CA (XT600EGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

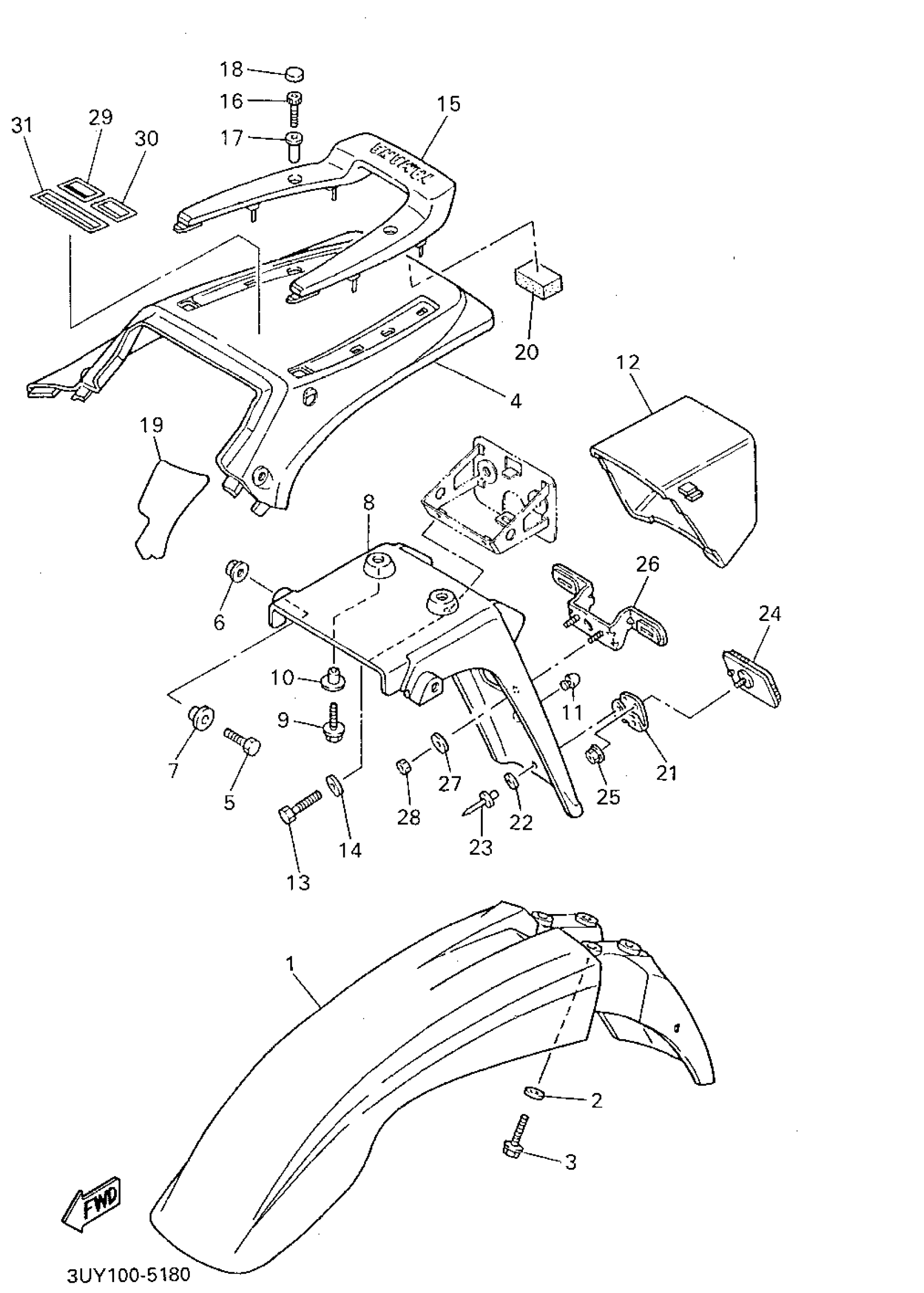

1995 Yamaha XT600E CA (XT600EGC) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

3RW-21511-70-00

1
Out of stock

2

COLLAR(2WG)

90387-062V8-00

1

$3.20

In stock

3

BOLT, WITH WASHER(2WG)

90119-06172-00

1

$5.83

In stock

4

FENDER, REAR

3TB-21611-70-00

1
Out of stock

5

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

6

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

7

COLLAR (3L1)

90387-07717-00

1
Out of stock

8

BRACKET, LICENSE

2KF-21685-01-00

—
Out of stock

9

BOLT, WITH WASHER (10V)

90119-06063-00

1

$6.29

In stock

10

COLLAR

90387-06043-00

1

$6.68

In stock

11

DAMPER 2

42U-21639-00-00

—
Out of stock

12

COVER, REAR FENDER 1

3UY-2163A-00-00

1
Out of stock

13

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

14

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

15

COVER,REAR FENDER

3TB-21651-10-00

1
Out of stock

16

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock

17

COLLAR

90387-062M3-00

1
Out of stock

18

PLUG, TAPER

90336-18059-00

1
Out of stock

19

INSULATOR, SIDE COVER 2

3TB-2174T-00-00

1
Out of stock

20

DAMPER, HEADLIGHT (2XJ-84345-00-00)

5X4-14462-00-00

1
Out of stock

21

BRACKET, REFLECTOR 1

33G-85132-02-00

—

$9.72

In stock

22

WASHER, PLATE(26H)

90201-044H9-00

—

$6.68

In stock

23

RIVET, BLIND (J17)

90267-40090-00

—

$3.78

In stock

24

REAR REFLECTOR ASSY

4KM-85130-00-00

—

$20.34

In stock

25

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock

26

BRACKET, LICENSE

3UY-84751-00-00

1
Out of stock

27

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

28

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

29

LABEL, CAUTION

3TB-24877-00-00

1
Out of stock

30

LABEL 1

3MX-24875-00-00

1
Out of stock

31

LABEL, CAUTION

3JJ-28446-00-00

1
Out of stock
