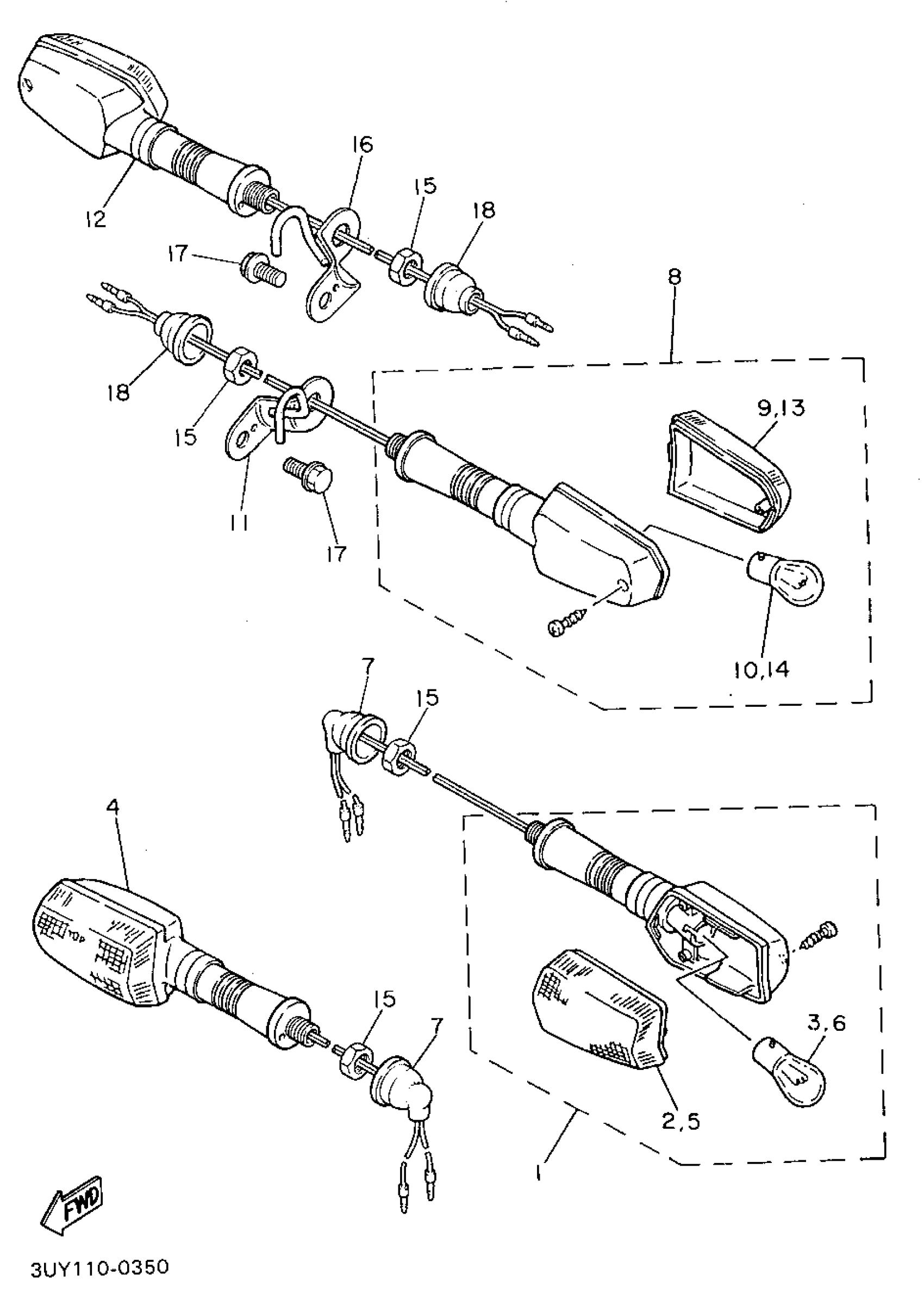

Yamaha XT600EGC (XT600E CA) 1995 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

1UF-83310-00-00

$135.99

2

LENS, FLASHER

51L-83332-01-00

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

FRONT FLASHER LIGHT ASSY 2

1UF-83320-00-00

$135.99

5

LENS, FLASHER 2

51L-83342-01-00

$11.99

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

7

CAP

18G-83365-00-00

$19.99

8

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

9

LENS, FLASHER 2

51L-83342-01-00

$11.99

10

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

11

STAY, FLASHER 1

3TB-83368-00-00

Unavailable

12

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

$134.99

13

LENS, FLASHER

51L-83332-01-00

Unavailable

14

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

15

NUT, HEXAGON SMALL

95317-12700-00

$8.49

16

STAY, FLASHER 2

3TB-83369-00-00

Unavailable

17

BOLT, FLANGE

95817-08014-00

Unavailable

18

CAP

10V-83365-01-00

Unavailable
