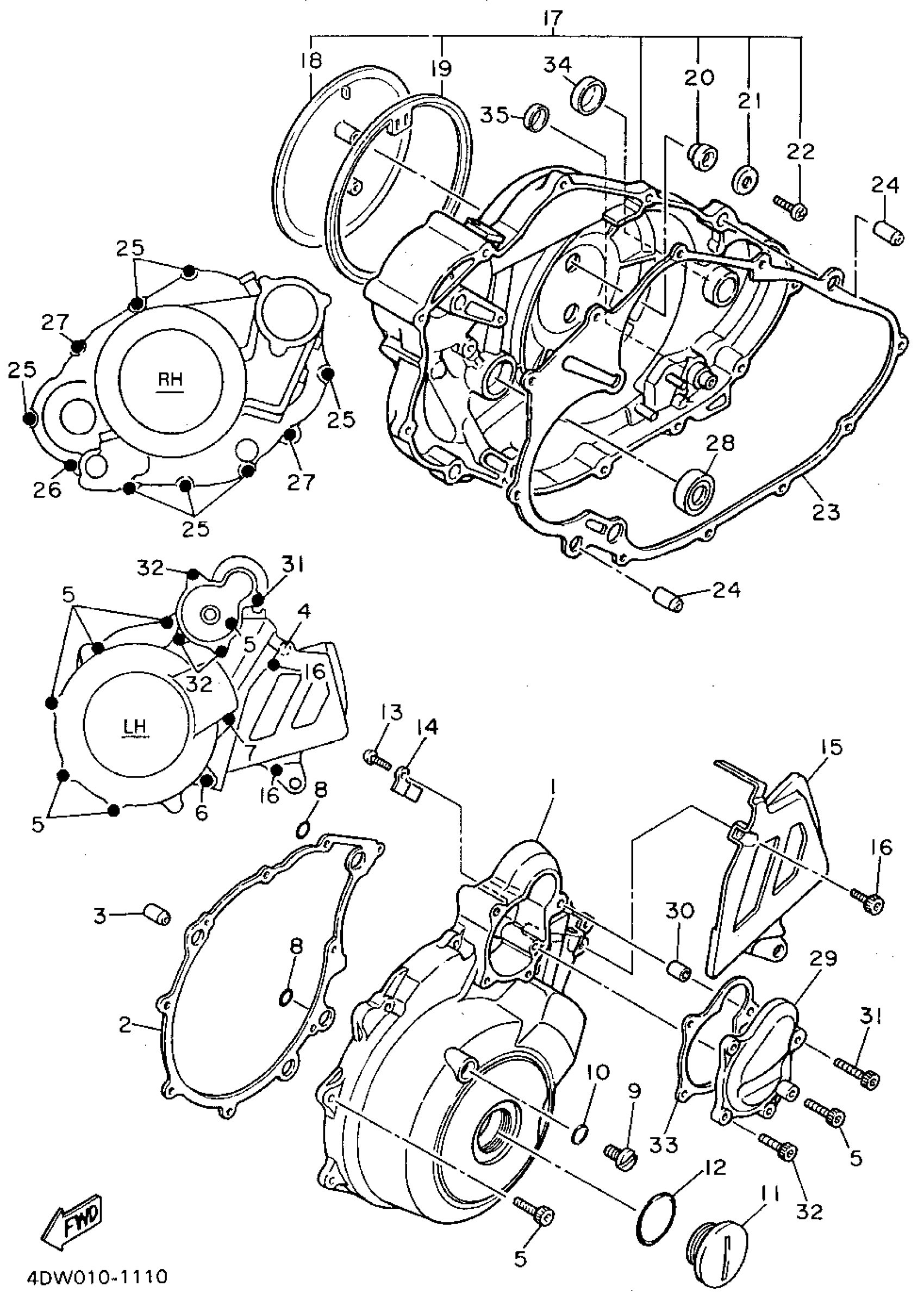

Yamaha XT600EGC (XT600E CA) 1995 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

99999-03436-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4DW-15451-00-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT,SOCKET

91317-06035-00

Unavailable

5

BOLT,SOCKET

91317-06025-00

$5.60

6

BOLT,SOCKET

91317-06050-00

$3.88

7

BOLT,SOCKET

91317-06050-00

$3.88

8

O-RING (2H7)

93210-13361-00

$5.60

9

PLUG, STRAIGHT SCREW

90340-08002-00

Unavailable

10

. GASKET

90430-08143-00

Unavailable

11

PLUG, STRAIGHT SCREW(2WK)

90340-36121-00

$33.99

12

O-RING

93210-35804-00

$0.48

13

SCREW, PAN

98517-06012-00

$3.78

14

CLAMP

90462-16102-00

Unavailable

15

COVER, CRANKCASE 2

3AJ-15421-00-00

Unavailable

16

BOLT,SOCKET

91317-06016-00

Unavailable

17

CRANKCASE COVER ASSEMBLY 3

3DS-15430-00-00

Unavailable

18

. COVER, CHAIN CASE

2WK-15418-01-00

Unavailable

19

. RING, RUBBER

1JK-15449-00-00

Unavailable

20

GROMMET

1JK-15486-00-00

Unavailable

21

. WASHER

90209-05279-00

Unavailable

22

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

23

GASKET, CRANKCASE COVER 3

4DW-15462-00-00

Unavailable

24

PIN, DOWEL

99530-12016-00

$4.89

25

BOLT,SOCKET

91317-06025-00

$5.60

26

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

27

BOLT,SOCKET

91317-06035-00

Unavailable

28

OIL SEAL (3Y1)

93101-14092-00

Unavailable

29

COVER, GENERATOR

3TB-15415-00-00

Unavailable

30

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

31

BOLT,SOCKET

91317-06035-00

Unavailable

32

BOLT,SOCKET

91317-06025-00

$5.60

33

GASKET 1

4DW-15455-00-00

Unavailable

34

PLUG (3L3)

90338-30096-00

Unavailable

35

. PLUG

90338-21100-00

Unavailable
