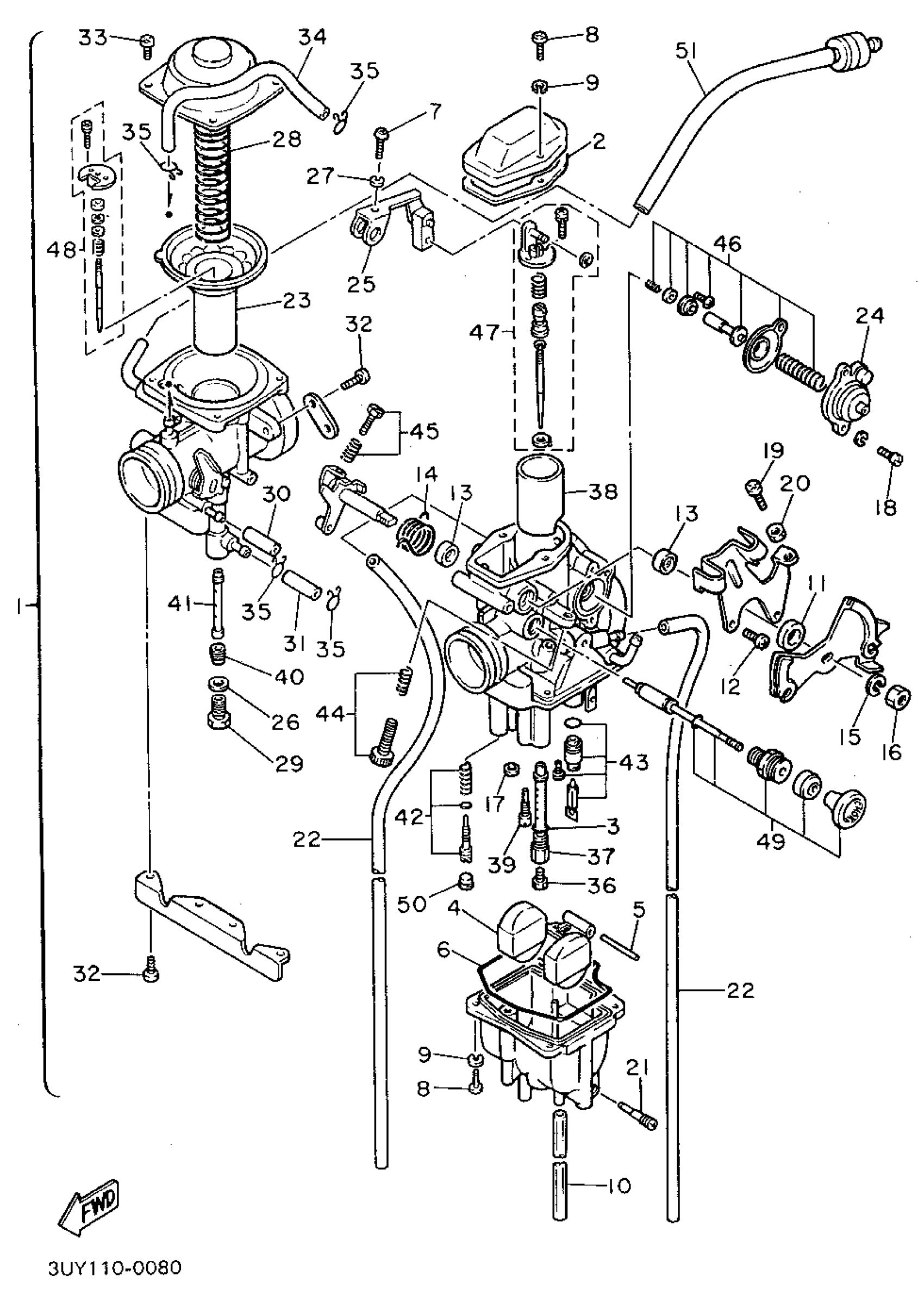

Yamaha XT600EGC (XT600E CA) 1995 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

3UY-14301-05-00

Unavailable

1

CARBURETOR ASSY 1

3UY-14301-15-00

Unavailable

2

GASKET

5Y1-14198-00-00

$7.99

3

GASKET

360-24512-00-00

$9.99

4

FLOAT

25N-14385-00-00

Unavailable

5

. PIN, FLOAT

6E5-14386-01-00

Unavailable

6

GASKET, FLOAT CHAMBER

5Y1-14384-00-00

$25.99

7

SCREW, PANHEAD (796)

98580-04016-00

$8.49

8

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

PIPE

1JK-14197-00-00

$8.99

10

. PIPE

1VJ-14197-00-00

Unavailable

11

. COLLAR

1JK-14357-00-00

Unavailable

12

SCREW, LEVER FITTING

214-24535-00-00

$6.99

13

O-RING

5Y1-14572-00-00

$24.99

14

. SPRING, THROTTLE VALVE

1XL-14131-00-00

Unavailable

15

. WASHER, SPRING

5Y1-14356-00-00

Unavailable

16

. NUT

5Y1-14358-00-00

Unavailable

17

GASKET

5Y1-14536-00-00

Unavailable

18

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

19

. SCREW, PAN HEAD

98580-04020-00

Unavailable

20

NUT

30X-14358-00-00

Unavailable

21

AIR SCREW SET

14T-14104-00-00

Unavailable

22

. PIPE

1VJ-14197-00-00

Unavailable

22

. PIPE

1VJ-14197-00-00

Unavailable

23

DIAPHRAGM ASSY

1JK-14940-01-00

Unavailable

24

. COVER 1

2JN-14293-00-00

Unavailable

25

. CONNECTER COMP

1JK-14291-00-00

Unavailable

26

. WASHER

7KF-14227-00-00

Unavailable

27

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

28

. SPRING

1VJ-14286-00-00

Unavailable

29

. BOLT, HOLDING

7KF-14162-00-00

Unavailable

30

PIPE

5Y1-14349-00-00

Unavailable

31

PIPE

30X-14148-00-00

Unavailable

32

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

33

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

34

PIPE

5Y1-14149-00-00

Unavailable

35

CLIP

5Y1-14159-00-00

Unavailable

36

JET, MAIN (# 120)

288-14343-60-00

Unavailable

36

JET, MAIN (# 130)

288-14343-65-00

Unavailable

36

JET, MAIN (# 140)

288-14343-70-00

Unavailable

37

. NOZZLE, MAIN

3UY-14341-00-00

Unavailable

38

. VALVE, THROTTLE 2

3UY-14313-55-00

Unavailable

39

JET, PILOT (#48)

43F-14342-24-00

Unavailable

40

. JET, MAIN (#104)

30X-14343-52-00

Unavailable

41

. NOZZLE, MAIN 2

2KF-14355-00-00

Unavailable

42

PILOT SCREW SET

51Y-14105-00-00

Unavailable

43

NEEDLE VALVE SET

2JN-14107-00-00

Unavailable

44

. STOP SCREW SET

2NX-1490K-00-00

Unavailable

45

. THROTTLE SCREW SET

2NX-14103-00-00

Unavailable

46

DIAPHRAGM SET, 1

1JK-1490A-00-00

Unavailable

47

. NEEDLE SET

3UY-1490J-10-00

Unavailable

48

. NEEDLE SET

3UY-1490J-00-00

Unavailable

49

PLUNGER, STARTER

2KF-14371-01-00

Unavailable

50

. PLUG

2WJ-14367-00-00

Unavailable

51

PIPE,AIRVENT

3TD-14197-10-00

Unavailable
