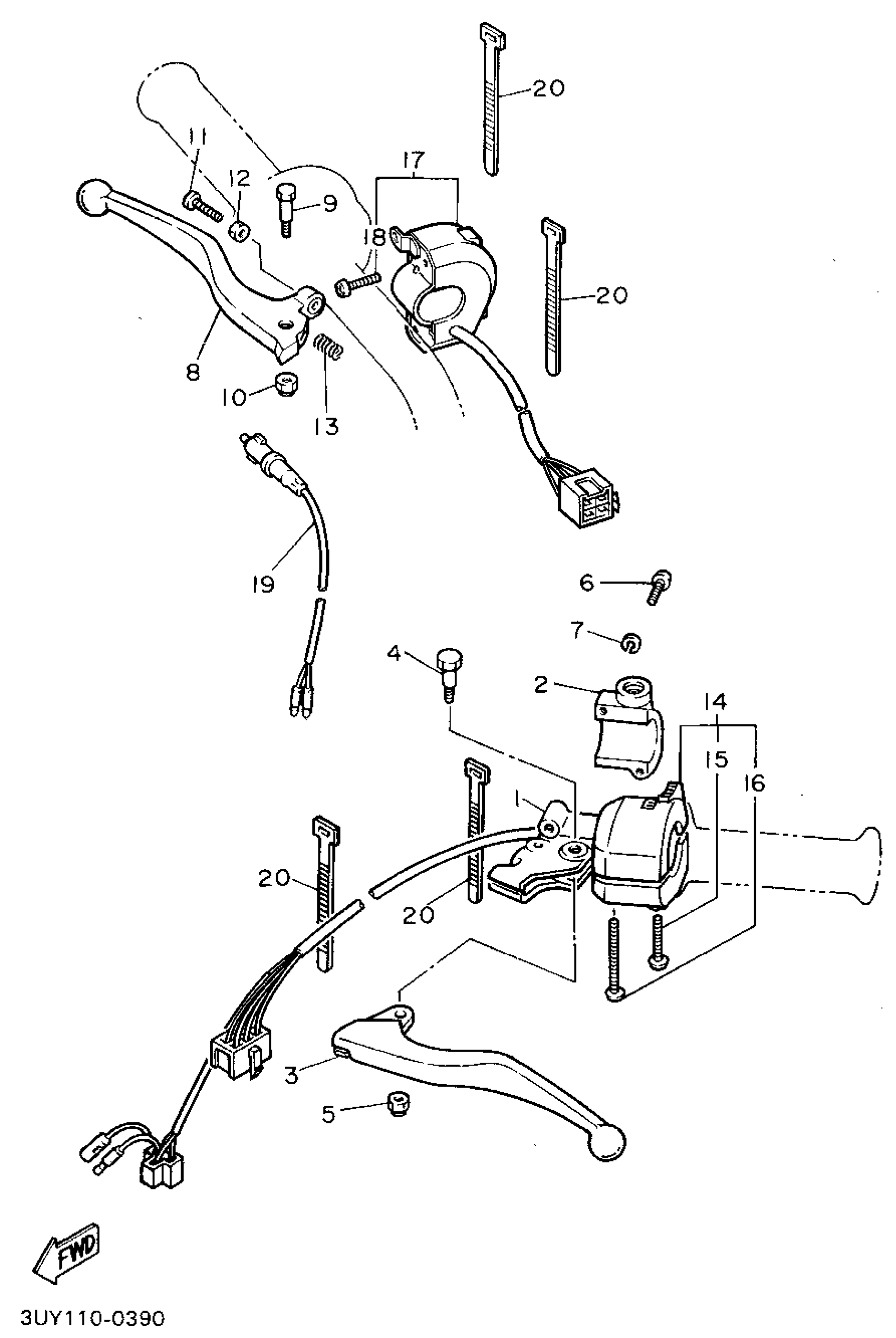

Yamaha XT600EFC (XT600E CA) 1994 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1LN-82911-00-00

$40.99

2

HOLDER, LEVER LOWER 1

33G-82913-01-00

$19.99

3

LEVER 1

3FY-83912-02-00

$28.99

4

BOLT (2YK1)

90109-06799-00

$4.99

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

SCREW, PAN HEAD

98517-05020-00

$4.25

7

WASHER(3SX)

92907-05100-00

$8.49

8

LEVER 2

3YR-83922-02-00

$27.99

9

BOLT(48Y)

90109-062A8-00

$7.49

10

NUT, SELF-LOCKING

95617-06100-00

$8.49

11

SCREW (2L0)

90149-06131-00

$8.49

12

NUT HEXAGON 306839270000

90170-06010-00

$8.49

13

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

14

SWITCH, HANDLE 3

3UY-83973-00-00

Unavailable

15

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

16

SCREW, PAN HEAD

98517-05030-00

Unavailable

17

SWITCH, HANDLE 2

4DW-83975-11-00

Unavailable

18

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

19

FRONT STOP SWITCH ASSY

3YF-83980-00-00

Unavailable

20

BAND, SWITCH CORD

437-83936-01-00

Unavailable
