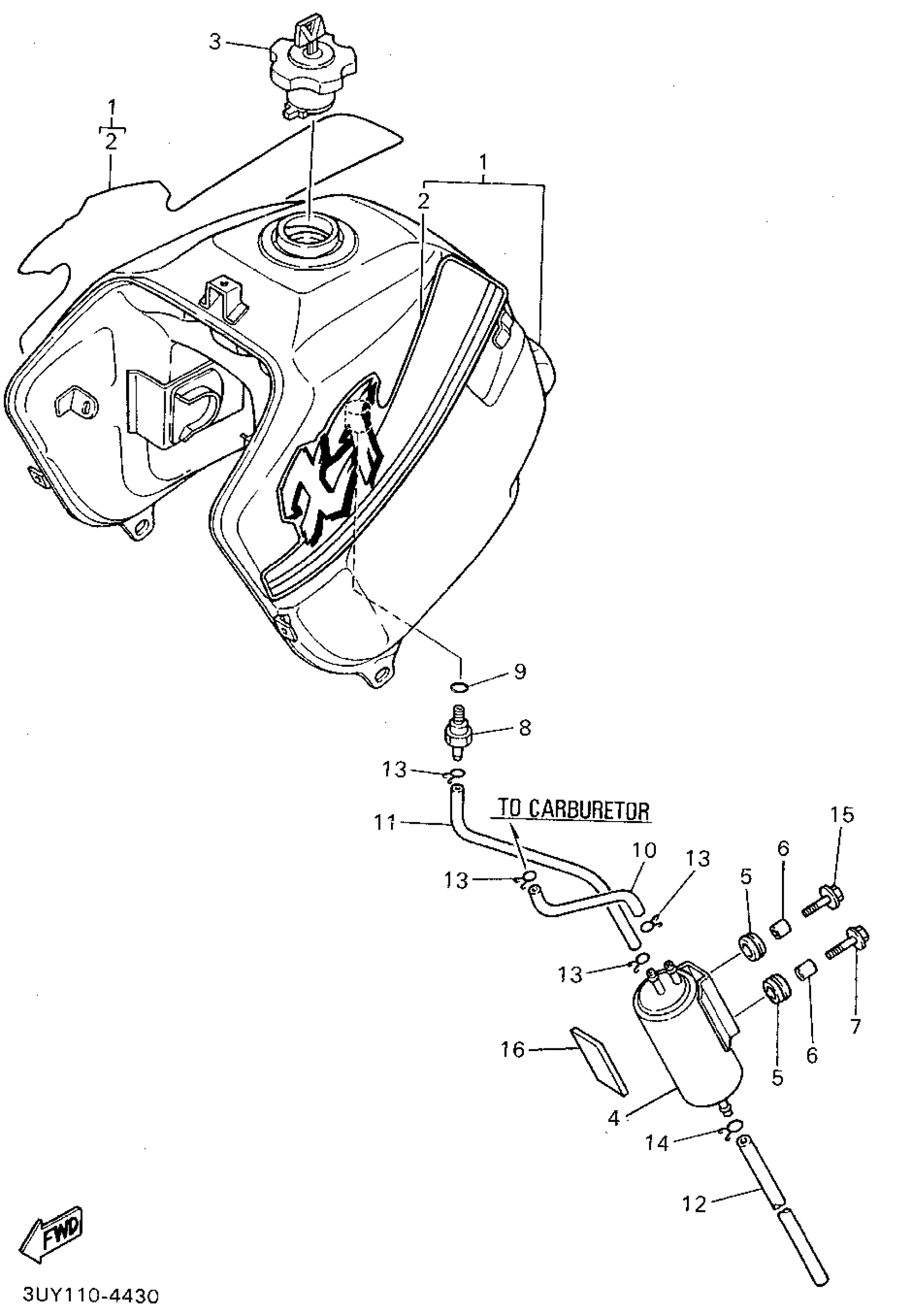

Yamaha XT600EFC (XT600E CA) 1994 FUEL TANK CALIFORNIA MODEL ONLY Diagram

#

Description
Price

1

FUEL TANK COMP.

3UY-24110-00-06

Unavailable

2

. GRAPHIC SET

3TB-24240-A0-00

Unavailable

3

CAP ASSY

51K-24602-10-00

Unavailable

4

CANISTER ASSEMBLY

47M-24170-00-00

Unavailable

5

GROMMET

90480-12529-00

Unavailable

6

COLLAR(47X)

90387-060G7-00

$8.49

7

BOLT, WITH WASHER

90119-06242-00

$7.49

8

ROLL OVER VALVE ASSY

20K-24180-00-00

Unavailable

9

O-RING (4G0)

93210-11453-00

$7.49

10

HOSE

90445-102F4-00

Unavailable

11

HOSE (L590)

90445-10020-00

Unavailable

12

TUBE, FLEXIBLE VINYL(8AK)

91A20-07039-00

$5.60

13

CLIP

90467-090A2-00

$4.41

14

CLIP(1JH)

90467-11106-00

$3.76

15

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

16

DAMPER

22F-2139X-00-00

Unavailable
