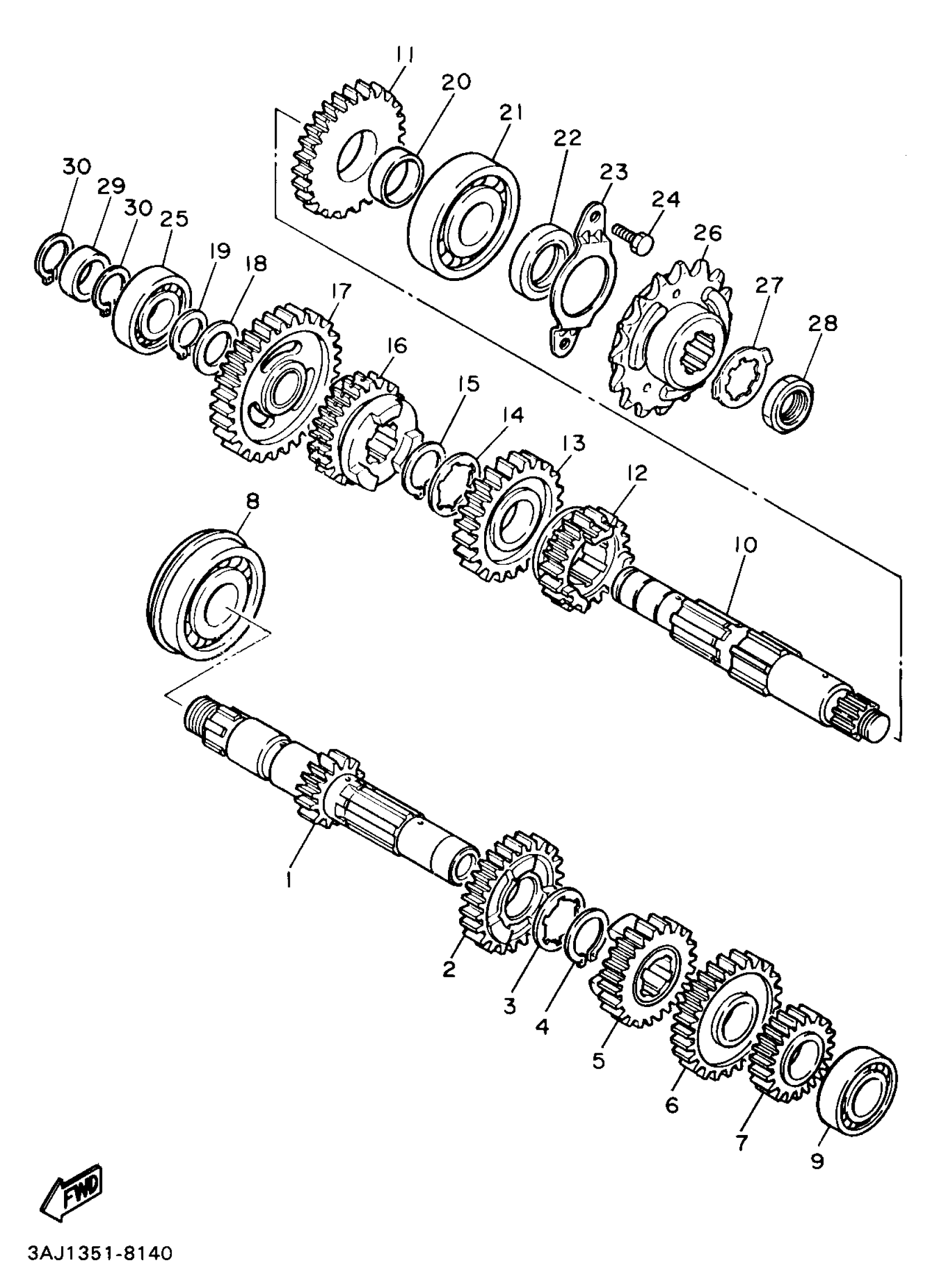

Yamaha XT600EEC (XT600E CA) 3UYA 1993 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (12T)

2RW-17411-00-00

Unavailable

2

GEAR, 4TH PINION

34K-17141-00-00

$76.99

3

WASHER (3J3)

90209-22191-00

$7.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION

1VJ-17131-00-00

$63.99

6

GEAR, 5TH PIPION

2JT-17151-01-00

$136.99

7

GEAR, 2ND PINION

34K-17121-01-00

$35.99

8

BEARING (5Y1)

93306-30540-00

$71.99

9

BEARING (34L)

93306-00431-00

$41.99

10

DRIVE AXLE ASSEMBLY

2RW-17402-00-00

Unavailable

11

GEAR, 2ND WHEEL (27T)

2JT-17221-00-00

Unavailable

12

GEAR, 5TH WHEEL

2JT-17251-00-00

$144.99

13

GEAR, 3RD WHEEL (24T)

1VJ-17231-00-00

Unavailable

14

WASHER (3J3)

90209-22191-00

$7.49

15

CIRCLIP (4L0)

93440-25084-00

$5.60

16

GEAR, 4TH WHEEL (21T)

3AJ-17241-00-00

Unavailable

17

GEAR, 1ST WHEEL (31T)

3AJ-17211-00-00

Unavailable

18

WASHER PLATE 328171160000

90201-20276-00

Unavailable

19

CIRCLIP(1AR)

99009-20400-00

Unavailable

20

SPACER

90560-25283-00

Unavailable

21

BEARING (5Y1)

93306-30535-00

Unavailable

22

OIL SEAL (3Y1)

93102-25226-00

Unavailable

23

PLATE, COVER

5Y1-17471-00-00

Unavailable

24

BOLT(8CP)

97017-06014-00

Unavailable

25

BEARING (5Y1)

93306-00426-00

Unavailable

26

SPROCKET, DRIVE(COLLAR, 2NX)

99999-01798-00

Unavailable

27

WASHER, LOCK(2NX)

90215-23265-00

Unavailable

28

NUT(2NX)

90179-18552-00

Unavailable

29

SPACER

90560-20199-00

Unavailable

30

CIRCLIP(1AR)

99009-20400-00

Unavailable
