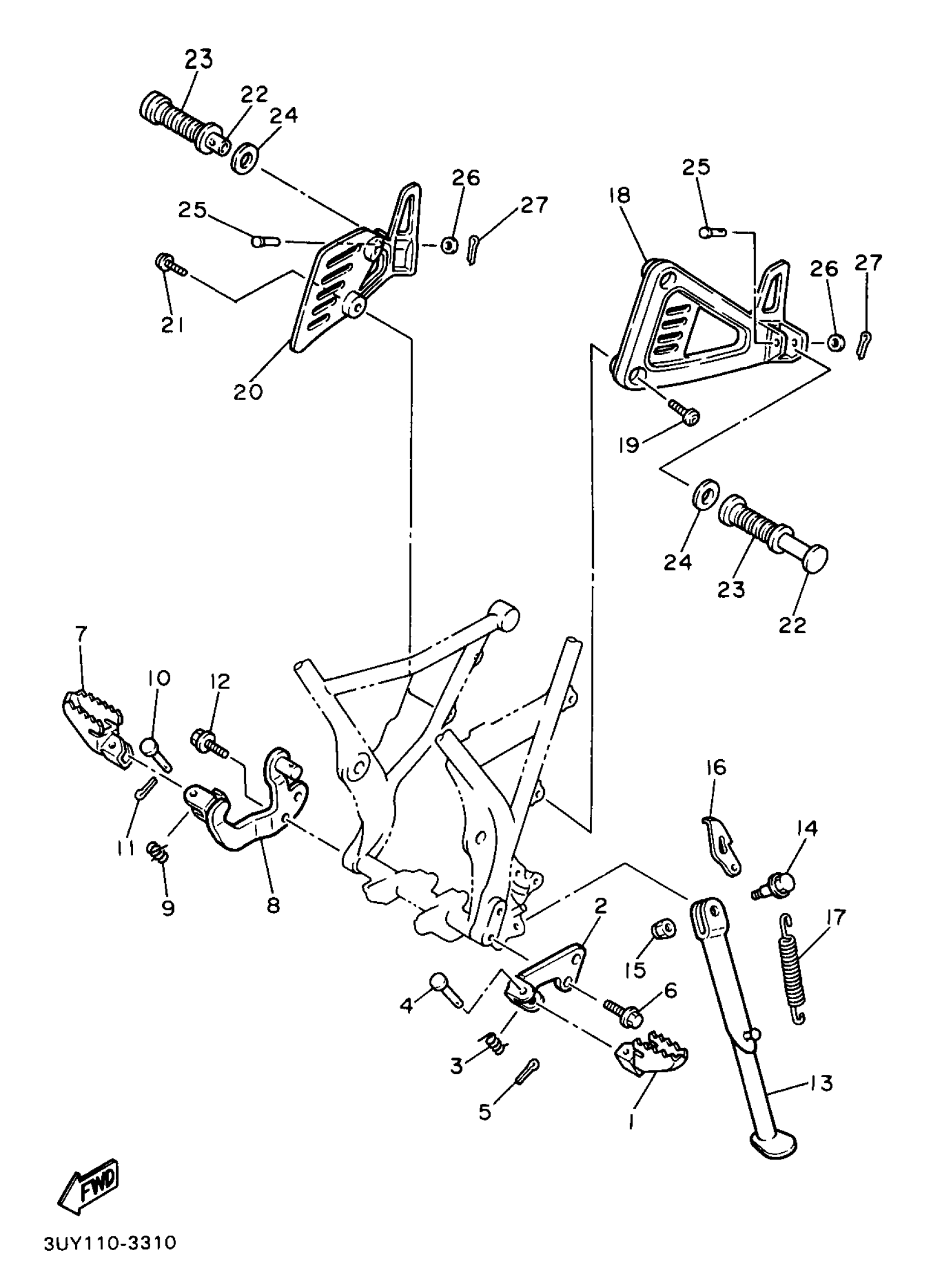

Yamaha XT600EEC (XT600E CA) 3UYA 1993 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

22W-27411-01-90

$28.95

2

BRACKET, FOOTREST 1

34L-27412-00-R4

Unavailable

3

SPRING, TORSION (214-27426-00)

90508-20023-00

$3.05

4

PIN, CLEVIS (2A6)

91701-08038-00

$3.65

5

PIN, COTTER

91490-25020-00

$2.73

6

BOLT, FLANGE(3GD)

95817-10025-00

$5.75

7

FOOTREST 2

22W-27421-01-90

$27.66

8

BRACKET, FOOTREST 2

2KF-27422-00-R4

Unavailable

9

SPRING, TORSION (214-27426-00)

90508-20023-00

$3.05

10

PIN, CLEVIS (2A6)

91701-08038-00

$3.65

11

PIN, COTTER

91490-25020-00

$2.73

12

BOLT, FLANGE(3GD)

95817-10025-00

$5.75

13

STAND, SIDE

3YF-27311-00-00

Unavailable

14

BOLT, WASHER BASED

90105-12616-00

Unavailable

15

NUT, SELF LOCKING (23X)

90185-12119-00

$8.06

16

LINK, SIDE STAND

5Y1-27315-00-00

Unavailable

17

SPRING, TENSION

90507-32020-00

Unavailable

18

BRACKET 4

3TB-2741L-01-00

Unavailable

19

BOLT (3LD)

90109-087F1-00

Unavailable

20

BRACKET 5

3TB-2742L-01-00

Unavailable

21

BOLT (3LD)

90109-087F1-00

Unavailable

22

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

23

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

24

WASHER, PLATE (888)

90201-20279-00

Unavailable

25

PIN, CLEVIS

91702-06038-00

Unavailable

26

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

27

PIN, COTTER

91490-20025-00

Unavailable
