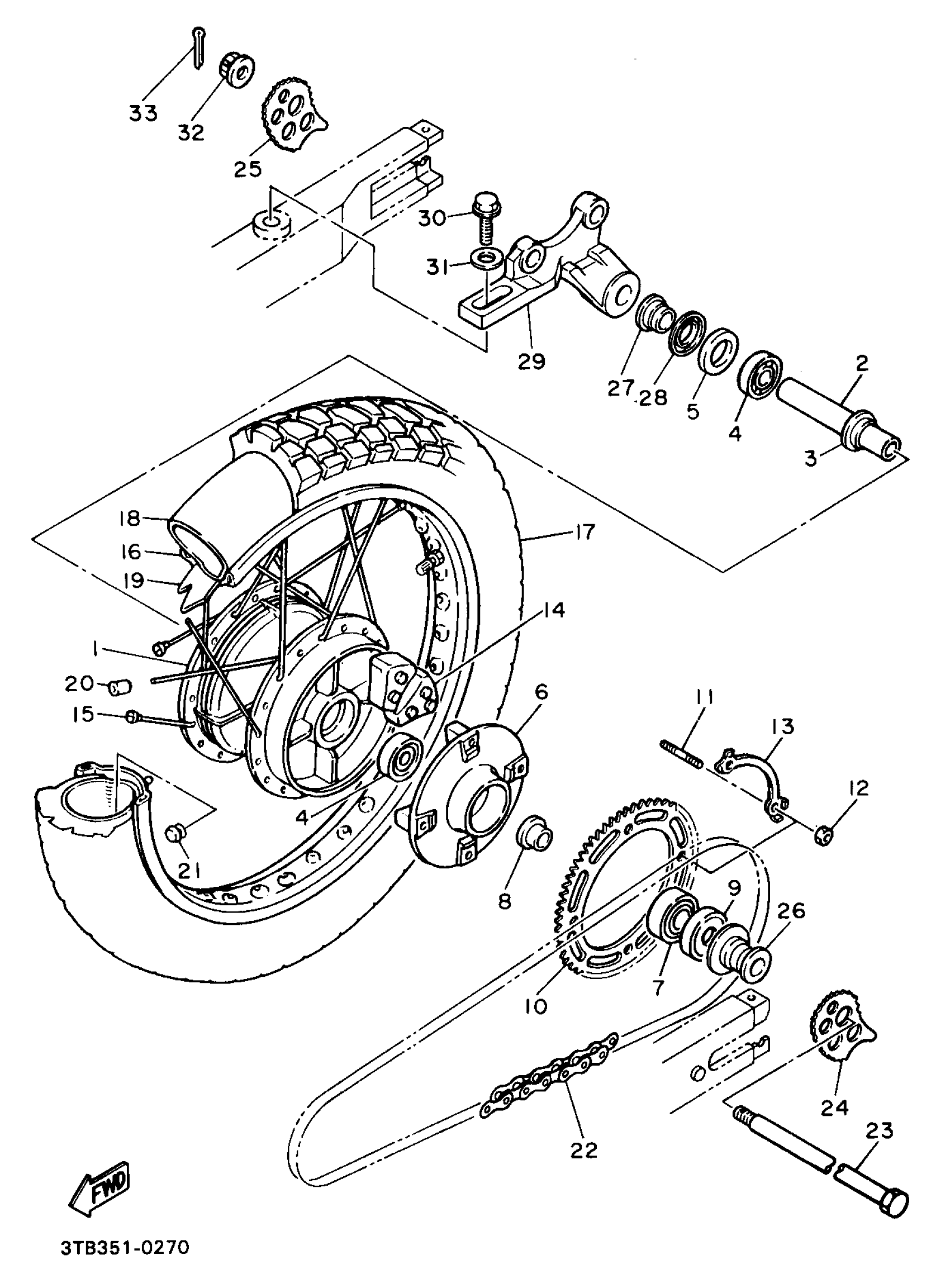

Yamaha XT600EEC (XT600E CA) 3UYA 1993 REAR WHEEL Diagram
#
Description
Price
1
HUB, REAR
2KF-25311-00-98
Unavailable
2
COLLAR(1FN)
90387-173M5-00
Unavailable
5
OIL SEAL(36R)
93102-25311-00
Unavailable
6
CLUTCH, HUB
1VJ-25366-01-98
Unavailable
10
SPROCKET, DRIVEN (45T)
4DN-25445-30-00
Unavailable
13
WASHER
5Y1-25412-00-00
Unavailable
15
SPOKE SET, REAR
3TB-25304-00-00
Unavailable
16
RIM (2.50-17)
94425-17491-00
Unavailable
17
TIRE (MCS 120/90-17 64S TW42B)
94112-173X2-00
Unavailable
18
TUBE (MCS 120/90-17 TR-4)
94212-17264-00
Unavailable
18
TUBE (120/90.130/80-17)
94212-17281-00
Unavailable
19
BAND, RIM (3.25-17) (3Y0)
94332-17112-00
Unavailable
20
BALANCER, WHEEL
3HT-25398-00-00
Unavailable
21
PLUG (10V)
90338-09130-00
Unavailable
22
CHAIN
9Y581-08105-00
Unavailable
23
AXLE, WHEEL
3AJ-25381-00-00
Unavailable
24
PULLER, CHAIN 1
3Y1-25388-01-00
Unavailable
25
PULLER, CHAIN 2
3Y1-25389-00-00
Unavailable
26
COLLAR, WHEEL
1VJ-25383-00-00
Unavailable
27
COLLAR (5X4)
90387-174F0-00
Unavailable
28
COVER, HUB DUST
36R-25367-00-00
Unavailable
29
BRACKET, CALIPER
2KF-25819-00-00
Unavailable
30
BOLT, FLANGE
95817-10030-00
Unavailable
31
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
32
NUT, CASTLE (2H6)
90171-16024-00
Unavailable
33
PIN, COTTER
91490-30030-00
Unavailable
