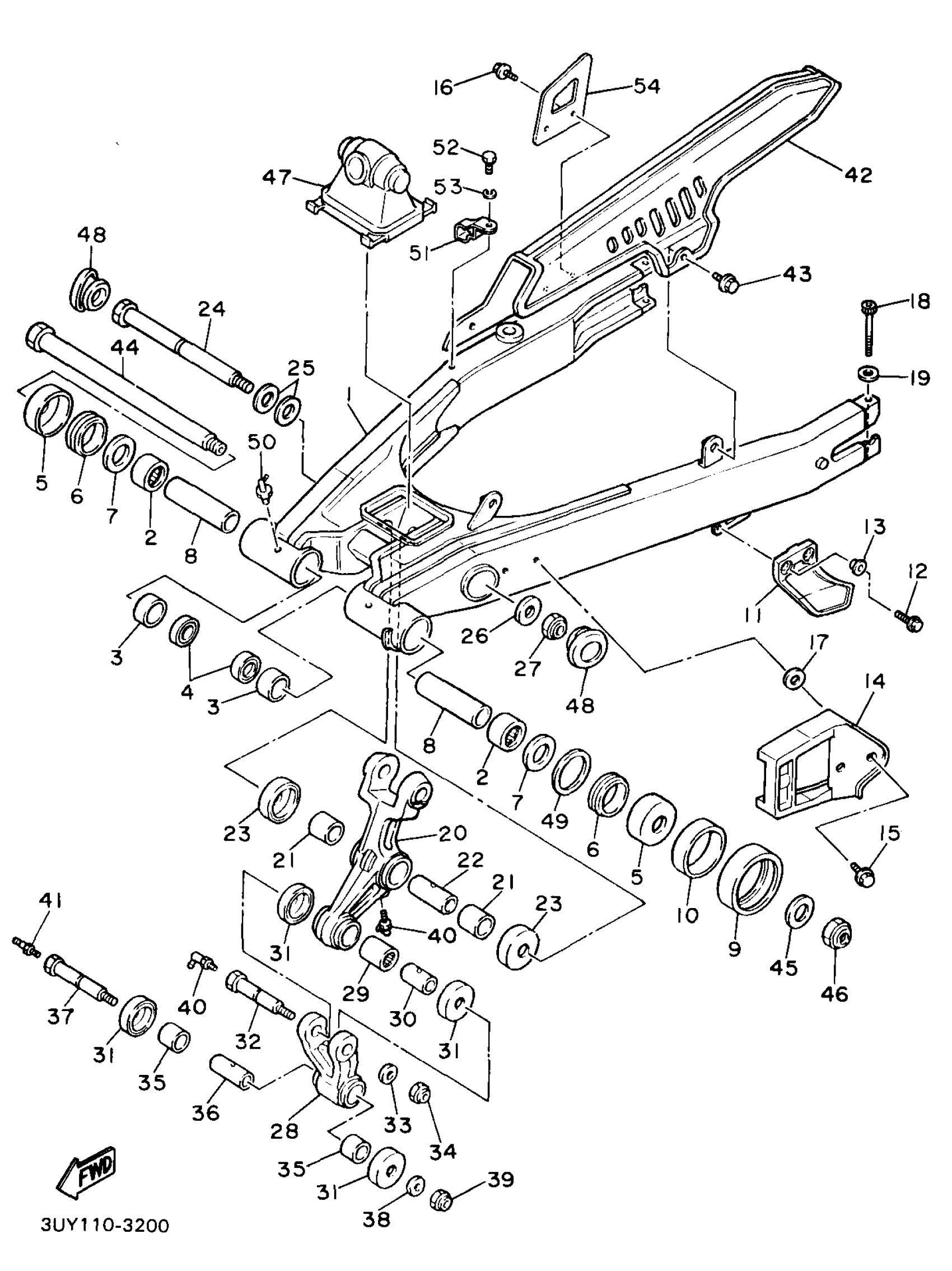

Yamaha XT600EEC (XT600E CA) 3UYA 1993 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

3TB-22110-00-00

Unavailable

2

BEARING, CYLINDRICAL (23X)

93317-32231-00

$44.99

3

BUSH, SOLID (23X)

90380-22111-00

$19.99

4

OIL SEAL (23X)

93106-22019-00

$11.49

5

COVER, THRUST

2K6-22128-01-00

$31.99

6

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

7

WASHER

3YF-22149-00-00

$8.99

8

BUSH 1

1VJ-22123-00-00

Unavailable

9

SEAL, GUARD

5X6-22151-10-00

$40.99

10

COLLAR (5X6)

90387-440G3-00

$21.99

11

SUPPORT, CHAIN

38V-22199-00-00

$59.99

12

BOLT, FLANGE

95817-06020-00

$3.81

13

COLLAR (3L6)

90387-06737-00

$9.49

14

PROTECTOR, CHAIN

2KF-22147-00-00

Unavailable

15

BOLT, FLANGE

95817-06010-00

$4.73

16

BOLT, FLANGE

95812-06010-00

Unavailable

17

WASHER (3R8)

90209-06187-00

Unavailable

18

BOLT, SOCKET

91314-06060-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

ARM, RELAY

3TB-2217A-00-00

Unavailable

21

BUSH (30X)

90386-20120-00

Unavailable

22

BUSH, SOLID

90380-14095-00

Unavailable

23

COVER, THRUST 1

34L-22128-00-00

Unavailable

24

BOLT, WASHER BASED(3RW)

90105-12668-00

Unavailable

25

WASHER, PLATE (90201-14707)

90201-140G9-00

Unavailable

26

WASHER, PLATE (8K2)

90201-120A5-00

Unavailable

27

NUT, U (4PM)

95617-12100-00

Unavailable

28

ROD, CONNECTING 1

34L-2217F-00-00

Unavailable

29

BEARING, CYLINDRICAL (23X)

93315-31732-00

Unavailable

30

COLLAR (23X)

90387-121H1-00

Unavailable

31

COVER, THRUST 2

55K-22129-00-00

Unavailable

32

BOLT

90109-10759-00

Unavailable

33

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

34

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

35

BUSH (34L)

90386-20123-00

Unavailable

36

COLLAR (34L)

90387-122J6-00

Unavailable

37

BOLT(2VG)

90109-102G8-00

Unavailable

38

WASHER (7A9)

90201-100F7-00

Unavailable

39

NUT, U

90185-10037-00

Unavailable

40

NIPPLE, GREASE

93700-06005-00

Unavailable

41

NIPPLE, GREASE

93700-06M03-00

Unavailable

42

CASE, CHAIN

3TB-22311-00-00

Unavailable

43

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

44

SHAFT, PIVOT

1VJ-22141-00-00

Unavailable

45

WASHER (525)

90201-15238-00

Unavailable

46

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

47

BOOT, RUBBER

3TB-22189-00-00

Unavailable

48

CAP

34L-22117-00-00

Unavailable

49

WASHER, PLATE (5Y1)

90201-251F6-00

Unavailable

50

NIPPLE, GREASE

93700-06005-00

Unavailable

51

CLAMP

90461-12110-00

Unavailable

52

BOLT (661)

97013-06012-00

Unavailable

53

WASHER, SPRING

92995-06100-00

Unavailable

54

PROTECTOR

2KF-27491-00-00

Unavailable
