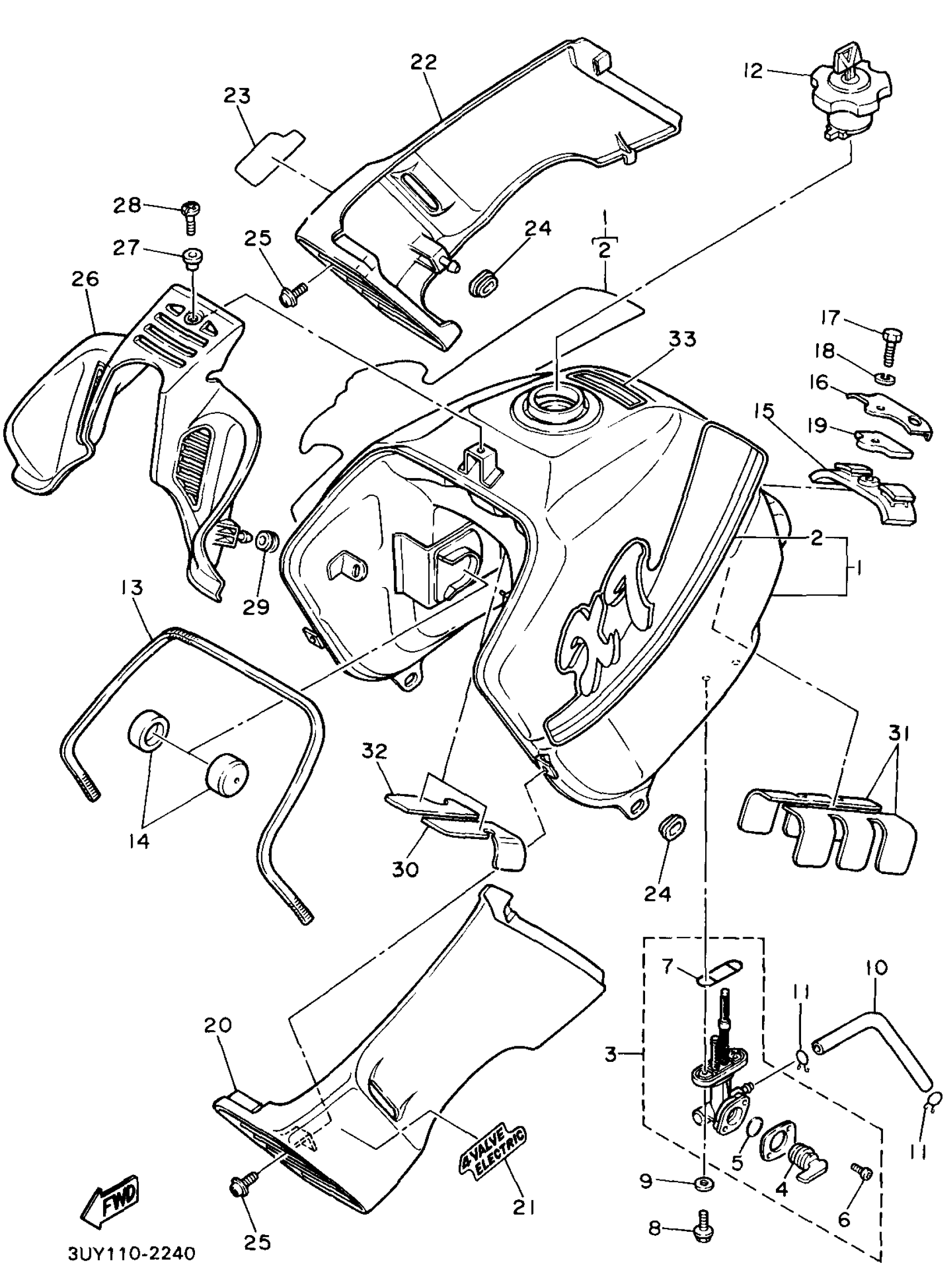

Yamaha XT600EEC (XT600E CA) 3UYA 1993 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

3TB-24110-10-X8

Unavailable

2

. GRAPHIC SET

3TB-24240-40-00

Unavailable

3

FUEL COCK ASSY 1

3FY-24500-01-00

$57.99

4

VALVE PACKING

3AC-24523-00-00

$12.99

5

SEAL, COCK

3AJ-24534-01-00

$10.99

6

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

7

O-RING

4X8-24512-00-00

$8.99

8

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

9

WASHER, PLATE(3MB)

90202-05187-00

$1.38

10

HOSE (L200)

90445-10752-00

$4.99

11

CLIP

90467-090A2-00

$4.41

12

CAP ASSY

11H-24602-10-00

$101.99

13

MOLD, FUEL TANK

3TB-24188-00-00

Unavailable

14

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

15

DAMPER, LOCATING 2

43F-24182-00-00

Unavailable

16

WASHER, SPECIAL

3TB-24186-00-00

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

DAMPER, SEAT

23T-24724-01-00

Unavailable

20

SCOOP, AIR 1

3TB-2137W-90-00

Unavailable

21

EMBLEM 1

3TB-24231-69-00

Unavailable

22

SCOOP, AIR 2

3TB-2137X-90-00

Unavailable

23

EMBLEM 1

3TB-24231-69-00

Unavailable

24

GROMMET(41Y)

90480-01401-00

Unavailable

25

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable

26

GUIDE, AIR

3TB-2137Y-00-00

Unavailable

27

COLLAR

90387-06107-00

Unavailable

28

SCREW(1KH)

90149-06223-00

Unavailable

29

GROMMET(80K)

90480-13428-00

Unavailable

30

INSULATOR, FUEL TANK 1

3TB-2416F-00-00

Unavailable

31

INSULATOR, FUEL TANK 2

3TB-2416G-00-00

Unavailable

32

INSULATOR, FUEL TANK 1

3TB-2416F-10-00

Unavailable

33

LABEL, CAUTION

3MX-2118K-00-00

Unavailable
