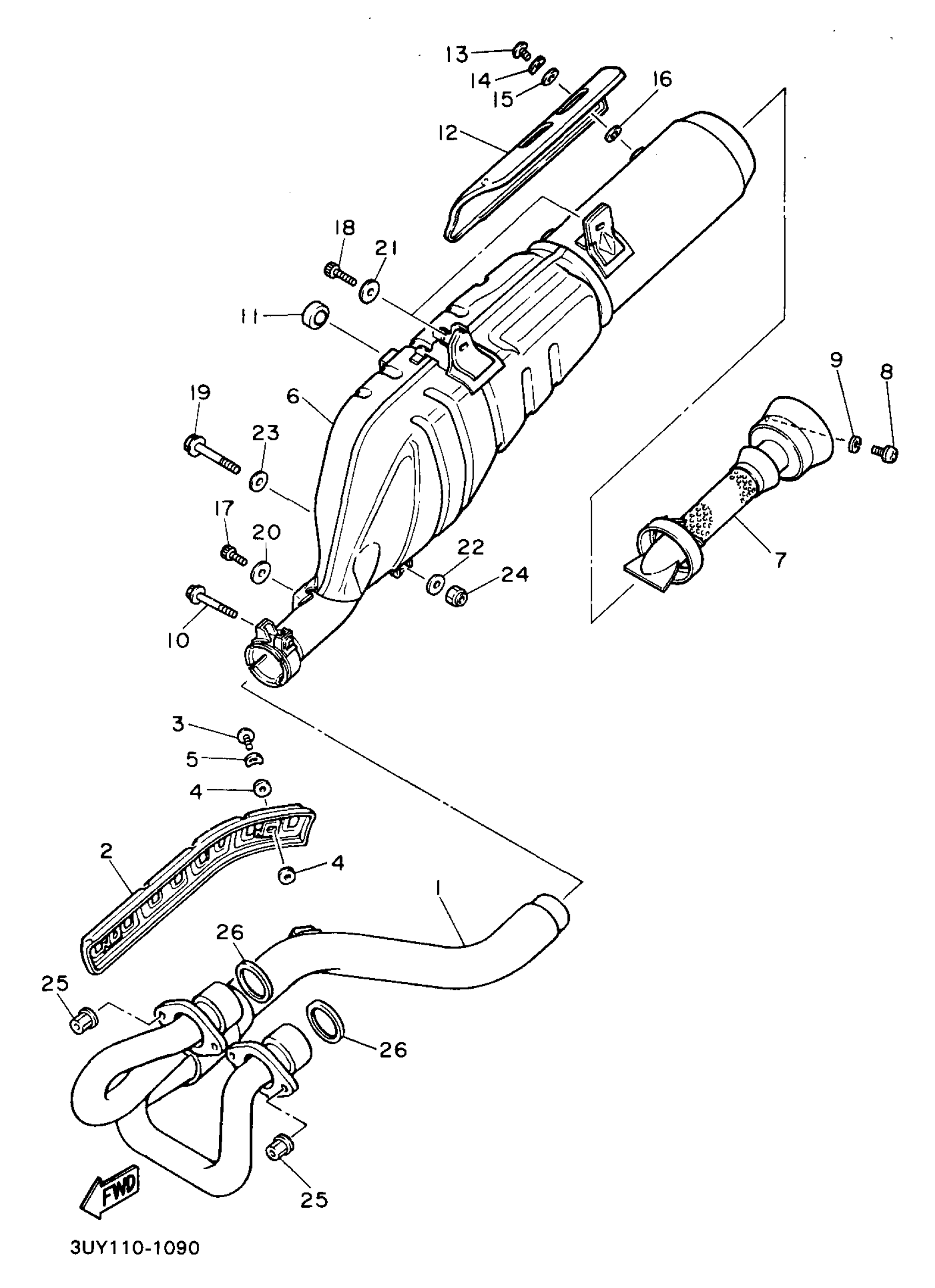

Yamaha XT600EEC (XT600E CA) 3UYA 1993 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

34K-14611-01-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

54G-14628-01-00

Unavailable

3

SCREW, TAPPING (30X)

90164-06017-00

$8.49

4

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

5

WASHER, WAVE(3RW)

90206-06090-00

$8.49

6

MUFFLER L

3UY-14711-01-00

Unavailable

7

PIPE, OUTLET

34K-14752-00-00

Unavailable

8

SCREW, PAN

98507-06010-00

$3.55

9

WASHER, SPRING

92907-06100-00

$4.25

10

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

11

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

12

PROTECTOR, MUFFLER 2

3TB-14728-00-00

Unavailable

13

SCREW, BIND(1JK)

98980-06010-00

$9.49

14

WASHER, WAVE(3RW)

90206-06090-00

$8.49

15

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

16

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

17

BOLT(2KF)

90109-085E2-00

Unavailable

18

BOLT (4W3)

90105-10186-00

Unavailable

19

BOLT, WASHER BASED (4K0)

90105-10169-00

Unavailable

20

WASHER (853)

90201-08326-00

Unavailable

21

WASHER, PLATE(52H)

90201-102J5-00

Unavailable

22

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

23

WASHER, PLATE

90201-10144-00

Unavailable

24

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

25

NUT (1AE)

90179-06500-00

Unavailable

26

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable
