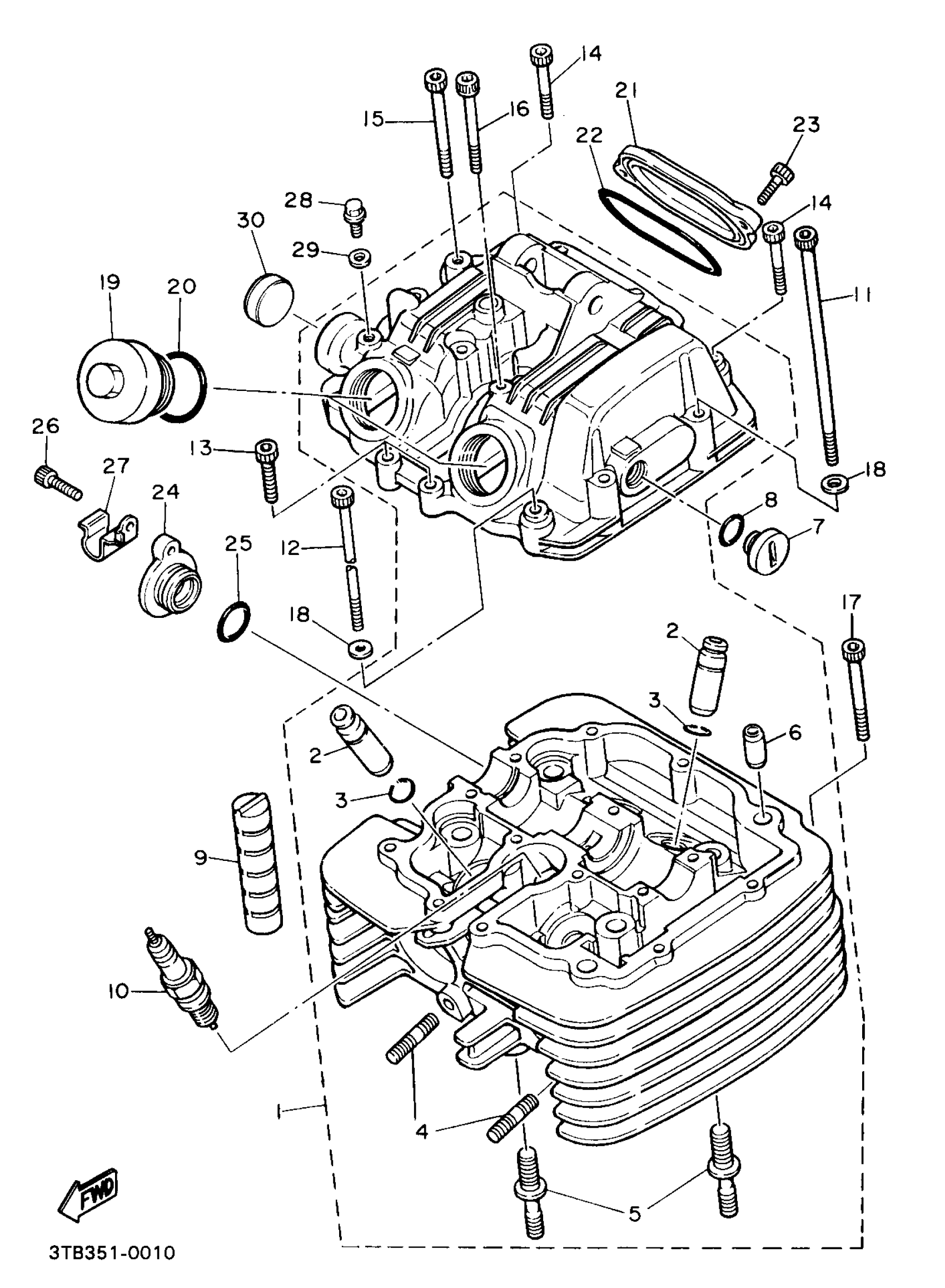

Yamaha XT600EEC (XT600E CA) 3UYA 1993 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3TB-11101-02-00

Unavailable

2

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT, STUD(1JK)

90116-06475-00

$8.49

5

. BOLT, STUD

90116-10378-00

Unavailable

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

8

O-RING(36Y)

93210-13657-00

$7.49

9

ABSORBER

583-11127-00-00

$7.99

10

DPR8EA-9 NGK 10PK

DPR-8EA90-00-00

Unavailable

11

BOLT, SOCKET

91317-06125-00

$17.99

12

BOLT,SOCKET

91317-06115-00

Unavailable

13

BOLT,SOCKET

91317-06025-00

$5.60

14

BOLT,SOCKET

91317-06040-00

$3.76

15

BOLT,SOCKET

91317-06055-00

$4.19

16

BOLT(2NX)

90109-063E9-00

Unavailable

17

BOLT,SOCKET

91317-06050-00

Unavailable

18

WASHER(6TA)

92907-06600-00

Unavailable

19

COVER, CYLINDER HEAD SIDE

1L9-11186-00-00

Unavailable

20

O-RING (341)

93210-32172-00

Unavailable

21

COVER, CYLINDER HEAD SIDE 3

5Y1-11187-00-00

Unavailable

22

O-RING (4X7)

93210-62446-00

Unavailable

23

BOLT,SOCKET

91317-06018-00

Unavailable

24

CAP, TENSIONER CASE

99999-03125-00

Unavailable

25

O-RING (5Y1)

93210-19522-00

Unavailable

26

BOLT,SOCKET

91317-06020-00

Unavailable

27

CLAMP

90462-15196-00

Unavailable

28

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

29

GASKET 256113960000

90430-06014-00

Unavailable

30

PLUG(3AJ)

90338-22207-00

Unavailable
