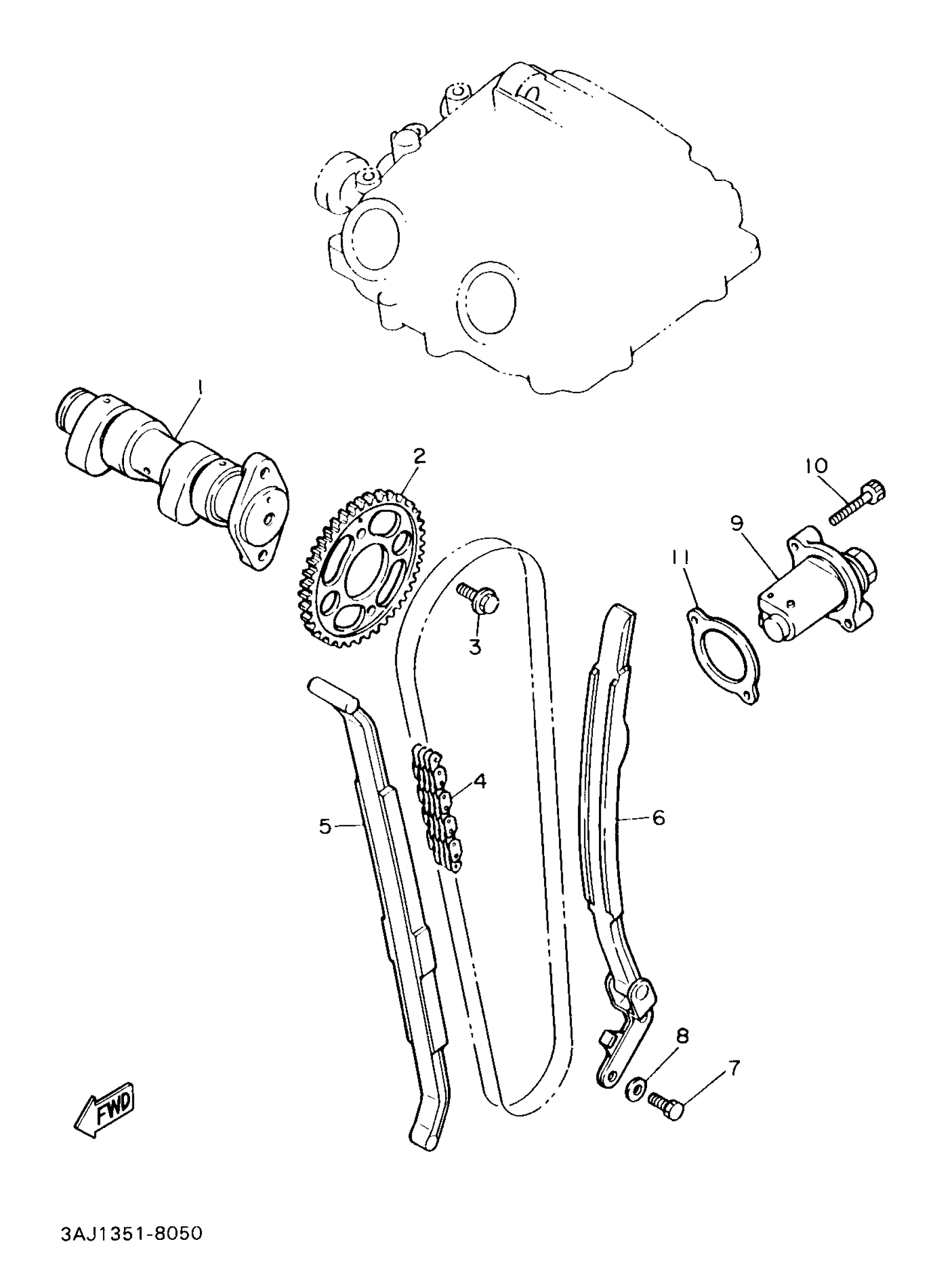

Yamaha XT600EEC (XT600E CA) 3UYA 1993 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

1JK-12171-00-00

Unavailable

2

SPROCKET, CAM CHAIN

3TB-12176-00-00

Unavailable

3

BOLT, FLANGE

90105-07004-00

$4.66

4

CHAIN

94591-40126-00

$53.86

5

GUIDE, STOPPER 1

34K-12231-01-00

Unavailable

6

GUIDE, STOPPER 2

34K-12241-01-00

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

$114.10

10

BOLT,SOCKET

91317-06025-00

$1.91

11

GASKET, TENSIONER CASE

4DW-12213-00-00

$6.90
