Description

Price

1

MASTER CYLINDER SUB ASSY

3TB-25870-00-00

$268.99

2

CYLINDER KIT, MASTER

23L-W0041-00-00

$123.99

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

4

CAP, RESERVOIR

4H7-25852-00-00

$39.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

7

BRAKE HOSE SET (3TB)

99999-02429-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92907-06100-00

$4.25

10

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

11

BOLT, UNION(3GM)

90401-10159-00

$11.49

12

WASHER, PLATE(481)

90201-10118-00

Unavailable

13

CLAMP

90461-16124-00

Unavailable

14

BOLT, FLANGE

95817-06016-00

$2.75

15

HOLDER, CABLE 1

3TB-23318-00-00

Unavailable

16

CLAMP

3TB-23467-00-00

Unavailable

16

HOSE (L700)

90445-05M07-00

Unavailable

16

WASHER, PLAIN (646)

92990-04600-00

Unavailable

16

SCREW, PAN HEAD

98507-04018-00

Unavailable

16

CLAMP SET (3TB1)

99999-02107-00

Unavailable

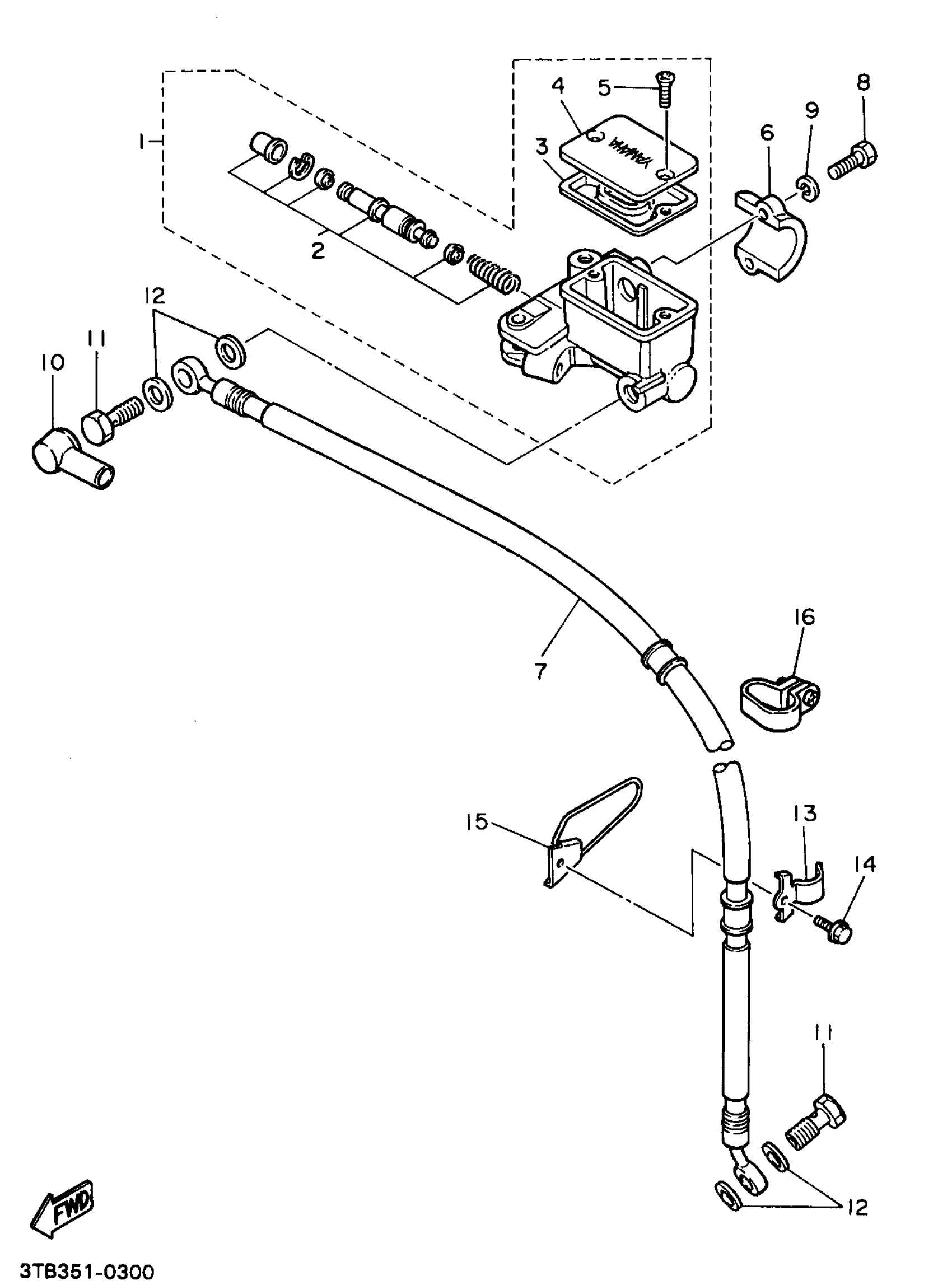

Yamaha XT600EDC (XT600E CA) 1992 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

CYLINDER KIT, MASTER

DIAPHRAGM, RESERVOIR

CAP, RESERVOIR

SCREW, FLAT

BRACKET, MASTER CYLINDER

BRAKE HOSE SET (3TB)

BOLT, HEXAGON

WASHER, SPRING

BOOT, MASTER CYLINDER

BOLT, UNION(3GM)

WASHER, PLATE(481)

CLAMP

BOLT, FLANGE

HOLDER, CABLE 1

CLAMP

HOSE (L700)

WASHER, PLAIN (646)

SCREW, PAN HEAD

CLAMP SET (3TB1)
