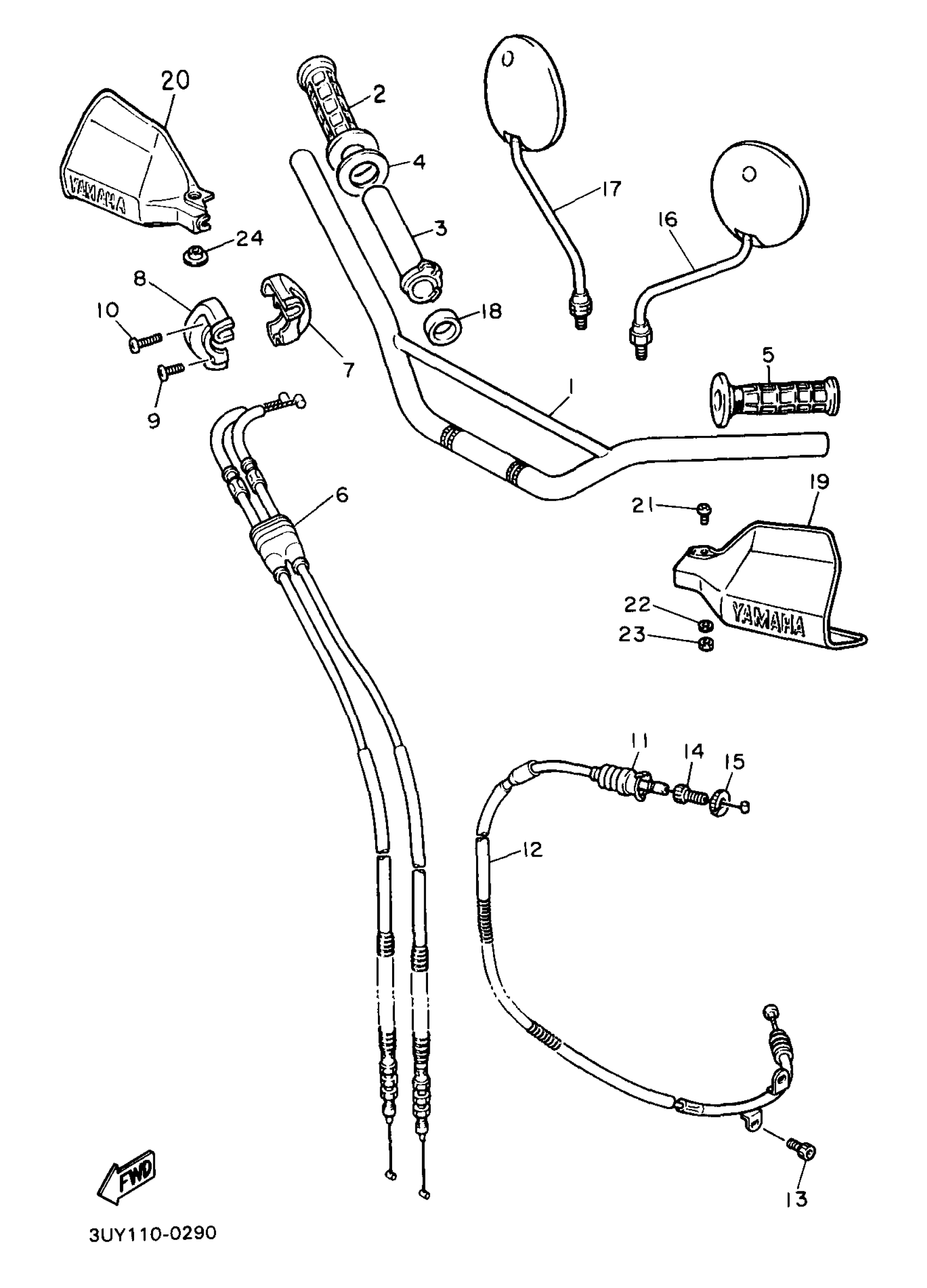

Yamaha XT600EBC (XT600E CA) 1991 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

3TB-26111-01-00

Unavailable

2

GRIP RH

33G-26242-01-00

Unavailable

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

$28.99

4

RING, LEAF

3Y1-26249-00-00

$9.99

5

GRIP

33G-26241-01-00

Unavailable

6

THROTTLE CABLE ASSY

3YF-26302-01-00

Unavailable

7

CAP, GRIP UPPER

34K-26281-00-00

Unavailable

8

CAP, GRIP LOWER

1VJ-26282-00-00

Unavailable

9

SCREW, PAN HEAD

98517-05020-00

$4.25

10

SCREW, PAN HEAD(4MY)

98507-05025-00

$8.49

11

BOOT, WIRE

1E6-26342-00-00

$30.99

12

CABLE, CLUTCH

3TB-26335-01-00

$72.99

13

BOLT,SOCKET

91317-06010-00

$9.49

14

BOLT

90123-08002-00

$10.49

15

NUT

90179-08030-00

$5.49

16

MIRROR ASSY., 2

5Y1-26290-11-00

Unavailable

17

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

Unavailable

18

COLLAR (2H7)

90387-22660-00

Unavailable

19

GUARD, BRUSH 1

1LN-26141-00-00

Unavailable

20

GUARD, BRUSH 2

3TB-26142-20-00

Unavailable

21

SCREW, PAN

98507-06035-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

NUT(650)

95380-06700-00

Unavailable

24

COLLAR (899 INTAKE)

90387-06500-00

Unavailable
