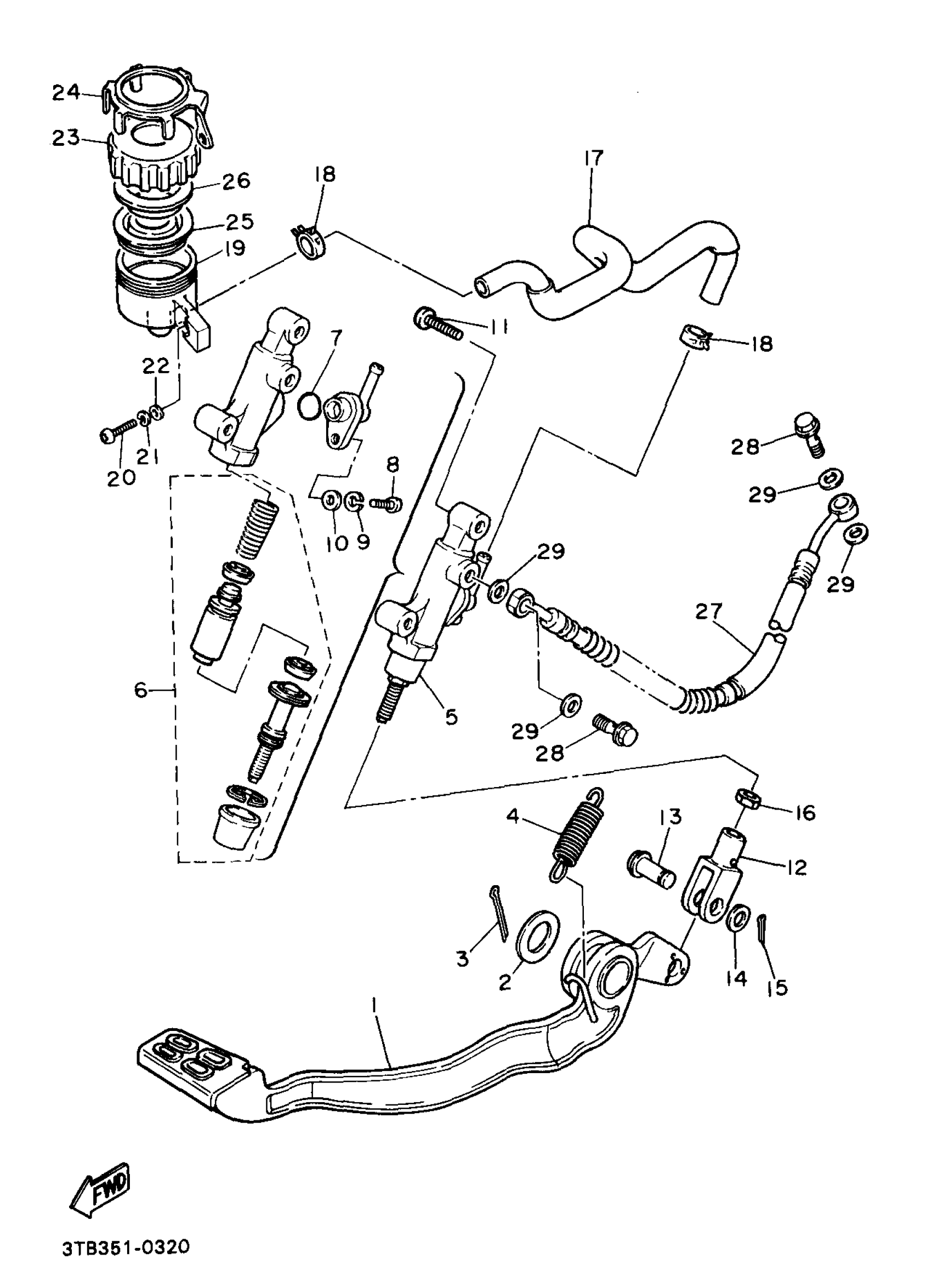

Yamaha XT600EBC (XT600E CA) 1991 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

3UW-27211-02-00

Unavailable

2

WASHER PLATE 148272190000

90201-14215-00

$10.49

3

PIN COTTER

91490-30025-00

$3.99

4

SPRING, TENSION(3TB)

90507-18055-00

Unavailable

5

RR. MASTER CYLINDER ASSEMBLY.

3TB-2583V-00-00

Unavailable

6

CYLINDER KIT, REAR MASTER

31A-W0042-50-00

Unavailable

7

O-RING (22U)

93210-15566-00

$7.49

8

SCREW, PAN HEAD

98511-04012-00

Unavailable

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

WASHER, PLAIN (646)

92990-04600-00

$5.99

11

BOLT, BUTTON

92017-08025-00

$8.49

12

JOINT

47X-27222-00-00

Unavailable

13

PIN W/HOLE 307181180000

90240-08013-00

$8.49

14

WASHER, PLATE 1562722600

90201-08083-00

$9.49

15

PIN, COTTER

91490-16020-00

Unavailable

16

. NUT

95380-08700-00

Unavailable

17

HOSE, RESERVOIR

3TB-25895-00-00

Unavailable

18

CLIP (5K4)

90467-14057-00

Unavailable

19

TANK, RESERVOIR

47X-25894-00-00

Unavailable

20

SCREW PAN HEAD

98580-06020-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

24

COVER, RESERVOIR TANK

3AJ-25888-00-00

Unavailable

25

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

26

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

27

HOSE;BRAKE 2

99999-02428-00

Unavailable

28

BOLT, UNION(3GM)

90401-10159-00

Unavailable

29

WASHER, PLATE(481)

90201-10118-00

Unavailable
