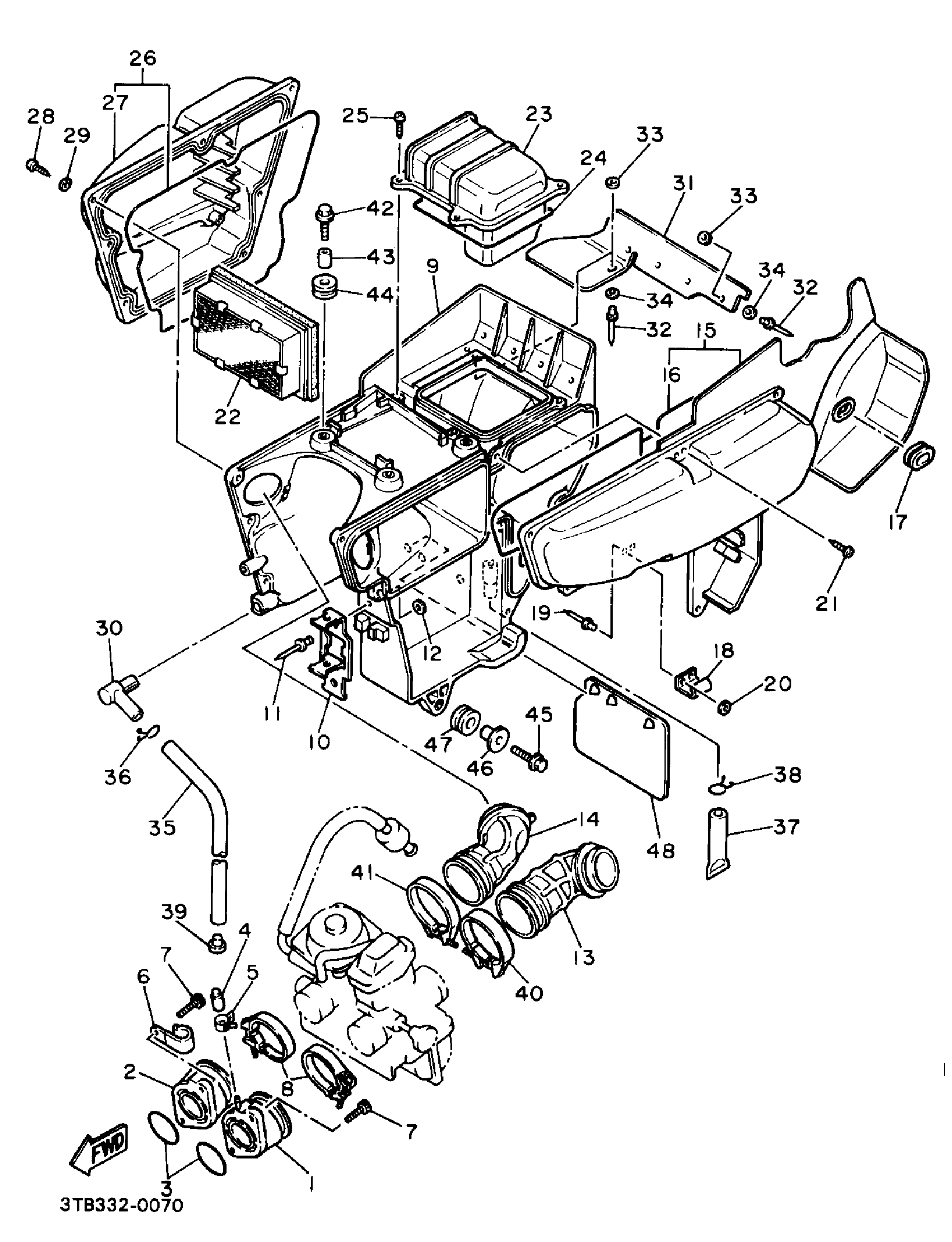

Yamaha XT600EBC (XT600E CA) 1991 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
43F-13586-01-00
Unavailable
2
JOINT, CARBURETOR 2
1VJ-13596-00-00
Unavailable
6
CLAMP
90465-08028-00
Unavailable
7
BOLT,SOCKET
91317-06020-00
Unavailable
9
CASE, AIR CLEANER 1
3TB-14411-01-00
Unavailable
10
STAY, RELAY
3TB-81953-00-00
Unavailable
11
RIVET,BLIND
90267-40080-00
Unavailable
13
JOINT, AIR CLEANER 1
3TB-14453-00-00
Unavailable
14
JOINT
3TB-14454-00-00
Unavailable
15
COVER, CLEANER CASE 1
3TB-1441A-00-00
Unavailable
16
SEAL
1VJ-14462-00-00
Unavailable
17
GROMMET (10V)
90480-12325-00
Unavailable
18
HOOK
43G-14436-00-00
Unavailable
19
RIVET,BLIND
90267-40080-00
Unavailable
21
SCREW, PAN TAP.2 SLIT
97707-50620-00
Unavailable
22
ELEMENT, AIR CLEANER
3TB-14451-02-00
Unavailable
23
CAP, CLEANER CASE 1
3TB-14412-00-00
Unavailable
24
SEAL
1VJ-14462-00-00
Unavailable
25
SCREW, PAN TAP.2 SLIT
97707-50620-00
Unavailable
26
COVER, CLEANER CASE 2
3TB-1441E-00-00
Unavailable
27
SEAL
1VJ-14462-00-00
Unavailable
28
SCREW, PAN HEAD
98517-05020-00
Unavailable
29
WASHER(1RW)
92907-05600-00
Unavailable
30
PIPE
5Y1-14419-00-00
Unavailable
31
FLAP
3TB-21621-00-00
Unavailable
32
RIVET, BLIND (J10)
90267-40077-00
Unavailable
33
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
34
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
35
HOSE
90445-121E3-00
Unavailable
36
CLIP (4X4)
90467-12052-00
Unavailable
37
PIPE, DRAIN
34X-1443E-00-00
Unavailable
38
CLIP(1JH)
90467-11106-00
Unavailable
39
PLUG (1HX)
90338-08174-00
Unavailable
40
CLAMP HOSE 304144550000
90460-51059-00
Unavailable
41
HOSE CLAMP ASSY
90450-58002-00
Unavailable
42
BOLT, FLANGE
95817-06020-00
Unavailable
43
COLLAR(735)
90387-06033-00
Unavailable
44
GROMMET (16R)
90480-14329-00
Unavailable
45
BOLT, FLANGE
95817-06025-00
Unavailable
46
COLLAR
90387-074X3-00
Unavailable
47
GROMMET(663)
90480-15064-00
Unavailable
48
FLAP
34X-21691-00-00
Unavailable
