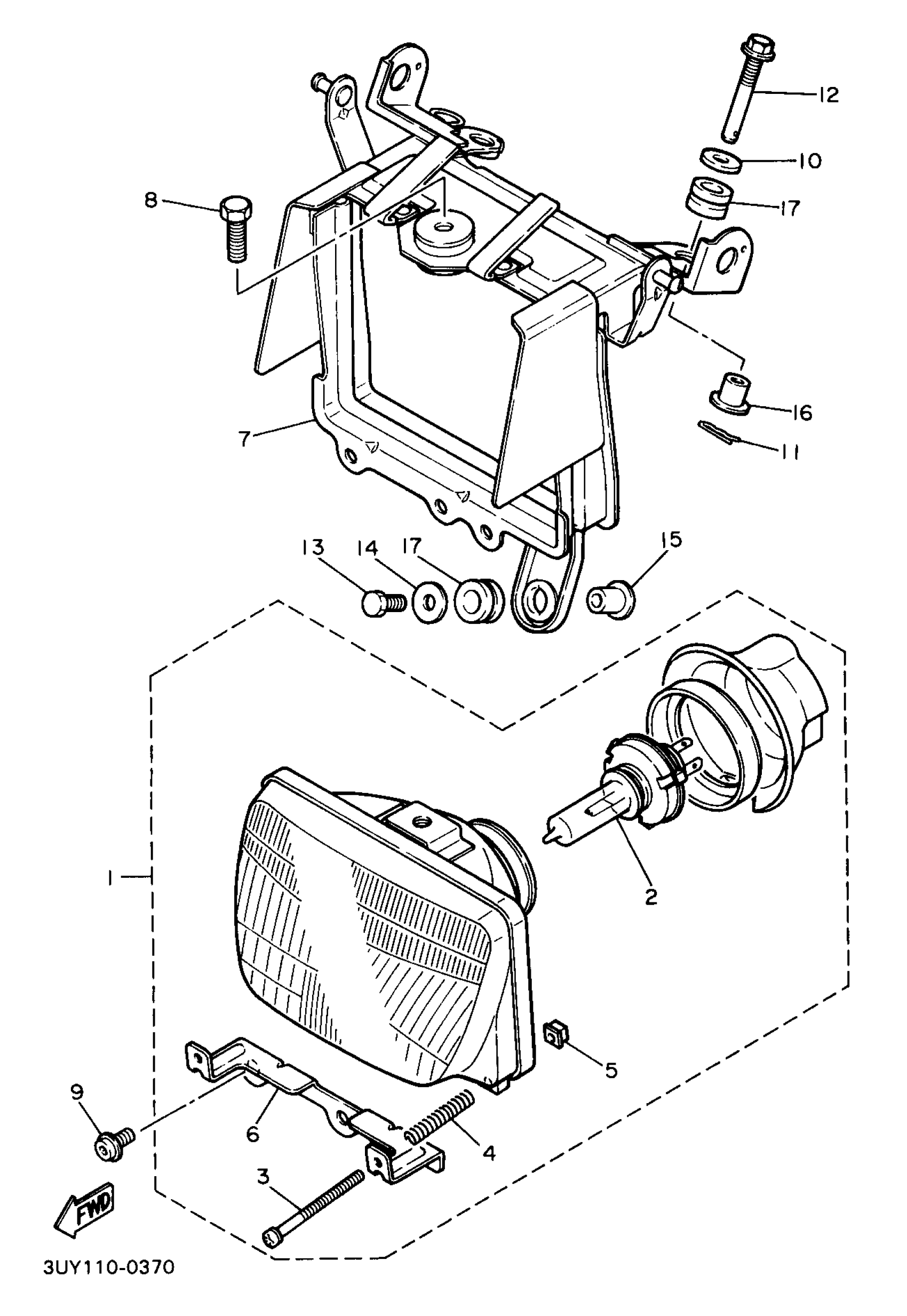

Yamaha XT600EBC (XT600E CA) 1991 HEADLIGHT Diagram

#

Description
Price

1

LENS ASSY

3UY-84320-00-00

Unavailable

2

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

3

SCREW, RIM FITTING

3TB-84325-00-00

$5.49

4

SPRING, ADJUST

341-84332-60-00

$9.99

5

NUT, ADJUST

198-84334-60-00

$7.99

6

STAY, SETTING

3TB-8431R-00-00

Unavailable

7

BODY, HEADLIGHT

3TB-84311-00-00

Unavailable

8

BOLT, HEXAGON

3TB-84372-01-00

$2.13

9

BOLT, WING 1

3TB-84329-00-00

$1.46

10

WASHER PLATE 102283270000

90202-06013-00

Unavailable

11

CLIP (7R4)

90468-12120-00

$8.49

12

BOLT, SPECIAL

3TB-84137-00-00

Unavailable

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER, PLATE 8221447500

90201-06057-00

$5.60

15

COLLAR

90387-06158-00

$8.49

16

COLLAR 437216330000

90387-07391-00

Unavailable

17

GROMMET 839774310000

90480-14023-00

Unavailable
