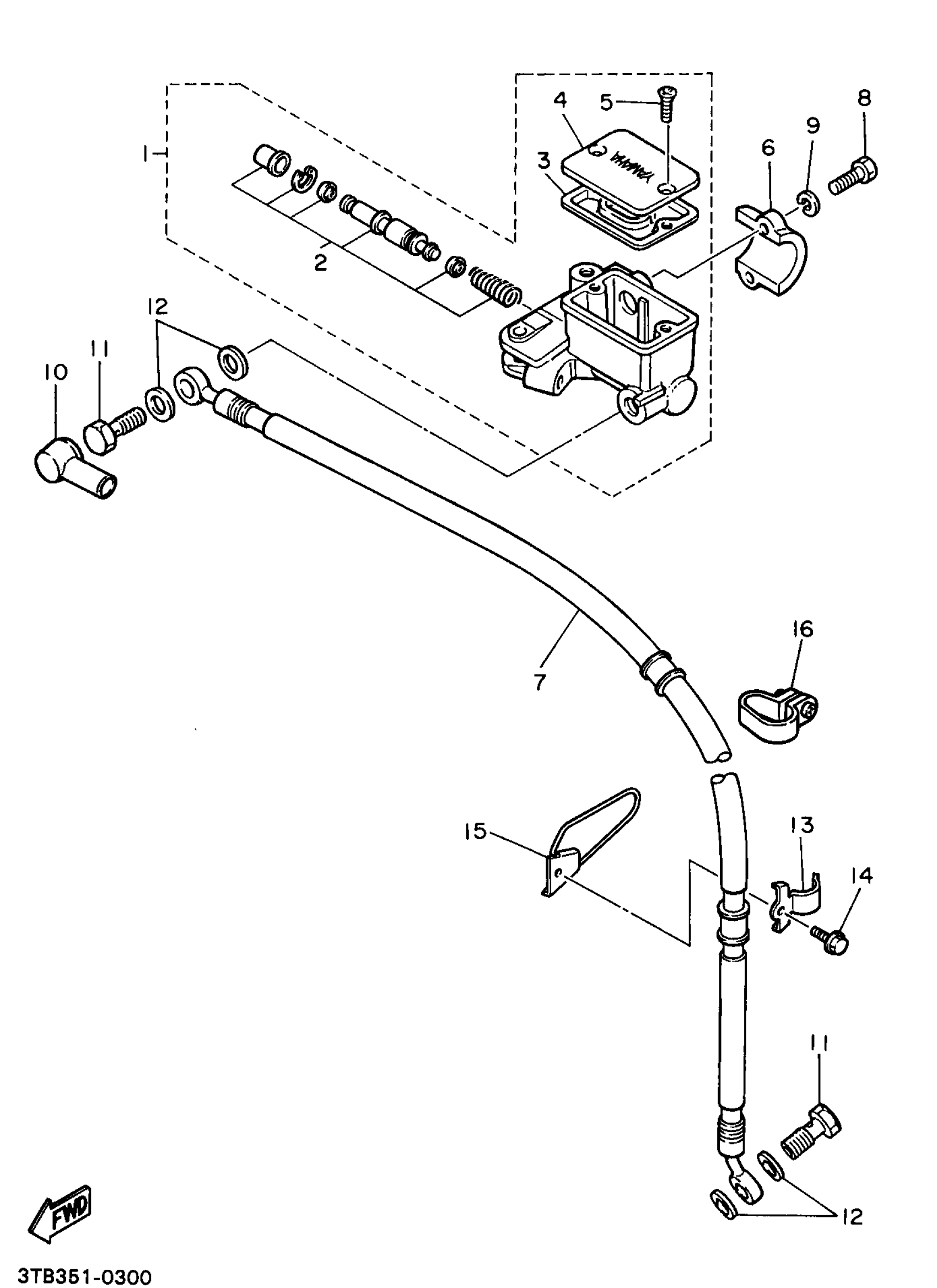

Yamaha XT600EBC (XT600E CA) 1991 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

3TB-25870-00-00

$268.99

CYLINDER KIT, MASTER

23L-W0041-00-00

$123.99

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

CAP, RESERVOIR

4H7-25852-00-00

$39.99

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

BRAKE HOSE SET (3TB)

99999-02429-00

Unavailable

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER, SPRING

92907-06100-00

$4.25

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

BOLT, UNION(3GM)

90401-10159-00

$11.49

WASHER, PLATE(481)

90201-10118-00

Unavailable

CLAMP

90461-16124-00

Unavailable

BOLT, FLANGE

95817-06016-00

$2.75

HOLDER, CABLE 1

3TB-23318-00-00

Unavailable

CLAMP SET (3TB1)

99999-02107-00

Unavailable
