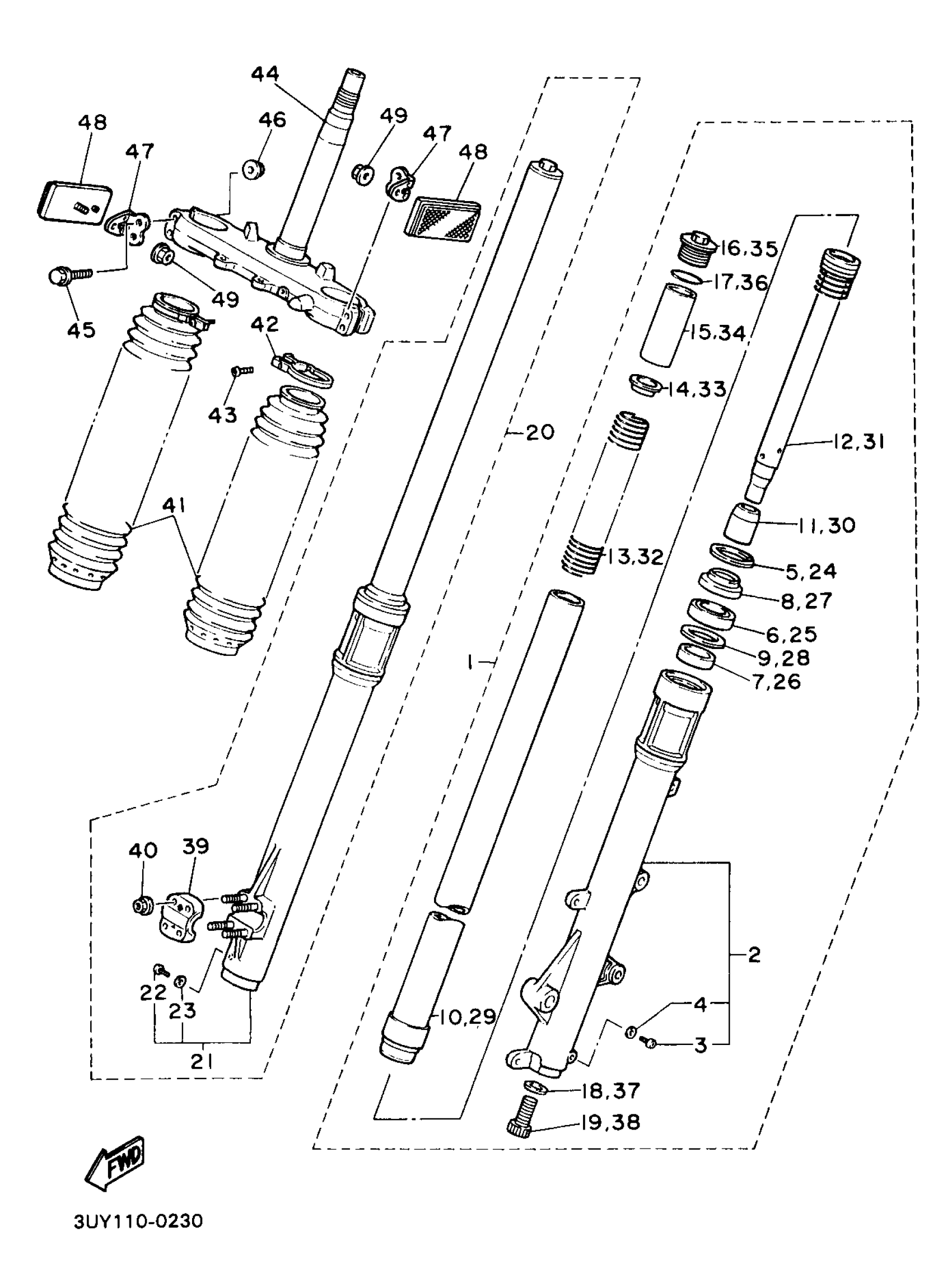

Yamaha XT600EBC (XT600E CA) 1991 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY (L.H)

3TB-23102-00-00

Unavailable

2

. TUBE, OUTER 1

3TB-23126-00-00

Unavailable

3

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

4

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

5

CLIP, OIL SEAL

26H-23156-00-00

$7.99

6

OIL SEAL

43F-23145-10-00

$31.99

7

METAL, SLIDE 1

4FM-23125-40-00

$33.99

8

SEAL, DUST

43F-23144-10-00

$23.99

9

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

10

. INNER TUBE COMP 1

3TB-23110-00-00

Unavailable

11

SPINDLE, TAPER

3GM-23173-00-00

Unavailable

12

. CYLINDER COMP, FRONT FORK

3TB-23170-00-00

Unavailable

13

. SPRING, FRONT FORK

3TB-23141-00-00

Unavailable

14

. SEAT, SPRING UPPER

43F-23142-10-00

Unavailable

15

SPACER

3FW-23118-00-00

$20.99

16

BOLT, CAP

1D0-23111-00-00

Unavailable

17

O-RING

43F-23188-10-00

Unavailable

18

GASKET

4V4-23158-L0-00

Unavailable

19

BOLT

4V4-23181-L0-00

Unavailable

20

FRONT FORK ASSEMBLY (R.H)

3TB-23103-00-00

Unavailable

21

. TUBE, OUTER 2

3TB-23136-00-00

Unavailable

22

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

23

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

24

CLIP, OIL SEAL

26H-23156-00-00

$7.99

25

OIL SEAL

43F-23145-10-00

$31.99

26

METAL, SLIDE 1

4FM-23125-40-00

$33.99

27

SEAL, DUST

43F-23144-10-00

$23.99

28

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

29

. INNER TUBE COMP 1

3TB-23110-00-00

Unavailable

30

SPINDLE, TAPER

3GM-23173-00-00

Unavailable

31

. CYLINDER COMP, FRONT FORK

3TB-23170-00-00

Unavailable

32

. SPRING, FRONT FORK

3TB-23141-00-00

Unavailable

33

. SEAT, SPRING UPPER

43F-23142-10-00

Unavailable

34

SPACER

3FW-23118-00-00

$20.99

35

BOLT, CAP

1D0-23111-00-00

Unavailable

36

O-RING

43F-23188-10-00

Unavailable

37

GASKET

4V4-23158-L0-00

Unavailable

38

BOLT

4V4-23181-L0-00

Unavailable

39

HOLDER, AXLE

4V2-23167-L0-00

Unavailable

40

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

41

BOOT (CHAPPY RED)

43F-23191-11-00

Unavailable

42

BAND

43M-23192-L0-00

Unavailable

43

SCREW, PAN HEAD

98507-04018-00

Unavailable

44

UNDER BRACKET COMP.

3TB-23340-00-00

Unavailable

45

BOLT, FLANGE

95817-08055-00

Unavailable

46

NUT, FLANGE

95704-08500-00

Unavailable

47

BRACKET, REFLECTOR 1

49R-85112-00-00

Unavailable

48

FRONT REFLECTOR ASSY

23V-85110-00-00

Unavailable

49

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
