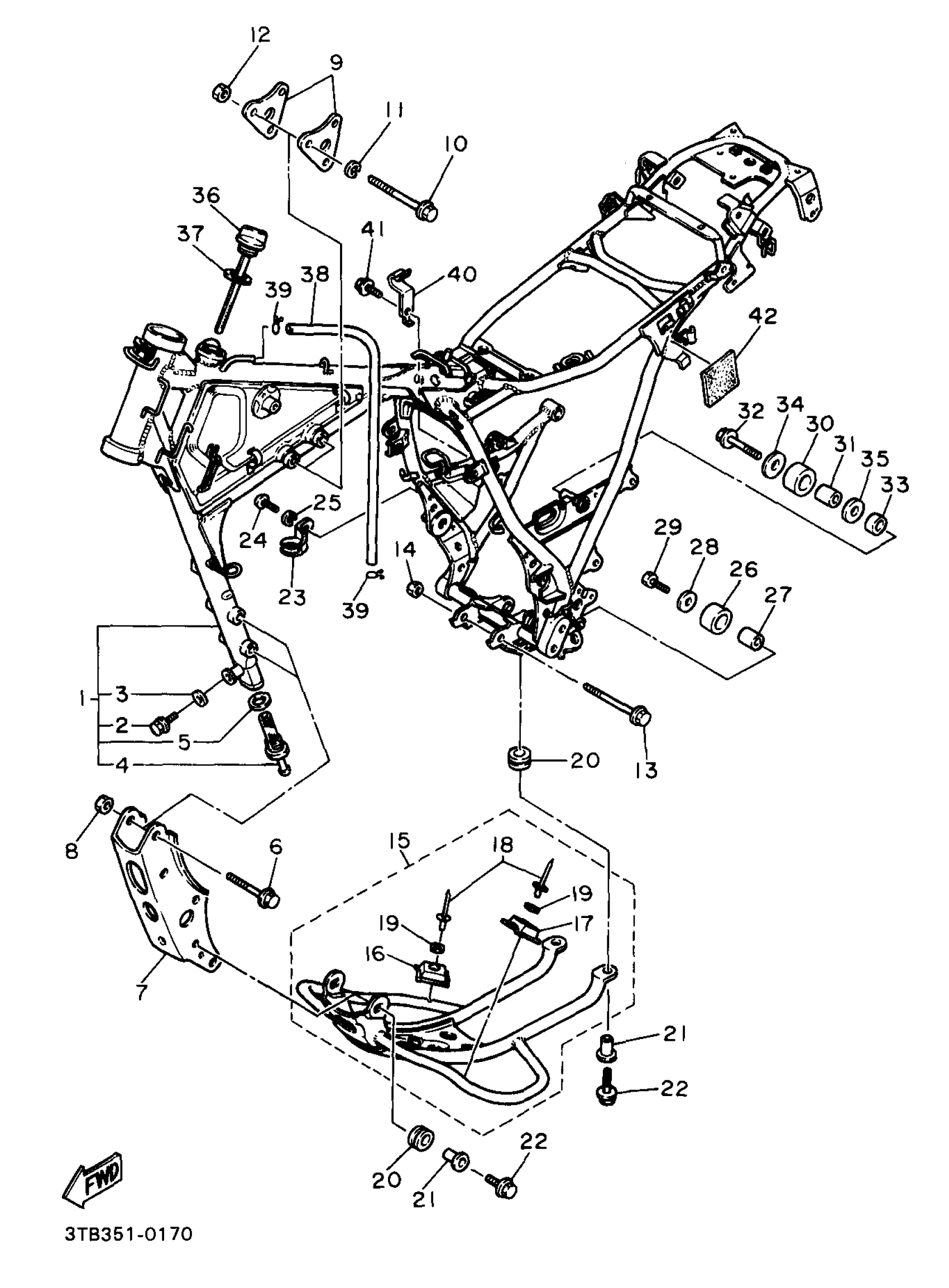

Yamaha XT600EBC (XT600E CA) 1991 FRAME Diagram

#

Description
Price

1

FRAME

3YP-21110-01-WL

Unavailable

2

BOLT, FLANGE

95817-08012-00

$5.49

3

WASHER, PLATE 3411117500

90201-08087-00

$3.71

4

NET, FILTER

3TB-21756-00-00

Unavailable

5

GASKET (583 OIL TANK)

90430-22123-00

$9.49

6

BOLT, WASHER BASED (39E)

90105-10286-00

$8.49

7

STAY, ENGINE 3

3TB-21316-00-WL

Unavailable

8

NUT, SELF-LOCKING

90185-10157-00

Unavailable

9

STAY, ENGINE 2

34L-21315-00-00

Unavailable

10

BOLT, WASHER BASED(65J)

90105-10M75-00

$7.49

11

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

12

NUT, SELF-LOCKING

90185-10157-00

Unavailable

13

BOLT, FLANGE(4MY)

95817-10100-00

$5.60

14

NUT, SELF-LOCKING

90185-10157-00

Unavailable

15

PROTECTOR, ENGINE

3TB-W2147-00-WL

Unavailable

16

DAMPER, RUBBER 1

34K-21485-00-00

Unavailable

17

DAMPER 2

34K-21486-00-00

Unavailable

18

RIVET,BLIND

90267-40080-00

Unavailable

19

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

20

GROMMET (29L)

90480-15363-00

Unavailable

21

COLLAR 437216330000

90387-07391-00

Unavailable

22

BOLT, FLANGE

95822-06025-00

Unavailable

23

BRACKET, STOP SWITCH

5Y1-21441-00-00

Unavailable

24

SCREW, PAN

98517-06012-00

Unavailable

25

WASHER, SPRING

92907-06100-00

Unavailable

26

TENSIONER

3TB-22178-00-00

Unavailable

27

BUSH

4V4-22184-00-00

Unavailable

28

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

29

BOLT, FLANGE (3JPE)

95024-08016-00

Unavailable

30

TENSIONER

30X-22178-00-00

Unavailable

31

BUSH

4V4-22184-00-00

Unavailable

32

BOLT (23X)

90109-08705-00

Unavailable

33

WASHER, PLATE(3RR)

90201-133P2-00

Unavailable

34

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

35

COLLAR (7R4)

90387-085E1-00

Unavailable

36

BODY, CAP

3TB-21771-00-00

Unavailable

37

GASKET (583 OIL TANK CAP)

90430-27124-00

Unavailable

38

HOSE

90445-115G3-00

Unavailable

39

CLIP

90467-100A1-00

Unavailable

40

CLAMP

3TB-21338-00-00

Unavailable

41

BOLT, FLANGE

95817-06010-00

Unavailable

42

DAMPER 1

3TB-28415-01-00

Unavailable
