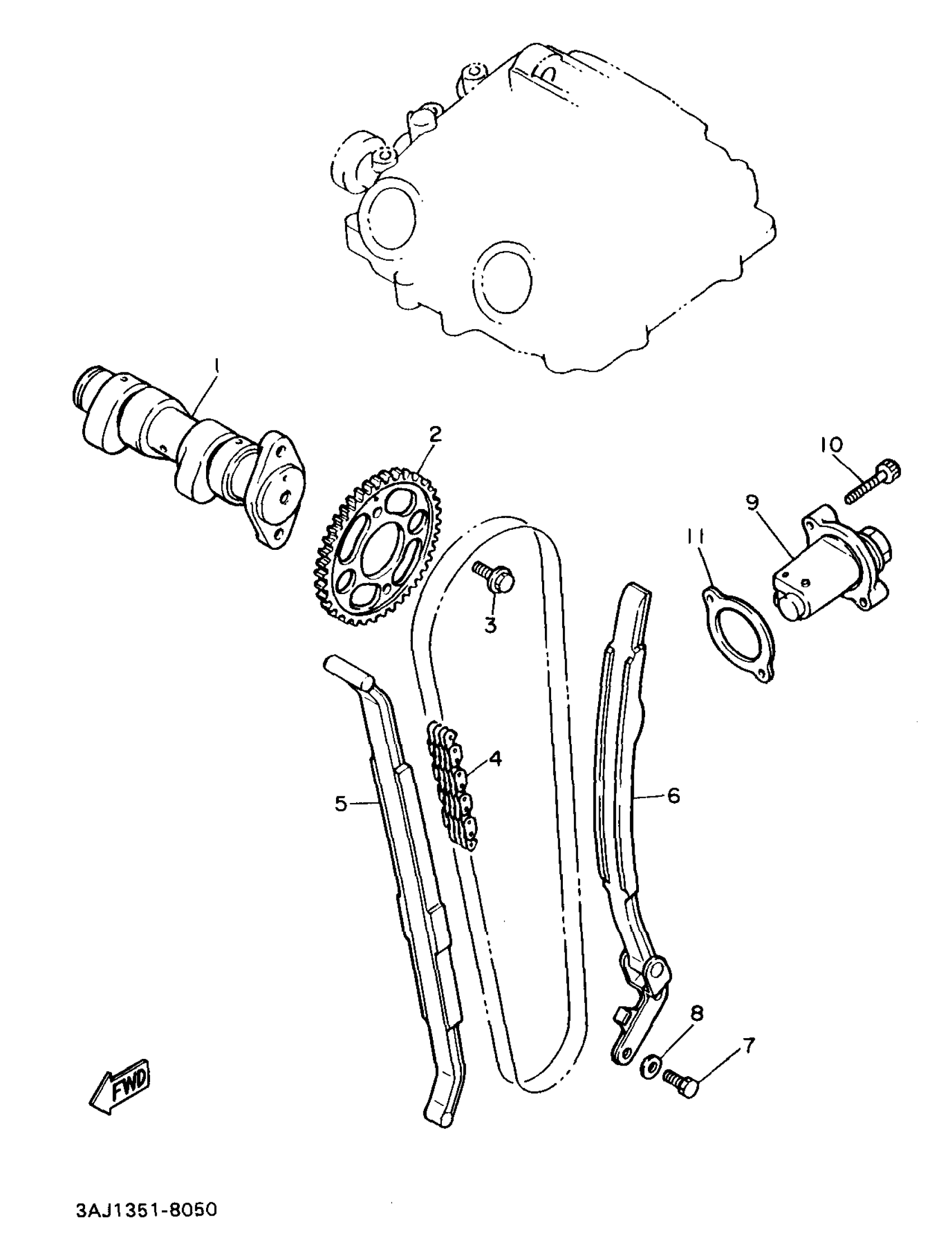

Yamaha XT600EBC (XT600E CA) 1991 CAMSHAFT CHAIN Diagram

CAMSHAFT 1

1JK-12171-00-00

Unavailable

SPROCKET, CAM CHAIN

3TB-12176-00-00

Unavailable

BOLT, FLANGE

90105-07004-00

$5.60

CHAIN

94591-40126-00

$63.99

GUIDE, STOPPER 1

34K-12231-01-00

Unavailable

GUIDE, STOPPER 2

34K-12241-01-00

$123.99

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, PLAIN (646)

92990-06600-00

$2.80

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

$141.99

BOLT,SOCKET

91317-06025-00

$5.60

GASKET, TENSIONER CASE

4DW-12213-00-00

$7.99
