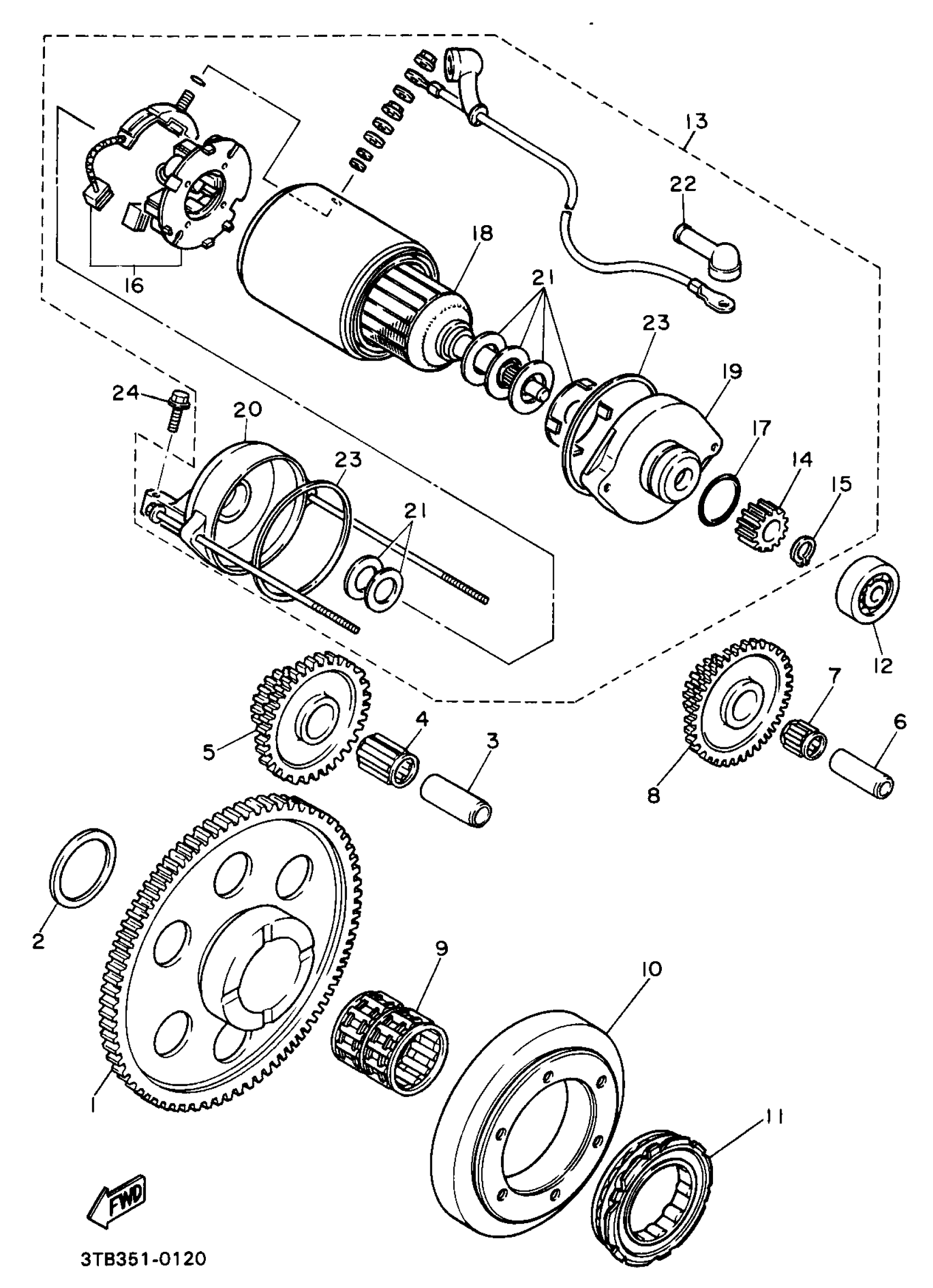

Yamaha XT600EAC (XT600E CA) 1990 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR 3

3YF-15515-00-00

$214.99

2

WASHER, PLATE(1VJ)

90201-303P4-00

Unavailable

3

PIN, PISTON

4JH-11633-00-00

$38.99

4

BEARING

93310-217R7-00

Unavailable

5

GEAR, IDLER 2

1VJ-15517-00-00

Unavailable

6

SHAFT 1

1VJ-15521-00-00

$20.99

7

BEARING, CYLINDRICAL(1VJ)

93310-212R6-00

$35.99

8

GEAR, IDLER 1 (40T/15T)

1VJ-15512-00-00

Unavailable

9

BEARING, CYLINDRICAL(3TB)

93310-530C7-00

$55.99

10

STARTER ONE-WAY ASSY

3TB-15590-01-00

Unavailable

11

RACE, ONE-WAY BEARING

3TB-15594-00-00

Unavailable

12

BEARING (3R0)

93306-20009-00

$44.99

13

STARTING MOTOR UNIT

3SX-81890-00-00

$709.99

14

GEAR, STARTING MOTOR

1VJ-15511-00-00

Unavailable

15

CIRCLIP (341)

93440-11024-00

$7.49

16

BRUSH SET

3AJ-81801-00-00

Unavailable

17

O-RING (437)

93210-24235-00

Unavailable

18

ARMATURE ASSY

3AJ-81850-00-00

Unavailable

19

FRONT BRACKET ASSY

3AJ-81830-00-00

Unavailable

20

. REAR BRACKET ASSEMBLY

3AJ-81820-00-00

Unavailable

21

WASHER KIT

3AJ-81809-00-00

Unavailable

22

.. CAP

5H0-81871-00-00

Unavailable

23

GASKET

35C-81844-00-00

Unavailable

24

BOLT, FLANGE

95817-06030-00

Unavailable
