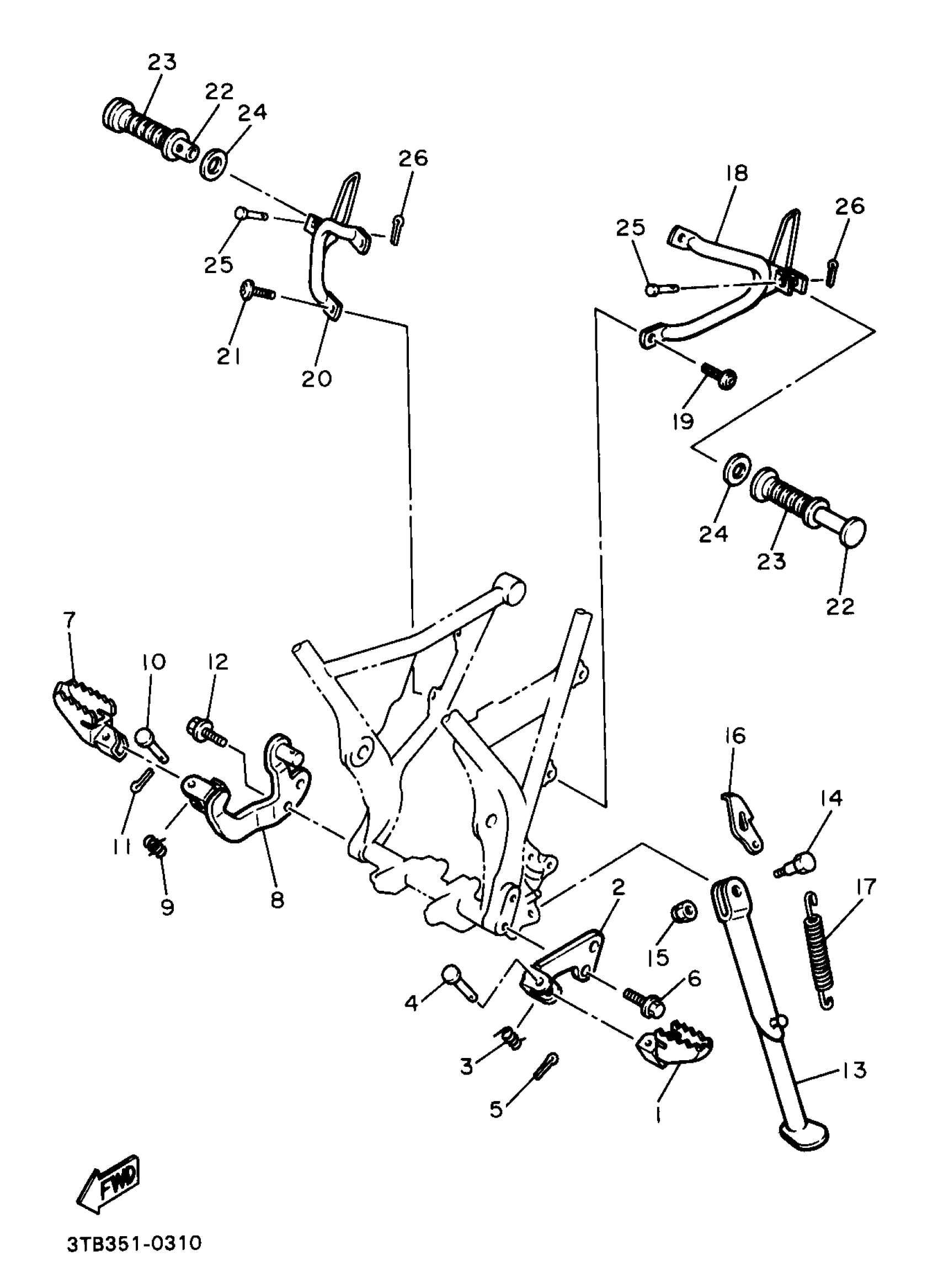

Yamaha XT600EAC (XT600E CA) 1990 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

22W-27411-01-90

$32.99

2

BRACKET, FOOTREST 1

34L-27412-00-R4

Unavailable

3

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

4

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

5

PIN, COTTER

91490-25020-00

$3.19

6

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

7

FOOTREST 2

22W-27421-01-90

$32.99

8

BRACKET, FOOTREST 2

2KF-27422-00-R4

Unavailable

9

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

10

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

11

PIN, COTTER

91490-25020-00

$3.19

12

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

13

STAND, SIDE

3YF-27311-00-00

$76.99

14

BOLT, WASHER BASED

90105-12616-00

Unavailable

15

NUT, SELF LOCKING (23X)

90185-12119-00

$11.49

16

LINK, SIDE STAND

5Y1-27315-00-00

Unavailable

17

SPRING, TENSION

90507-32020-00

Unavailable

18

BRACKET 1

26F-27432-10-00

Unavailable

19

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

20

BRACKET 2

3TB-27442-00-33

Unavailable

21

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

22

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

23

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

24

WASHER, PLATE (888)

90201-20279-00

Unavailable

25

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

26

PIN, COTTER

91490-16020-00

Unavailable
