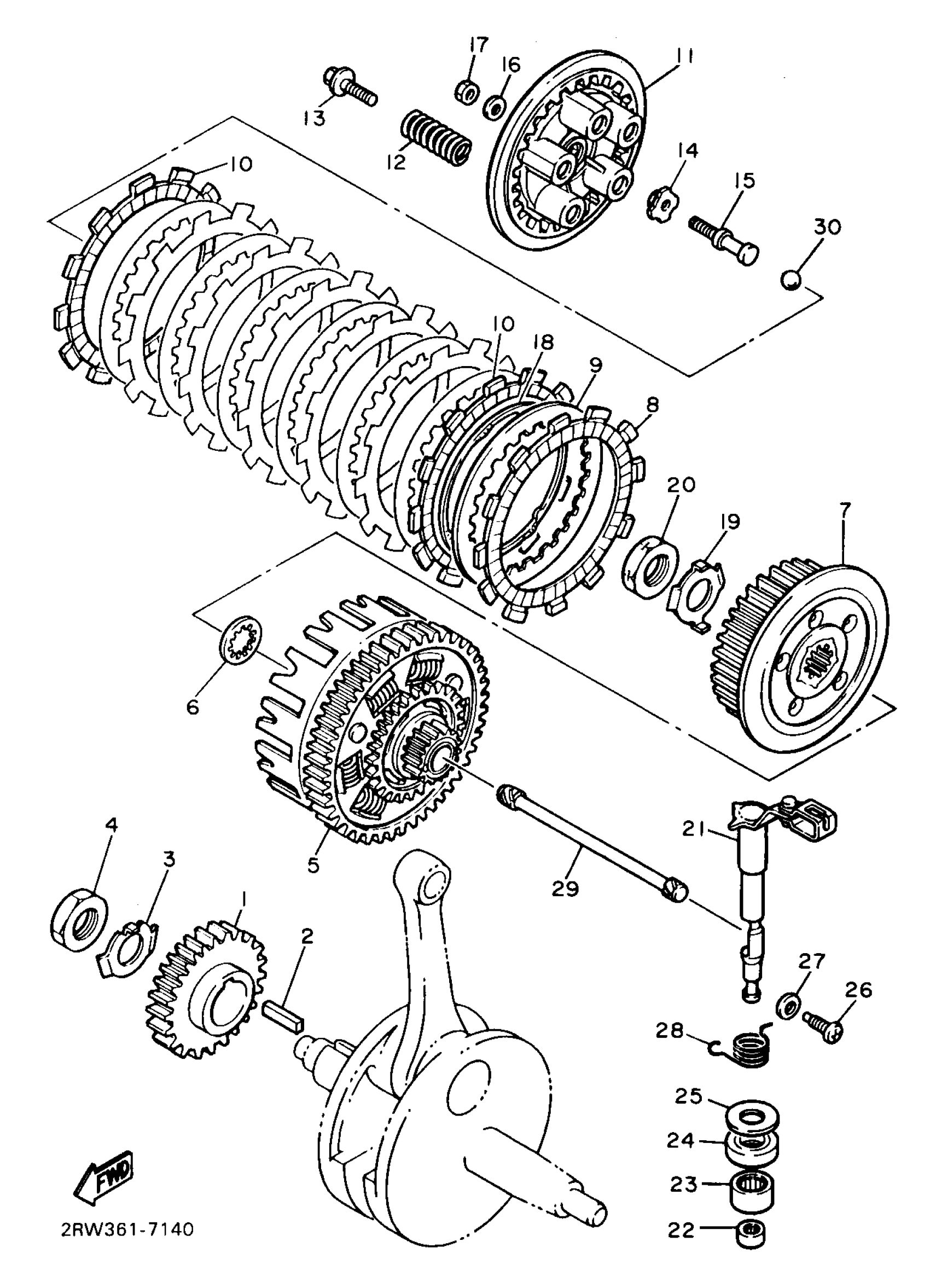

Yamaha XT600EAC (XT600E CA) 1990 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (34T)

3AJ-16111-00-00

Unavailable

2

KEY, STRAIGHT (4X7)

90282-07042-00

$9.49

3

WASHER, LOCK (5Y1)

90215-20197-00

$9.49

4

NUT (4X7)

90170-20274-00

$16.99

5

PRIMARY DRIVEN GEAR COMP.

3AJ-16150-00-00

$521.99

6

PLATE, THRUST 1

2JN-16154-00-00

$20.99

7

BOSS, CLUTCH

2JN-16371-00-00

Unavailable

8

PLATE, FRICTION 1

5Y1-16321-00-00

$18.49

9

PLATE, CLUTCH 2

360-16325-10-00

$35.99

10

PLATE, FRICTION

5Y1-16331-01-00

$29.99

11

PLATE, PRESSURE 1

5Y1-16351-00-00

$53.99

12

SPRING,COMPRESSION 2561633310

90501-23142-00

$8.49

13

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

14

PLATE, PUSH

1W1-16358-01-00

$23.99

15

ROD, PUSH 1

5Y1-16356-00-00

Unavailable

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

SPRING, CLUTCH BOSS

5Y1-16383-00-00

Unavailable

19

WASHER, LOCK (34L)

90215-20231-00

Unavailable

20

NUT (34L)

90170-20327-00

Unavailable

21

PUSH LEVER ASSEMBLY

1VJ-16380-01-00

Unavailable

22

BEARING

93317-11096-00

Unavailable

23

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

Unavailable

24

OIL SEAL (48U)

93102-17357-00

Unavailable

25

WASHER PLATE 168217580000

90201-18262-00

Unavailable

26

SCREW 425163430000

90149-08067-00

Unavailable

27

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

28

SPRING, TORSION(1VJ)

90508-14710-00

Unavailable

29

ROD, PUSH 2

5Y1-16357-00-00

Unavailable

30

BALL (1M1)

93515-32029-00

Unavailable
