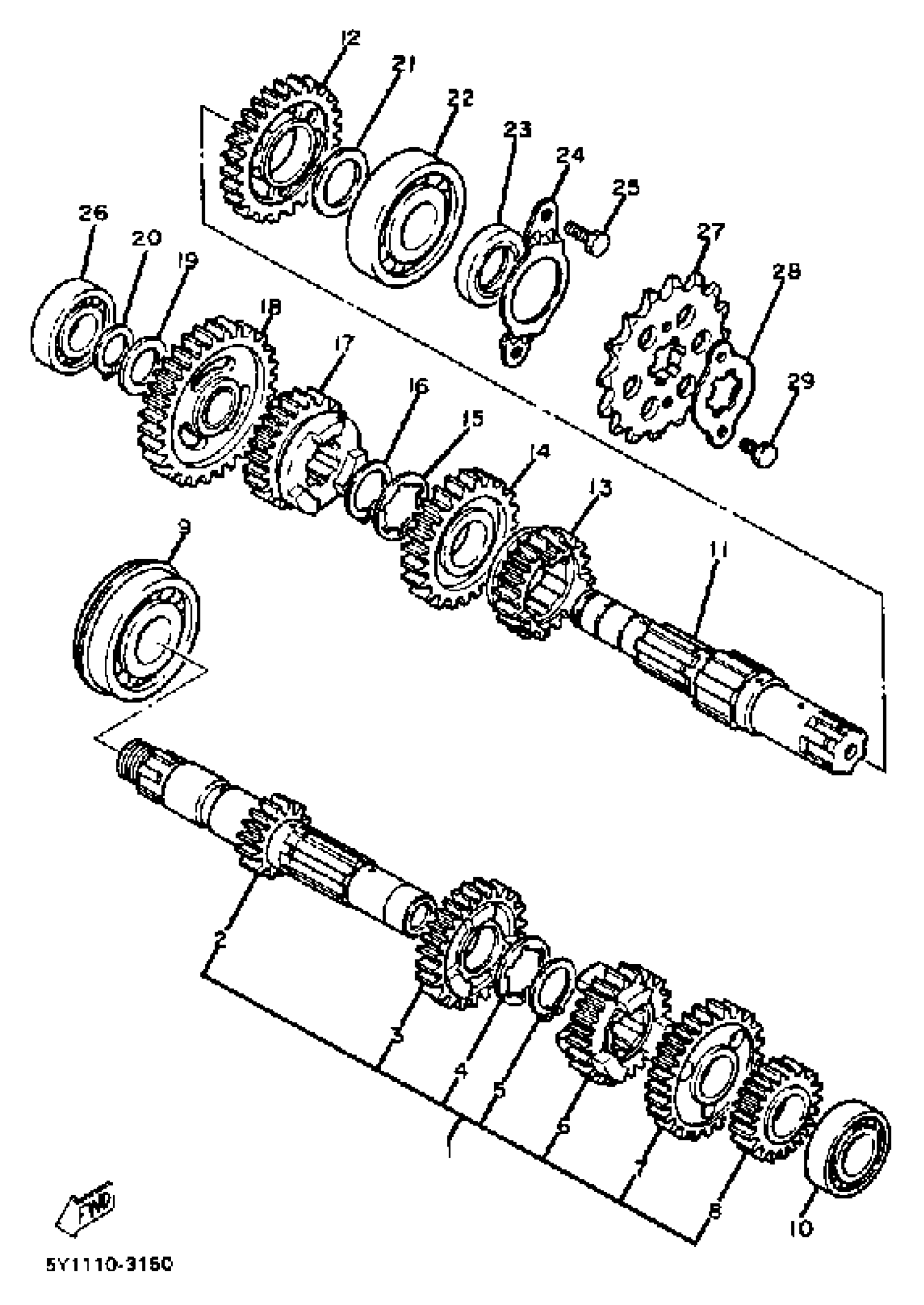

Yamaha XT550K (XT550) 1983 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE

34K-17410-00-00

Unavailable

2

. AXLE, MAIN

5Y1-17411-00-00

Unavailable

3

GEAR, 4TH PINION

34K-17141-00-00

$76.99

4

WASHER (3J3)

90209-22191-00

$7.49

5

CIRCLIP (4L0)

93440-25084-00

$5.60

6

. GEAR, 3RD PINION (20T)

5Y1-17131-00-00

Unavailable

7

. GEAR, 5TH PINION

5Y1-17151-01-00

Unavailable

8

. GEAR, 2ND PINION

5Y1-17121-00-00

Unavailable

9

BEARING (5Y1)

93306-30540-00

$71.99

10

BEARING

93306-00429-00

Unavailable

11

DRIVE AXLE ASSY

34K-17402-01-00

Unavailable

12

DRIVE AXLE ASSY

34K-17402-01-00

Unavailable

13

GEAR, 5TH WHEEL

2JT-17251-10-00

Unavailable

14

GEAR,3RD WHEEL

99999-02267-00

Unavailable

15

WASHER (3J3)

90209-22191-00

$7.49

16

CIRCLIP (4L0)

93440-25084-00

$5.60

17

GEAR,4TH WHEEL

55U-17241-00-00

Unavailable

18

GEAR, 1ST WHEEL

(5Y1-17211-01-00)

Unavailable

19

WASHER PLATE 328171160000

90201-20276-00

Unavailable

20

CIRCLIP(1AR)

99009-20400-00

Unavailable

21

WASHER, PLATE(59W)

90201-253K0-00

Unavailable

22

BEARING (5Y1)

93306-30535-00

Unavailable

23

OIL SEAL (3Y1)

93102-25226-00

Unavailable

24

PLATE, COVER

5Y1-17471-00-00

Unavailable

25

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

26

BEARING (5Y1)

93306-00426-00

Unavailable

27

SPROCKET, DRIVE (5Y1-17461-50)

93834-15080-00

Unavailable

28

HOLDER, SPROCKET

3Y1-17456-00-00

Unavailable

29

BOLT(3JP)

97017-06010-00

Unavailable
