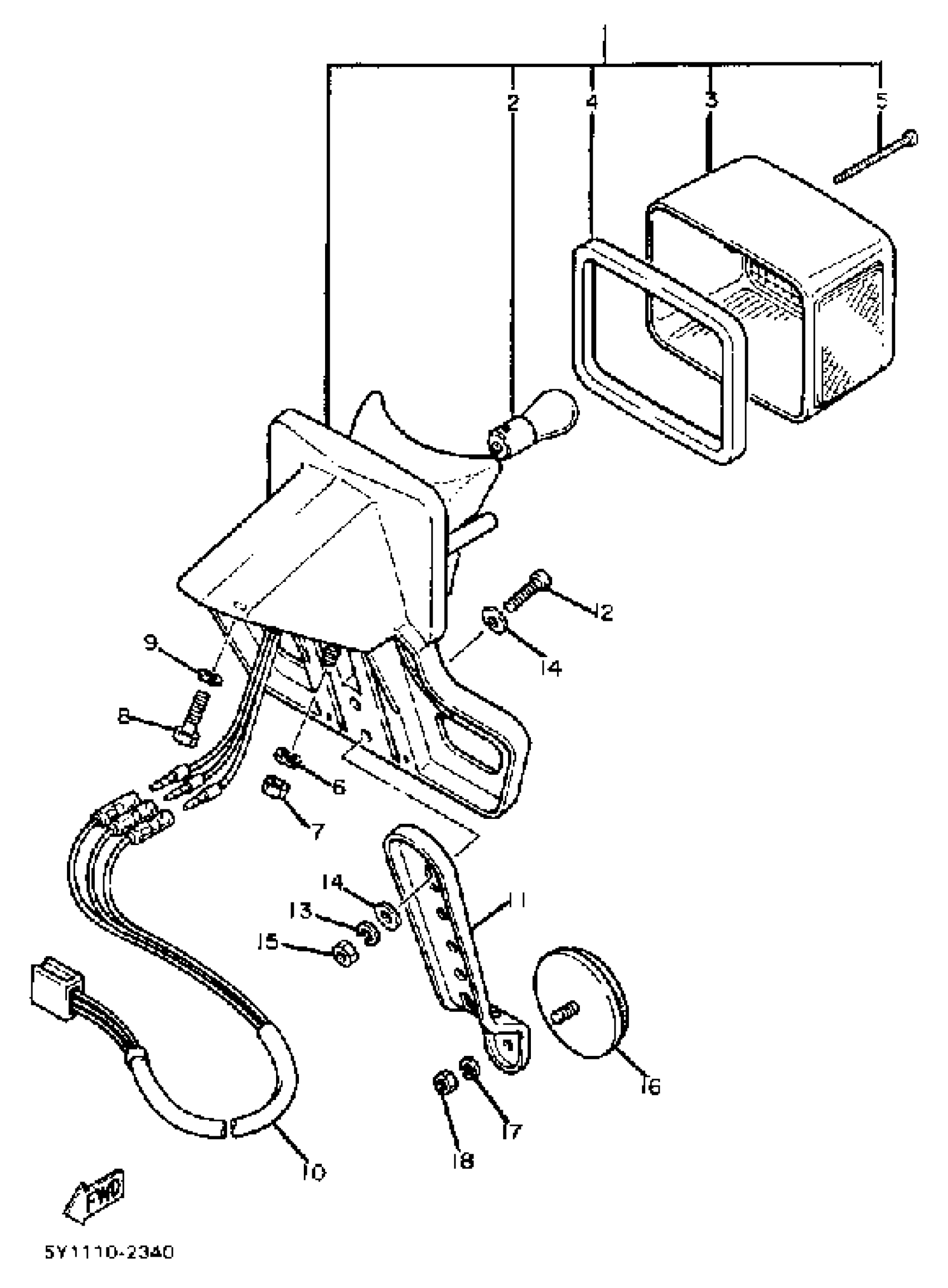

Yamaha XT550K (XT550) 1983 TAILLIGHT Diagram

#

Description
Price

1

REFLECTOR, REAR 1

449-85131-02-00

$24.04

1

TAILLIGHT ASSEMBLY

5Y1-84700-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, TAIL LAMP

1M1-84521-60-00

$34.25

4

. GASKET, LENS

15A-84545-00-00

Unavailable

5

SCREW, LENS FITTING

3Y1-84524-00-00

$2.06

6

WASHER, SPRING

92995-06100-00

$2.95

7

NUT, HEXAGON

95380-06600-00

$4.11

8

BOLT, HEXAGON

97017-06025-00

$2.78

9

WASHER, SPRING

92995-06100-00

$2.95

10

CORD, TAILLIGHT

5Y1-84717-00-00

Unavailable

11

BRACKET,REFLECT 1

5Y7-85132-00-00

Unavailable

12

SCREW, PAN

98507-06014-00

$5.76

13

WASHER, SPRING

92995-06100-00

$2.95

14

WASHER, PLATE

90201-06M08-00

$2.16

15

NUT, HEXAGON

95380-06600-00

$4.11

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

NUT, HEXAGON (663)

95380-05600-00

Unavailable
