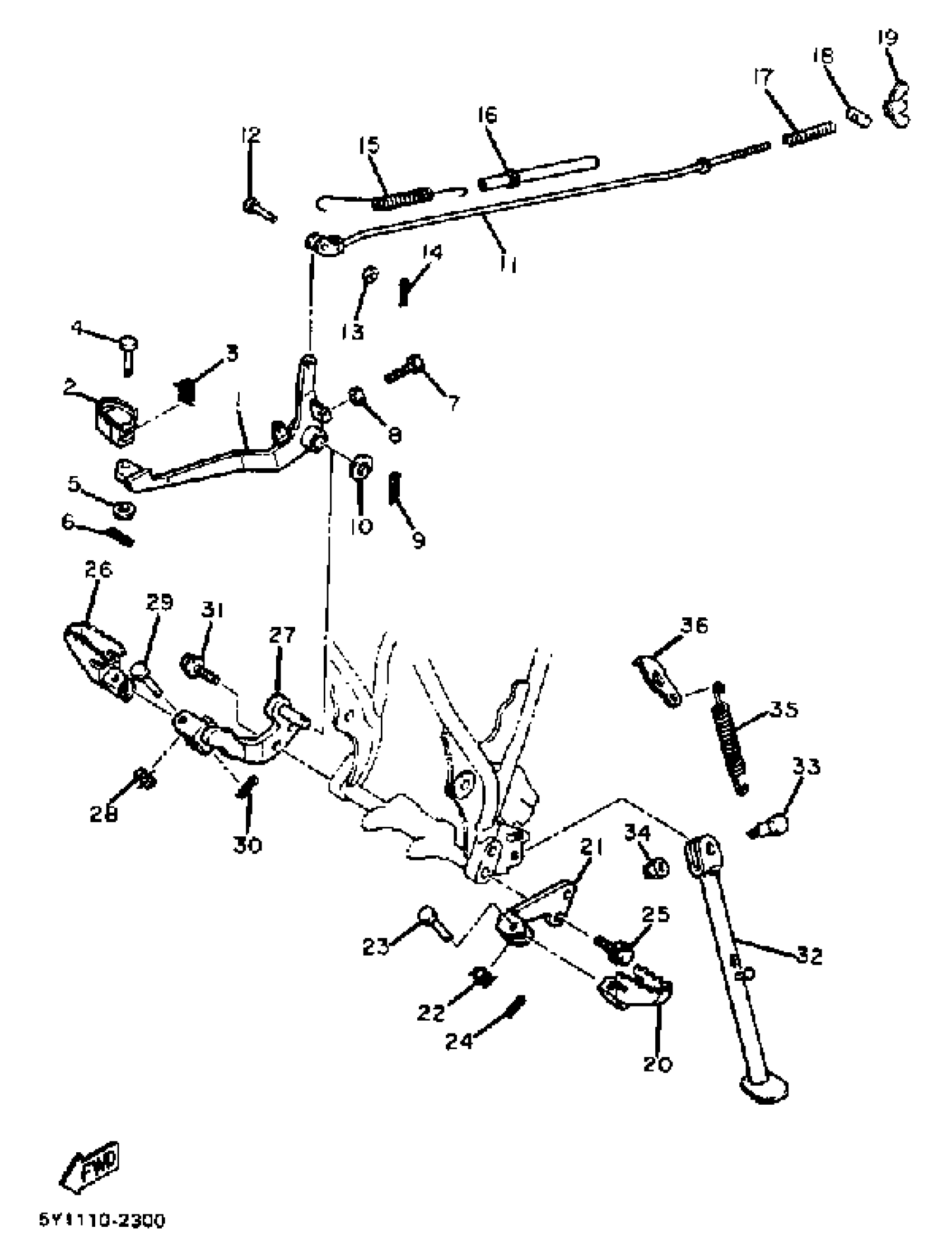

Yamaha XT550K (XT550) 1983 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5Y3-27211-01-00

Unavailable

2

PEDAL, BRAKE

55V-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

PIN, COTTER

91490-20025-00

$1.99

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

PIN COTTER

91490-30025-00

$3.99

10

WASHER, PLAIN (434)

90201-14411-00

$8.49

11

ROD, BRAKE

5Y1-27231-01-00

Unavailable

12

PIN, CLEVIS (24X)

90240-06103-00

$7.49

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

PIN, COTTER

91490-20025-00

$1.99

15

SPRING, TENSION

90506-18289-00

$14.99

16

COVER, SPRING

1M1-27244-00-00

Unavailable

17

SPRING, (180-27236-00)

90501-10245-00

Unavailable

18

PIN 1562723700

90249-12008-00

Unavailable

19

NUT (25K)

90179-06411-00

Unavailable

20

FOOTREST 1

22W-27411-01-90

Unavailable

21

BRACKET, FOOTREST 1

5Y1-27412-02-R4

Unavailable

22

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

23

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

26

FOOTREST 2

22W-27421-01-90

Unavailable

27

BRACKET, FOOTREST 2

5Y1-27422-02-R4

Unavailable

28

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

29

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

30

PIN, COTTER

91490-25020-00

Unavailable

31

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

32

STAND, SIDE

5Y1-27311-03-R4

Unavailable

33

BOLT

90109-10473-00

Unavailable

34

NUT, U

90185-10037-00

Unavailable

35

SPRING, MAIN STAND

4KN-27116-00-00

Unavailable

36

LINK, SIDE STAND

5Y1-27315-00-00

Unavailable
