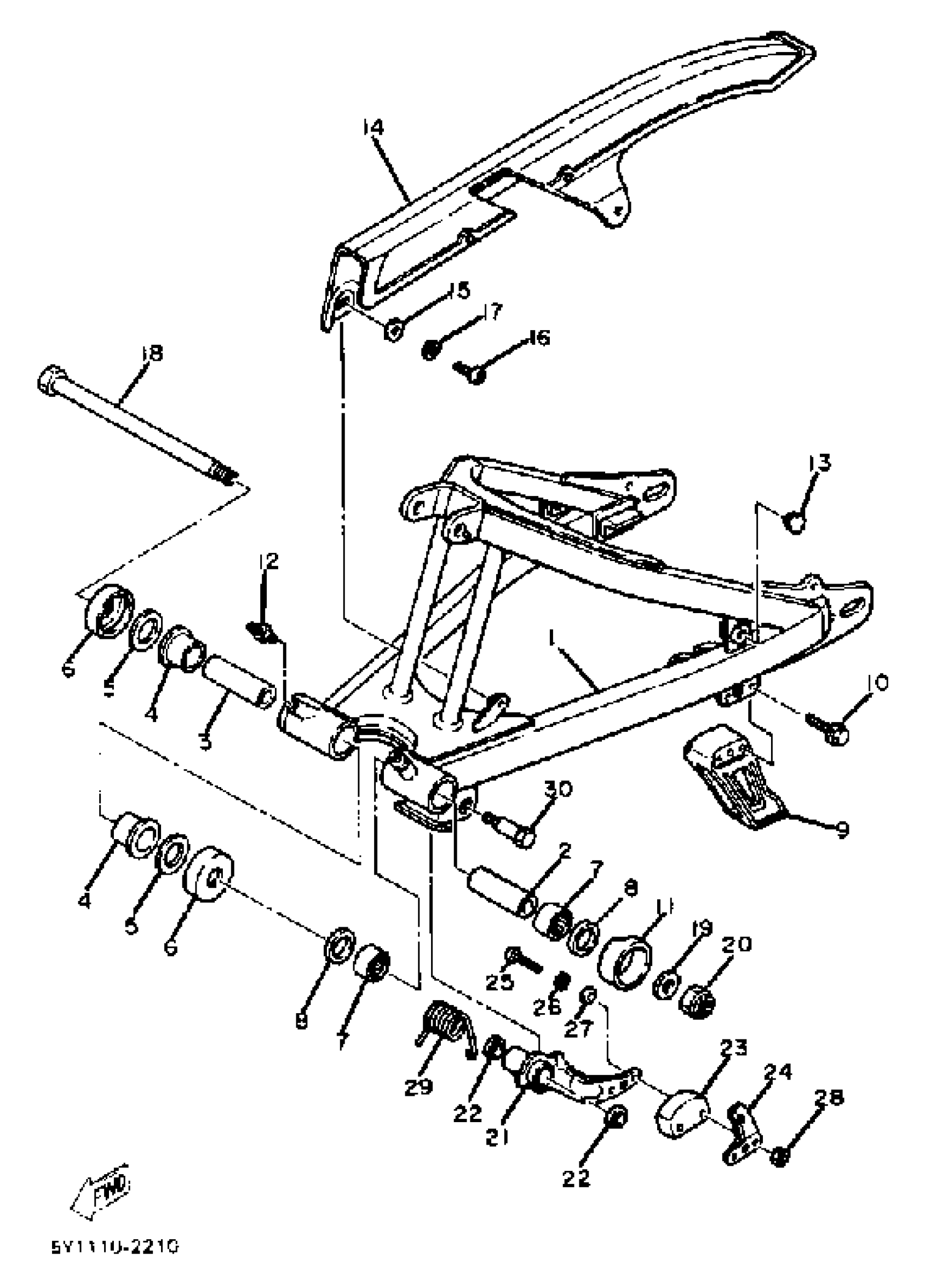

Yamaha XT550K (XT550) 1983 REAR ARM Diagram

#

Description
Price

1

REAR ARM

5Y1-22110-01-35

Unavailable

2

BUSH 1

5Y1-22123-00-00

Unavailable

3

BUSH 2

5Y1-22124-00-00

Unavailable

4

BUSH, SPEC''L NYLON

90386-24107-00

Unavailable

5

WASHER, PLATE (5Y1)

90201-251F6-00

$8.49

6

COVER, THRUST 2

4X7-22129-00-00

$22.99

7

BEARING, CYLINDER.#17

93317-42424-00

Unavailable

8

OIL SEAL, SDO-TYPE

93109-24030-00

Unavailable

9

GUARD, CHAIN

10V-22153-00-00

$45.99

10

BOLT, FLANGE

95817-06050-00

$4.24

11

SEAL, GUARD (5Y1-22151-00)

5Y1-22151-09-00

Unavailable

12

NIPPLE, GREASE

93700-06M03-00

Unavailable

13

PLUG (3Y1)

90338-11111-00

Unavailable

14

CASE, CHAIN

5Y1-22311-01-00

Unavailable

15

WASHER, PLATE (4L0)

90201-062A8-00

$8.49

16

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

17

WASHER, SPRING

92907-06100-00

Unavailable

18

SHAFT, PIVOT

5X6-22141-01-00

Unavailable

19

958-58204-00 WASHER,PLAIN

92990-16200-00

Unavailable

20

NUT, SELF-LOCKING

90185-16103-00

Unavailable

21

TENSIONER 1

5Y1-2217J-00-00

Unavailable

22

OIL SEAL (2K8)

93109-14021-00

Unavailable

23

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

24

GUIDE, CHAIN

1W1-22187-00-00

Unavailable

25

SCREW, PAN

98507-05040-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

WASHER, PLAIN (646)

92990-05600-00

Unavailable

28

NUT, HEXAGON (663)

95380-05600-00

Unavailable

29

SPRING, TORSION (1J4)

90508-35350-00

Unavailable

30

BOLT (1J4)

90109-10483-00

Unavailable
