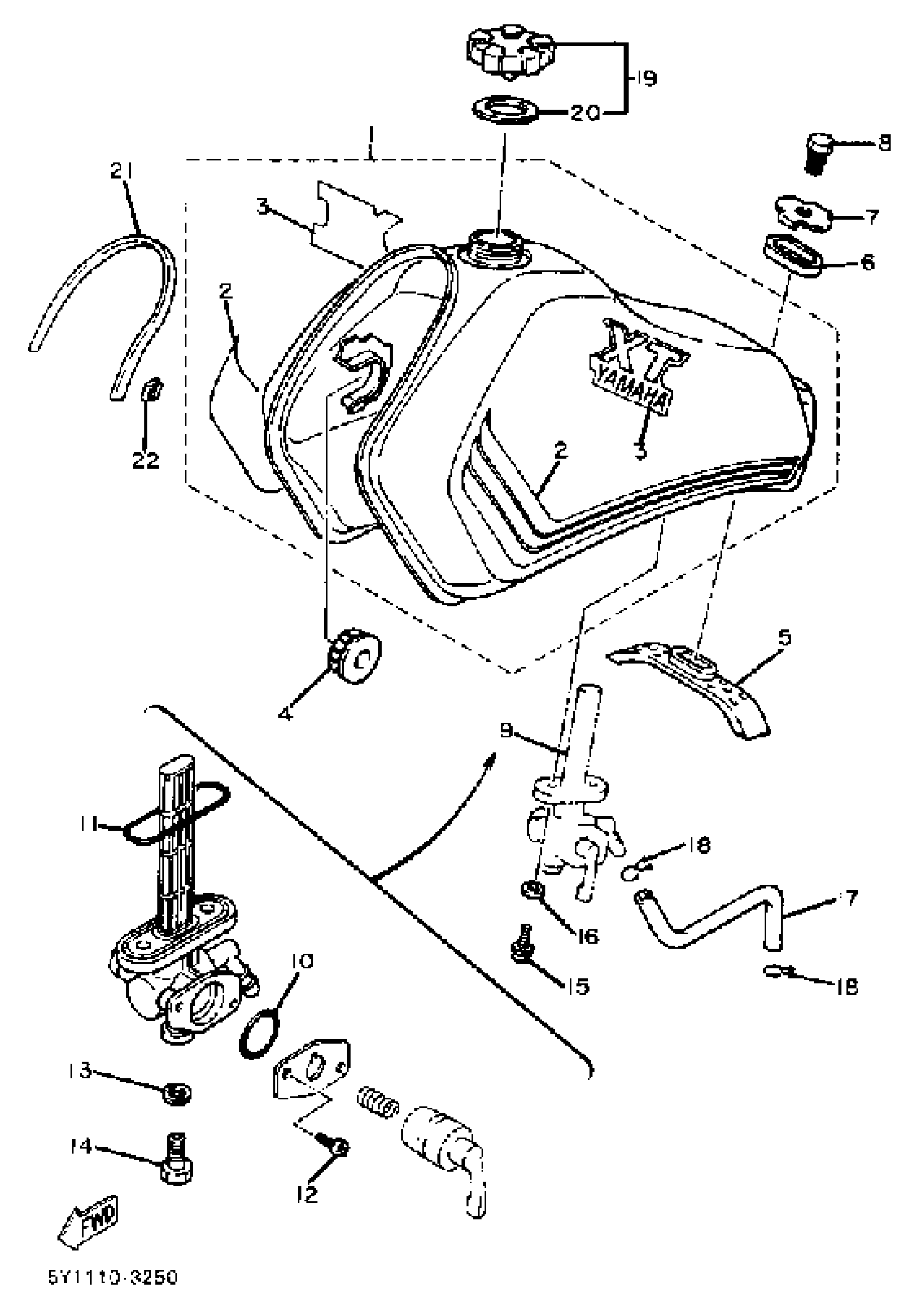

Yamaha XT550K (XT550) 1983 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

5Y1-24110-00-04

Unavailable

2

. GRAPHIC SET

5Y1-24240-10-00

Unavailable

3

. EMBLEM 1

20T-24161-00-00

Unavailable

4

DAMPER, LOCATING

4H7-24181-00-00

$6.99

5

DAMPER, LOCATING 2

15A-24182-00-00

Unavailable

6

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

7

WASHER, SPECIAL

11H-24186-00-00

Unavailable

8

BOLT, HEXAGON

97017-08016-00

$8.49

9

FUEL COCK ASSY 1

3FY-24500-01-00

$57.99

10

O-RING

2N3-24528-00-00

Unavailable

11

O-RING

2W6-24512-00-00

$7.99

12

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

13

GASKET, DRAIN PLUG

2G2-24522-00-00

$6.99

14

. PLUG, DRAIN

2G2-24543-00-00

Unavailable

15

SCREW 256241430000

90149-06011-00

$5.60

16

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

17

HOSE (L200)

90445-10752-00

Unavailable

18

CLIP

90467-090A2-00

Unavailable

19

CAP ASSY

3Y1-24610-01-00

Unavailable

20

. GASKET, CAP

5Y1-24612-00-00

Unavailable

21

PLATE, MOLD

5Y1-24189-00-00

Unavailable

22

CLIP

90468-03063-00

Unavailable
