FRONT FORK

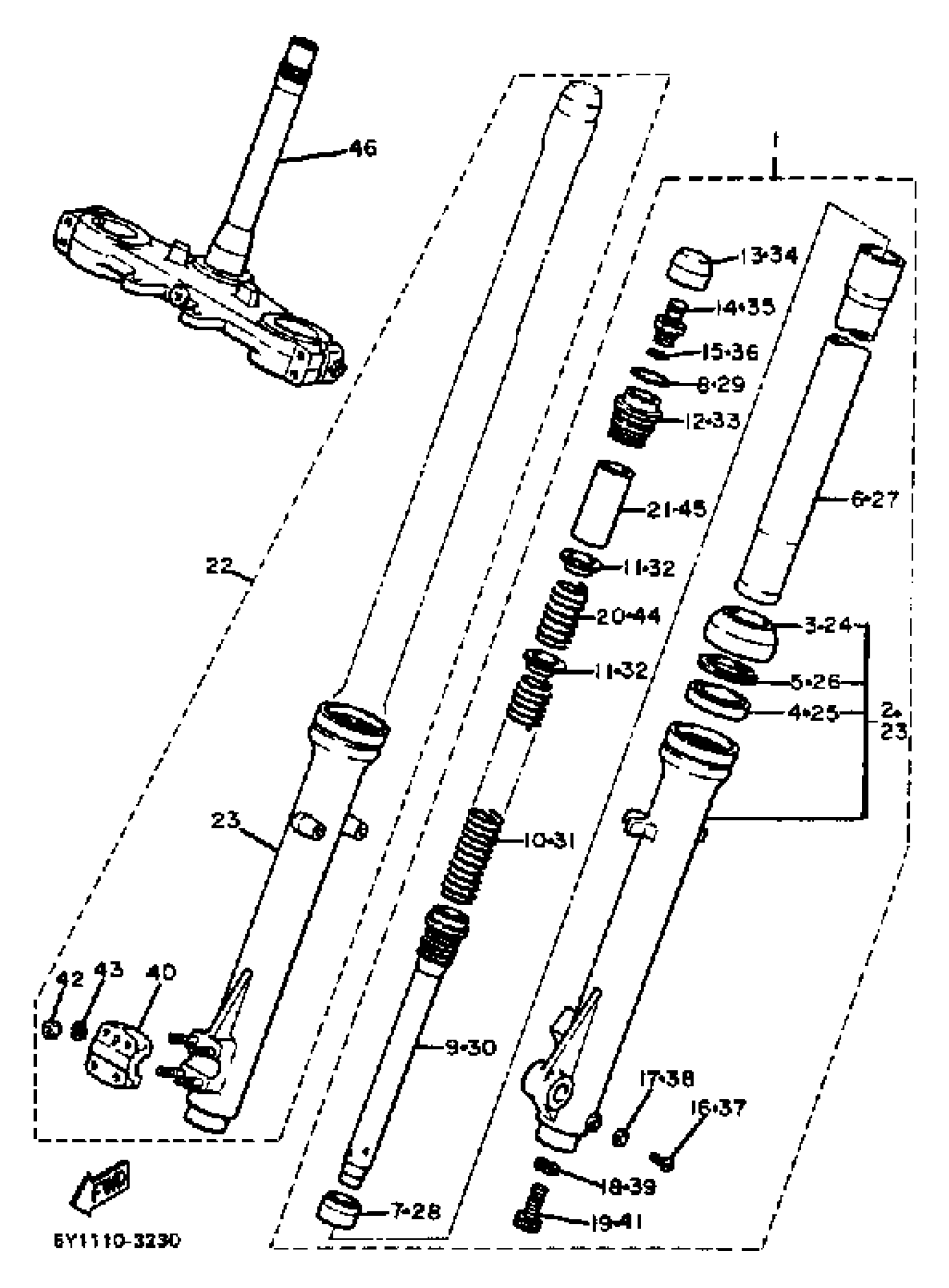

Yamaha XT550K (XT550) 1983 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
(5Y1-23102-00-00)
Unavailable
2
. TUBE, OUTER 1
5Y1-23126-00-38
Unavailable
3
.. SEAL, DUST
5Y1-23144-00-00
Unavailable
6
. TUBE, INNER 1
5Y1-23124-00-00
Unavailable
7
SPINDLE, TAPER
(3R4-23173-L0-00)
Unavailable
9
CYLINDER, FRTFRK
(5Y1-23170-00-00)
Unavailable
10
. SPRING, FRONT FORK
5Y1-23141-00-00
Unavailable
11
. SEAT, SPRING UPPER
1W4-23142-L0-00
Unavailable
12
. BOLT, CAP
1W4-23111-L1-00
Unavailable
13
. COVER, VALVE
1W1-23185-L0-00
Unavailable
14
. AIR VALVE
509-23190-L0-00
Unavailable
15
. O-RING
509-23163-L0-00
Unavailable
16
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
17
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
18
GASKET
2K8-23158-L0-00
Unavailable
19
BOLT
3R4-23181-L0-00
Unavailable
20
. SPRING, REBOUND
5Y1-23151-00-00
Unavailable
21
. SPACER
5Y1-23118-00-00
Unavailable
22
FRONT FORK ASSEMBLY R
(5Y1-23103-00-00)
Unavailable
23
TUBE, OUTER 2
(5Y1-23136-00-38)
Unavailable
24
.. SEAL, DUST
5Y1-23144-00-00
Unavailable
27
. TUBE, INNER 1
5Y1-23124-00-00
Unavailable
28
SPINDLE, TAPER
(3R4-23173-L0-00)
Unavailable
30
CYLINDER, FRTFRK
(5Y1-23170-00-00)
Unavailable
31
. SPRING, FRONT FORK
5Y1-23141-00-00
Unavailable
32
. SEAT, SPRING UPPER
1W4-23142-L0-00
Unavailable
33
. BOLT, CAP
1W4-23111-L1-00
Unavailable
34
. COVER, VALVE
1W1-23185-L0-00
Unavailable
35
. AIR VALVE
509-23190-L0-00
Unavailable
36
. O-RING
509-23163-L0-00
Unavailable
37
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
38
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
39
GASKET
2K8-23158-L0-00
Unavailable
40
HOLDER, AXLE
4V2-23167-L0-00
Unavailable
41
BOLT
3R4-23181-L0-00
Unavailable
42
NUT(6TA)
95317-06600-00
Unavailable
43
WASHER, SPRING
92995-06100-00
Unavailable
44
. SPRING, REBOUND
5Y1-23151-00-00
Unavailable
45
. SPACER
5Y1-23118-00-00
Unavailable
46
UNDER BRACKET
(5Y1-23340-00-98)
Unavailable
