Description

Price

1

CYLINDER

5Y1-11310-00-00

Unavailable

2

O-RING (5Y1)

93210-97524-00

$16.99

3

ABSORBER

583-11127-00-00

$7.99

4

GASKET, CYLINDER

1VJ-11351-00-00

Unavailable

5

WASHER, PLATE (33N)

90201-094G1-00

$9.49

6

NUT(6L2)

95333-08600-00

$2.49

7

WASHER, PLATE (583)

90201-10590-00

$5.60

8

NUT

90179-10021-00

$25.99

9

WASHER, PLATE 3711117500

90201-10124-00

$9.49

10

NUT (2Y5)

90179-10279-00

$8.49

11

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

12

GASKET, CYLINDER HEAD 1

5Y1-11181-00-00

Unavailable

13

PIN, DOWEL

99530-12016-00

$4.89

14

BOLT, WASHER BASED

90105-08464-00

Unavailable

15

BOLT,WASHER BASED

90105-08465-00

Unavailable

16

WASHER, PLATE

90201-080L7-00

Unavailable

17

GASKET (5Y1)

90430-08178-00

Unavailable

18

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

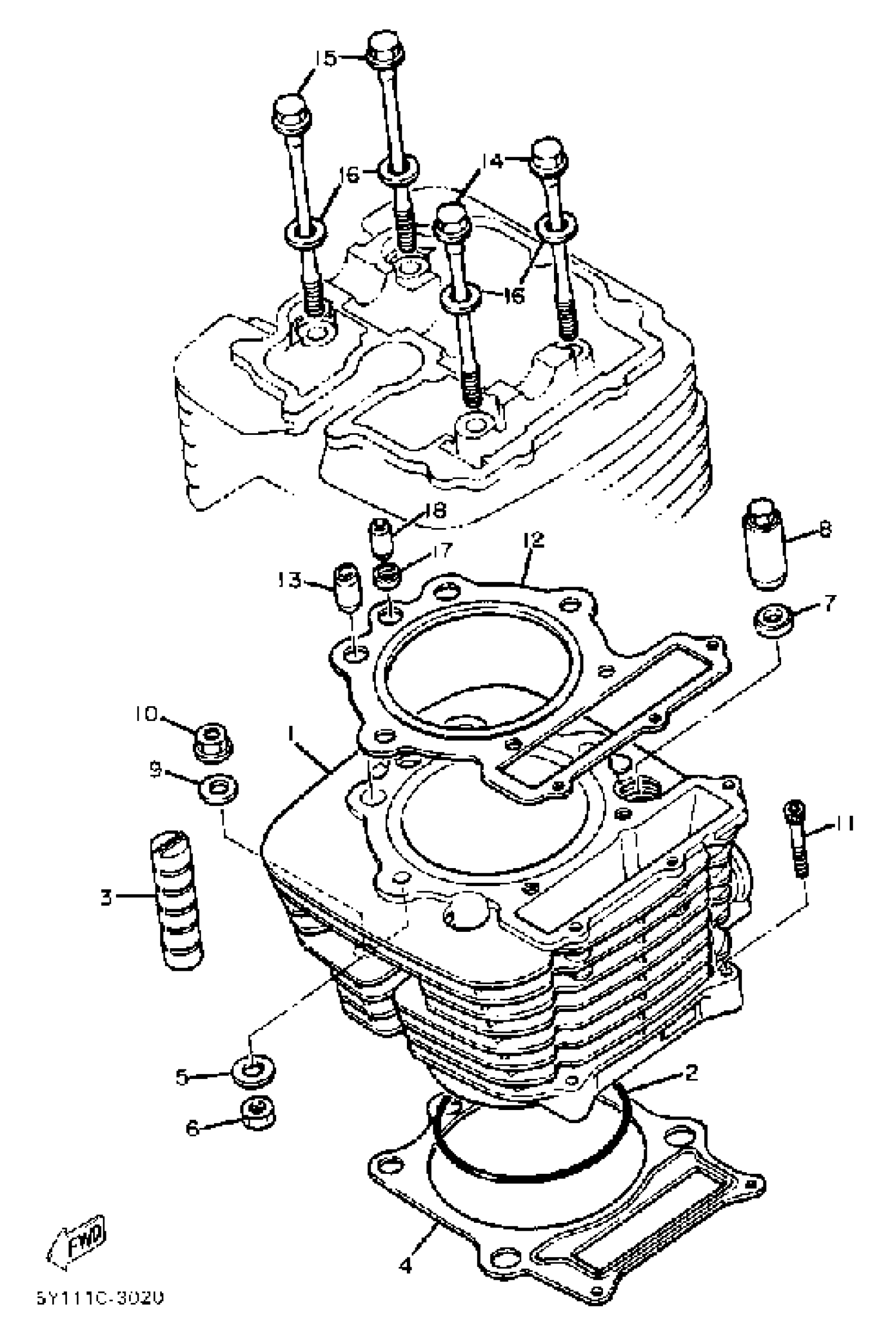

Yamaha XT550K (XT550) 1983 CYLINDER Diagram

CYLINDER

O-RING (5Y1)

ABSORBER

GASKET, CYLINDER

WASHER, PLATE (33N)

NUT(6L2)

WASHER, PLATE (583)

NUT

WASHER, PLATE 3711117500

NUT (2Y5)

BOLT, HEXAGON SOCKET HEAD(1VJ)

GASKET, CYLINDER HEAD 1

PIN, DOWEL

BOLT, WASHER BASED

BOLT,WASHER BASED

WASHER, PLATE

GASKET (5Y1)

PIN, DOWEL(3XW)
