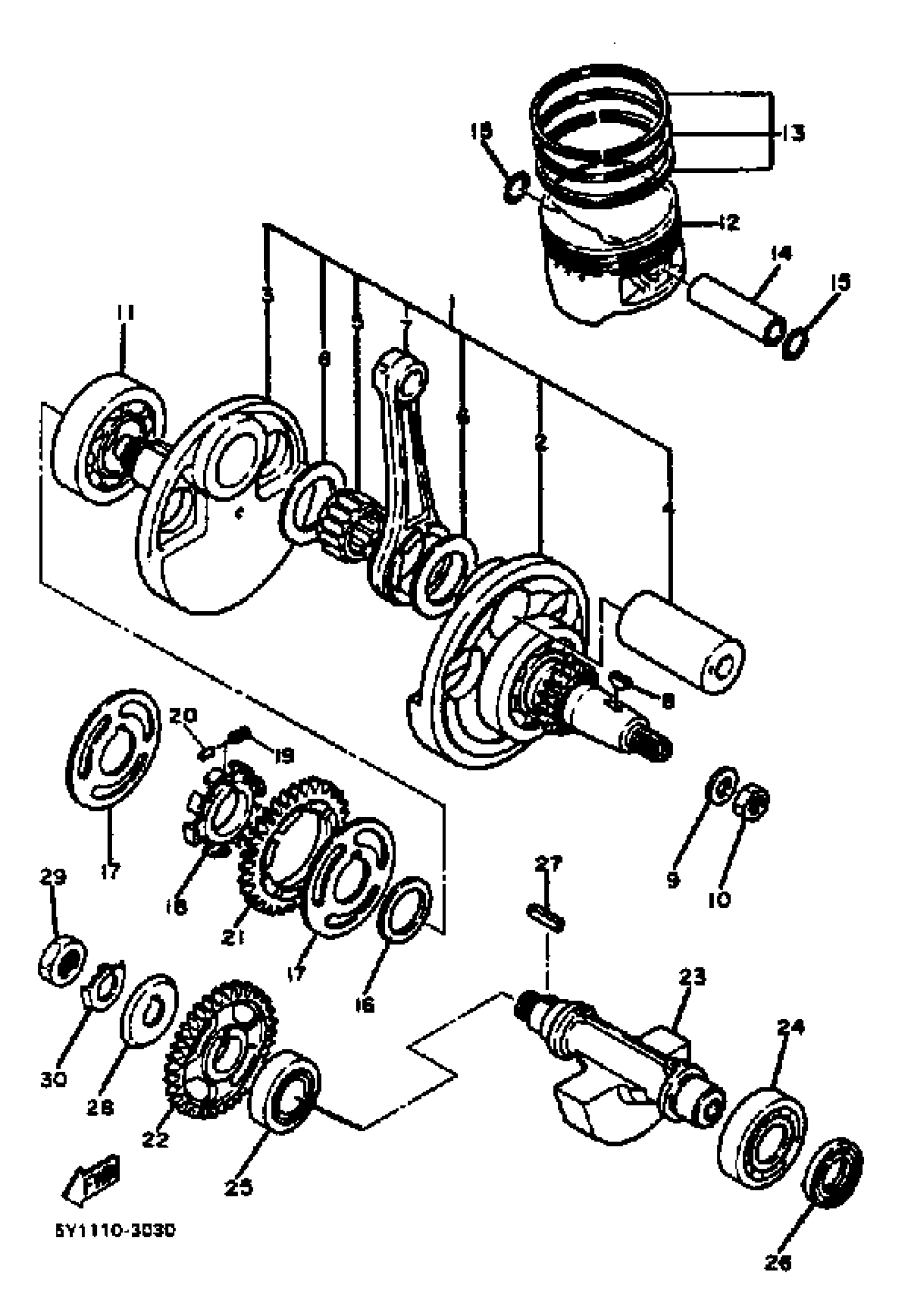

Yamaha XT550K (XT550) 1983 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

5Y1-11400-00-00

Unavailable

2

CRANK 1

(5Y1-11412-09-00)

Unavailable

3

. CRANK 2

34K-11422-00-00

Unavailable

4

. PIN, CRANK 1

5Y1-11681-00-00

Unavailable

5

BEARING

93310-6340F-00

Unavailable

6

WASHER(24V)

90209-34254-00

$5.60

7

ROD, CONNECTING

34K-11651-00-00

Unavailable

8

KEY, WOODRUFF

90280-05001-00

$12.49

9

WASHER, PLATE

90201-140A6-00

Unavailable

10

NUT

90179-14317-00

$21.99

11

BEARING (3GV)

93306-30702-00

$74.99

12

PISTON STD (STD)

5Y1-11631-01-A0

Unavailable

12

PISTON 1 O/S 0.25 (1ST O/S 0.25MM)

5Y1-11635-01-00

Unavailable

12

PISTON 3 O/S 0.75 (3RD O/S 0.75MM)

5Y1-11637-01-00

Unavailable

13

PISTON RINGSET STD (1ST O/S)

5Y1-11610-00-00

Unavailable

13

PISTON RINGSET 1ST (1ST O/S)

5Y1-11610-10-00

Unavailable

13

PISTON RINGSET 3RD (3RD O/S)

5Y1-11610-30-00

Unavailable

14

PIN, PISTON

5A8-11633-00-00

Unavailable

15

CIRCLIP 256116340000

93450-24028-00

Unavailable

16

WASHER, PLATE (5Y1)

90201-301F4-00

Unavailable

17

WASHER, BEARING CVR

(5Y1-11565-00-00)

Unavailable

18

BOSS, BUFFER

5Y1-11496-01-00

Unavailable

19

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

20

PIN, DOWEL

93605-10090-00

Unavailable

21

GEAR, DRIVE

2JT-11536-00-00

Unavailable

22

GEAR, BALANCE WT 44T

5Y1-11531-00-00

Unavailable

23

WEIGHT 1

5Y1-11454-00-00

Unavailable

24

BEARING (3Y1)

93306-30525-00

Unavailable

25

BEARING, CYLINDER.#13

93313-92513-00

Unavailable

26

OIL SEAL (5Y1)

93101-25106-00

Unavailable

27

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable

28

PLATE, BREATHER 2

34K-11145-00-00

Unavailable

29

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

30

WASHER, LOCK(24V)

90215-16242-00

Unavailable
