CARBURETOR

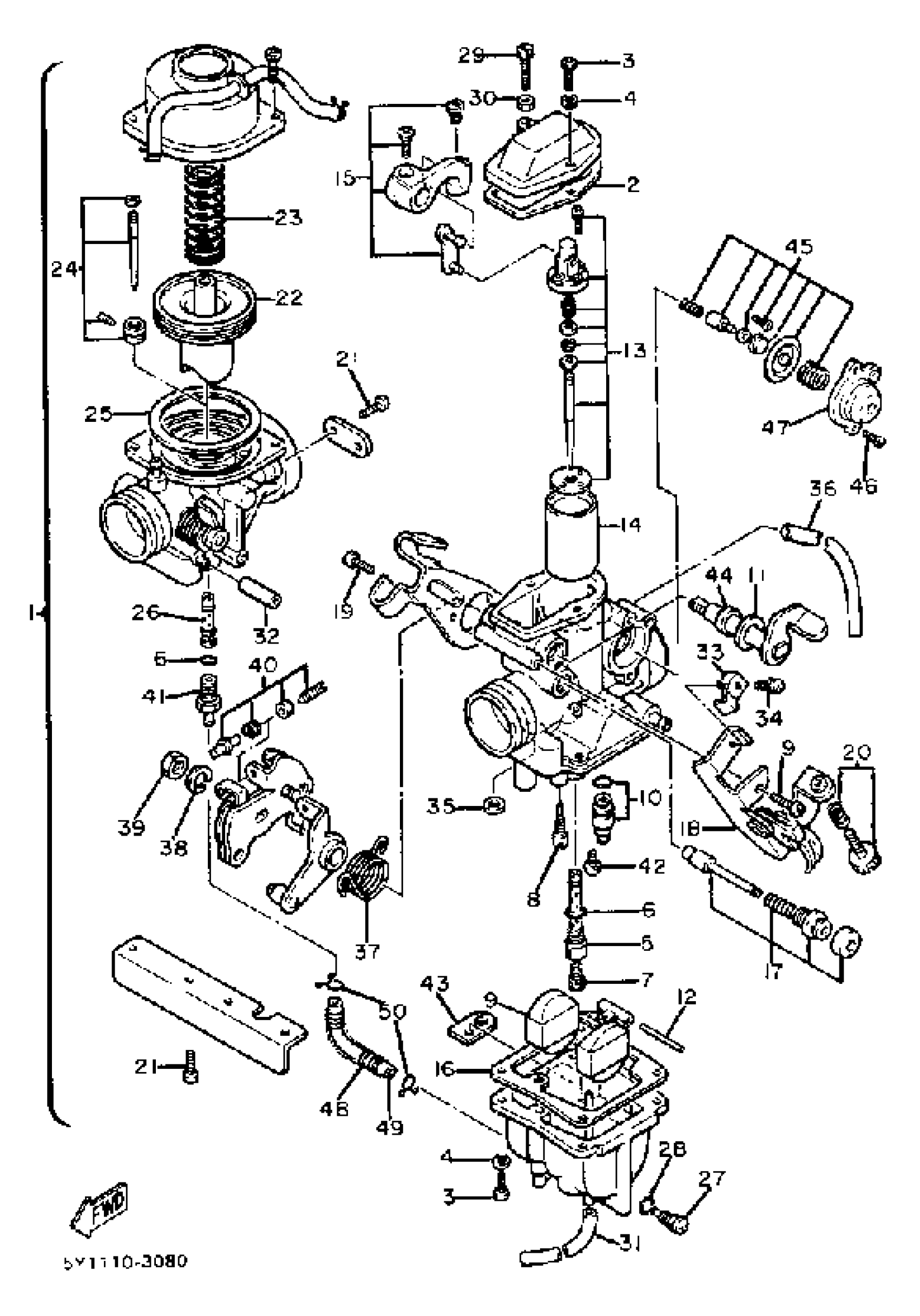

Yamaha XT550K (XT550) 1983 CARBURETOR Diagram
#
1
CARBURETOR ASY 1
5Y1-14301-04-00
Unavailable
5
. NOZZLE, MAIN
5Y1-14341-26-00
Unavailable
8
. JET, PILOT #48 (#048)
396-14342-24-00
Unavailable
11
. WASHER, PLAIN
5Y1-14357-00-00
Unavailable
12
. PIN, FLOAT
6E5-14386-01-00
Unavailable
13
. NEEDLE SET
5Y1-1490J-10-00
Unavailable
14
VALVE, THROTTLE 1
(5Y1-14312-45-00)
Unavailable
15
. CABLE CONNECT SET
5Y1-14203-00-00
Unavailable
16
GASKET, FLOAT CHAMBER
5Y1-14384-00-00
Unavailable
17
. STARTER SET
5Y1-1410A-00-00
Unavailable
18
. LEVER CMPLT 2
5Y1-14209-00-00
Unavailable
19
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
20
. THROTTLE SCREW SET
5Y1-14103-00-00
Unavailable
21
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
22
. VALVE ASSEMBLY
5Y1-14340-00-00
Unavailable
23
. SPRING
5Y1-14286-00-00
Unavailable
24
. NEEDLE SET
5Y1-1490J-00-00
Unavailable
25
GASKET
5Y1-14398-00-00
Unavailable
26
. NOZZLE, MAIN
5Y1-14355-00-00
Unavailable
27
PLUG, SCREW
5Y1-14115-00-00
Unavailable
28
O-RING
5Y1-14397-00-00
Unavailable
29
. SCREW, PAN HEAD
98580-04020-00
Unavailable
30
NUT(6L4)
95380-04700-00
Unavailable
31
PIPE
5Y1-14396-00-00
Unavailable
32
PIPE
5Y1-14349-00-00
Unavailable
33
. STOPPER
5Y1-14377-00-00
Unavailable
34
SCREW
677-24444-09-00
Unavailable
35
GASKET
5Y1-14536-00-00
Unavailable
36
PIPE
5Y1-14197-00-00
Unavailable
37
. SPRING, THRTL VALVE
5Y1-14131-00-00
Unavailable
38
. WASHER, SPRING
5Y1-14356-00-00
Unavailable
39
. NUT
5Y1-14358-00-00
Unavailable
40
. STOP SCREW SET
5Y1-1490K-00-00
Unavailable
41
. JET, MAIN 125
5Y1-14343-63-00
Unavailable
42
SCREW, BIND(6L2)
98980-04006-00
Unavailable
43
PLATE
5Y1-14146-00-00
Unavailable
44
O-RING
5Y1-14572-00-00
Unavailable
45
DIAPHRAGM SET 1
5Y1-1490A-00-00
Unavailable
46
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
47
. COVER 1
5Y1-14293-01-00
Unavailable
48
. SPRING
5Y1-14556-00-00
Unavailable
49
. PIPE
5Y1-14148-00-00
Unavailable
50
. CLIP
5Y1-14137-00-00
Unavailable
