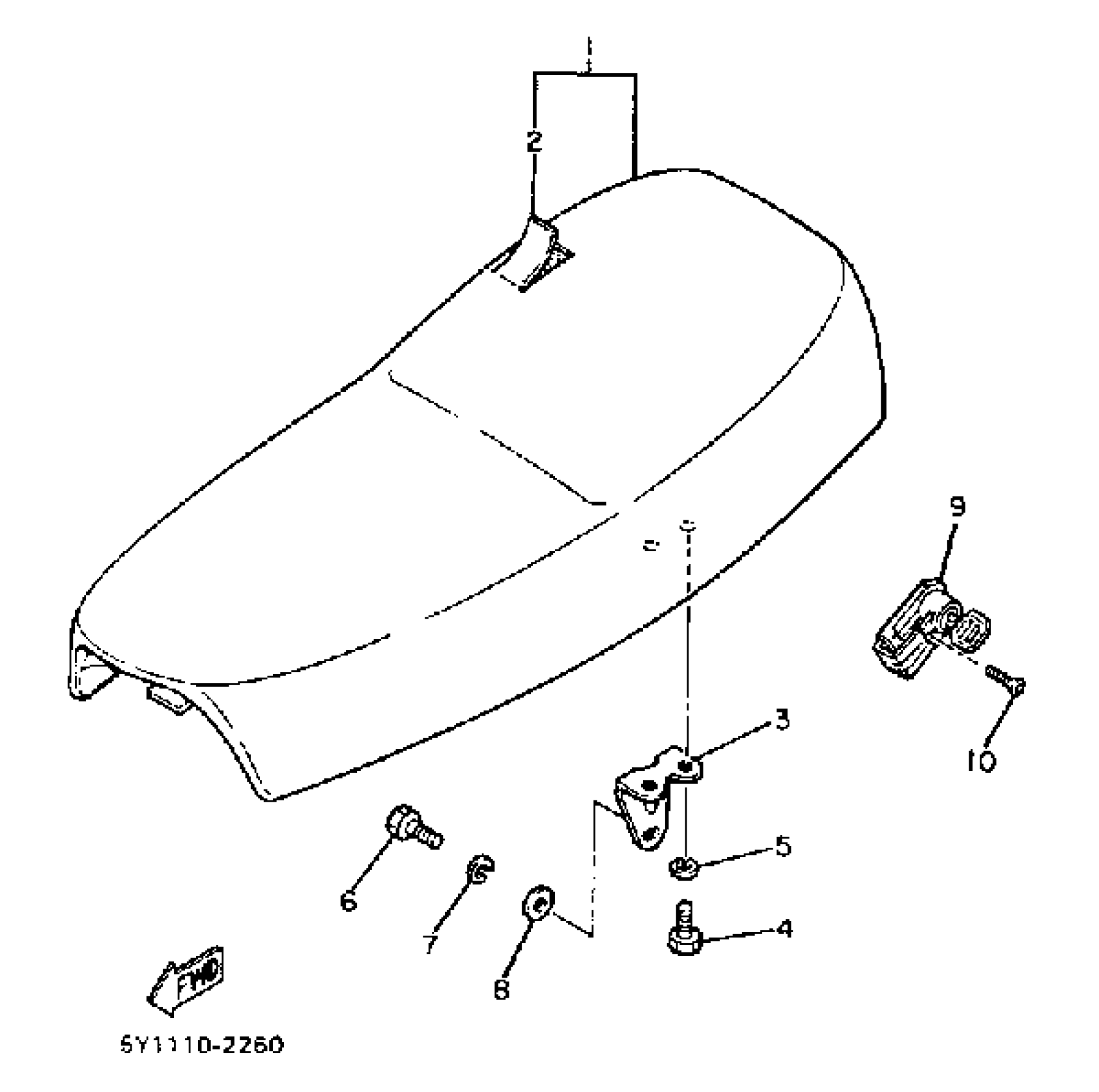

Yamaha XT550J (XT550) 1982 SEAT Diagram

#

Description

Price

1

SEMI-DBL-SEAT ASSEMBLY

5Y3-24770-00-00

Unavailable

2

. COVER, DOUBLE SEAT

5Y1-24731-00-00

Unavailable

3

BRACKET, SEAT

43F-24738-00-00

Unavailable

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

5

WASHER, SPRING

92995-06100-00

$2.95

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

7

WASHER, SPRING

92995-06100-00

$2.95

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

HELMET HANGER ASSY

5H0-21308-01-00

$77.48

10

SCREW, FLAT

98707-06014-00

$5.76
