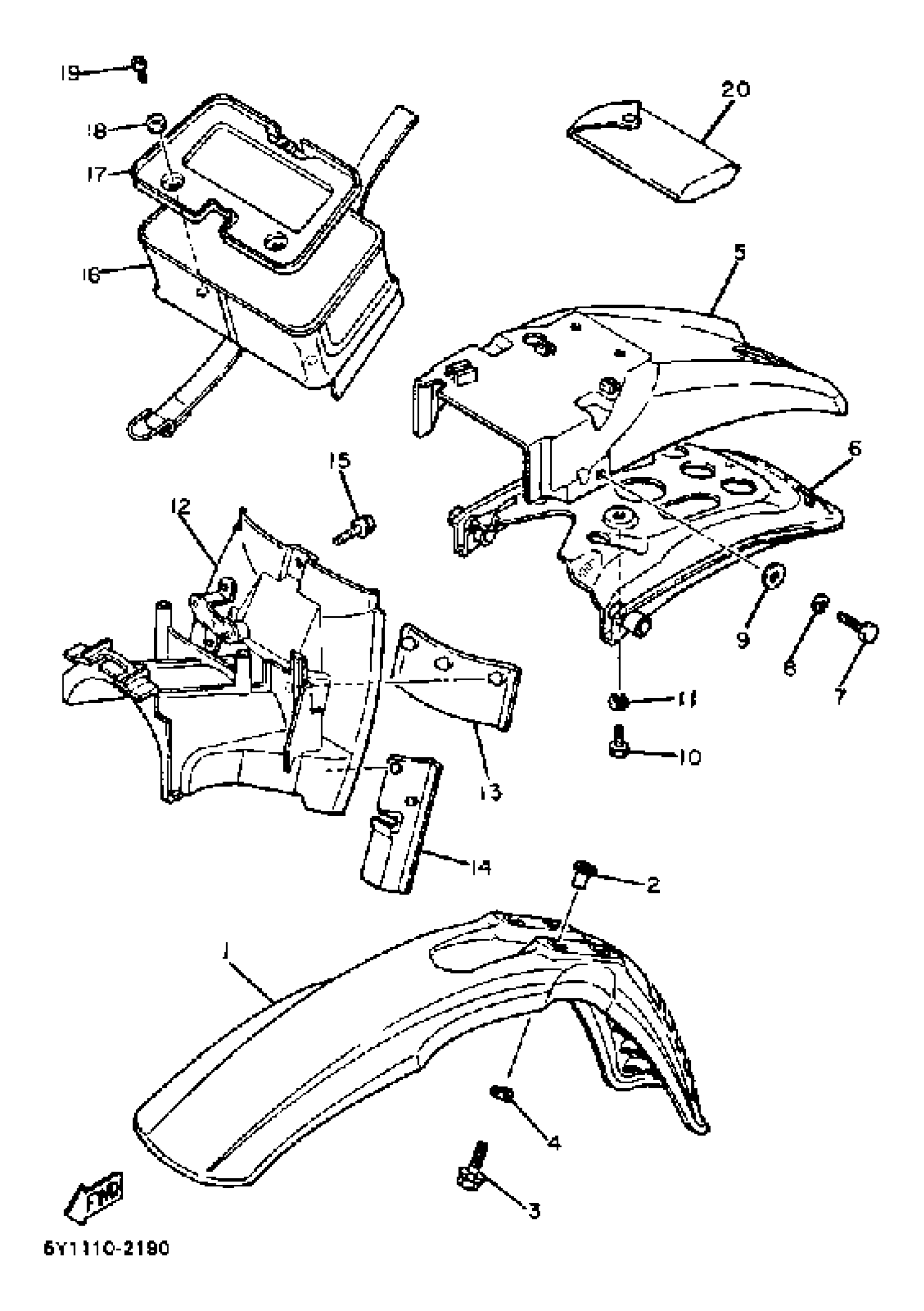

Yamaha XT550J (XT550) 1982 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5Y1-21511-00-00

Unavailable

2

COLLAR (3Y2)

90387-07789-00

$9.49

3

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

FENDER, REAR

5Y1-21611-00-00

$93.99

6

REINFORCEMENT

5Y1-21670-01-00

Unavailable

7

BOLT, HEXAGON

97017-08025-00

$10.49

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

WASHER, PLATE

90201-06M08-00

Unavailable

10

BOLT(8CP)

97017-06014-00

$8.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

GUARD, MUD

(5Y1-21620-01-00)

Unavailable

12

GUARD, MUD

(5Y1-21620-01-00)

Unavailable

13

FLAP

1M1-21621-00-00

$16.49

14

FLAP

(5Y1-21621-00-00)

Unavailable

15

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

16

CARRIER BOX ASSEMBLY

5Y1-24850-00-00

Unavailable

17

BRACKET, CARRIER 2

5Y1-24833-01-00

Unavailable

18

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

19

SCREW, PAN

98507-06014-00

Unavailable

20

TOOL KIT

1LN-W2810-01-00

Unavailable
