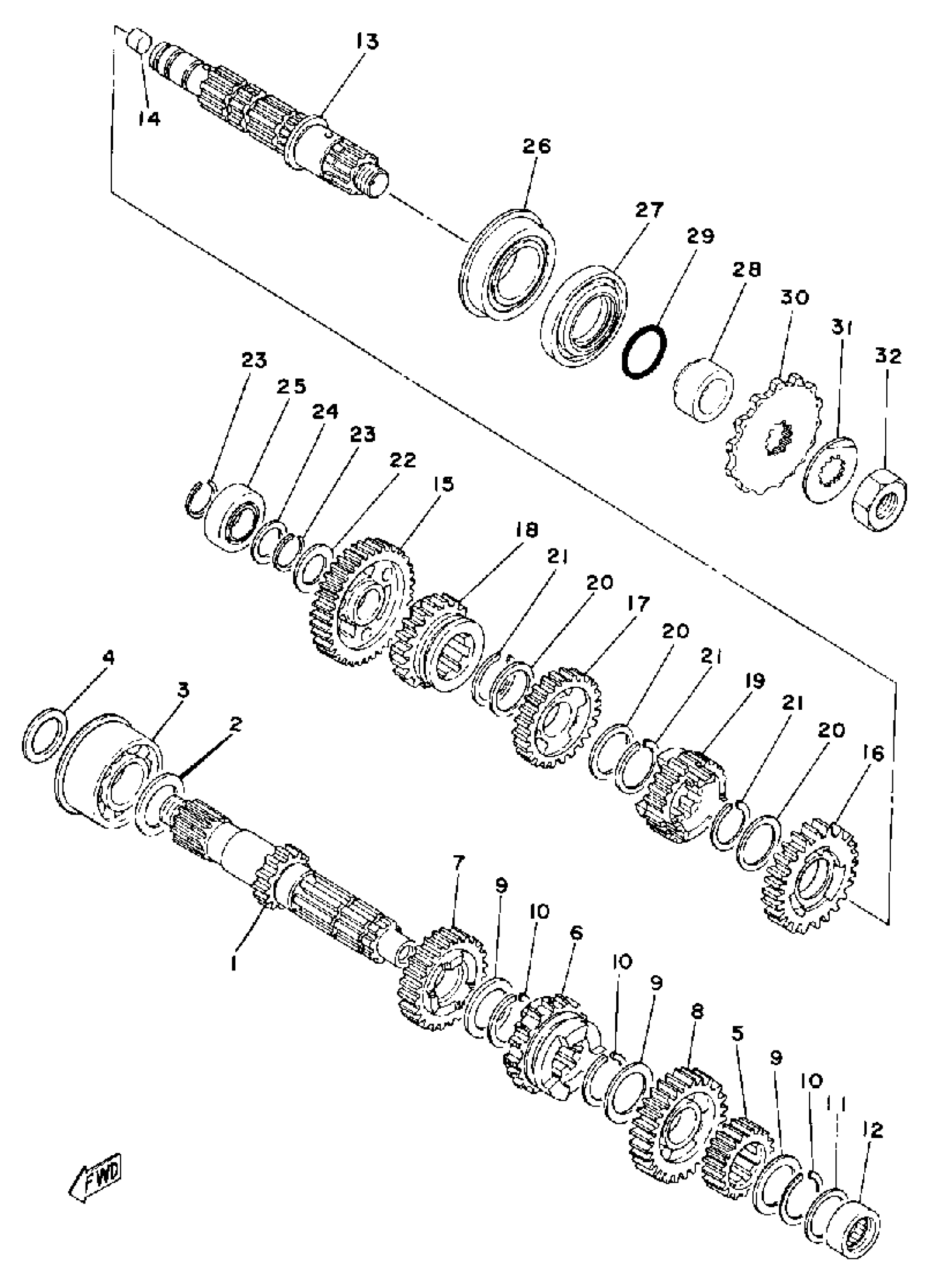

Yamaha XT500H (XT500) 1981 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

583-17411-01-00

Unavailable

2

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

3

BEARING (4R8)

93306-20546-00

Unavailable

4

WASHER, PLATE (3X0)

90201-252A4-00

Unavailable

5

GEAR, 2ND PINION

583-17121-00-00

Unavailable

6

GEAR, 3RD PINION

583-17131-02-00

Unavailable

7

GEAR, 4TH PINION

583-17141-00-00

$79.99

8

GEAR, 5TH PINION

583-17151-01-00

Unavailable

9

WASHER, PLATE(59W)

90201-253K0-00

$8.49

10

CIRCLIP

93440-25020-00

$9.49

11

WASHER PLATE 132172160000

90201-20266-00

$9.49

12

BEARING

93311-42077-00

$55.99

13

AXLE, DRIVE

99999-01986-00

Unavailable

14

PLUG, SPEC''L SHAPE

90338-09066-00

Unavailable

15

GEAR, 1ST WHEEL

583-17211-00-00

Unavailable

16

GEAR, 2ND WHEEL

583-17221-00-00

Unavailable

17

GEAR, 3RD WHEEL

583-17231-01-00

Unavailable

18

GEAR, 4TH WHEEL

583-17241-00-00

Unavailable

19

GEAR, 5TH WHEEL

583-17251-01-00

Unavailable

20

WASHER, PLATE(59W)

90201-253K0-00

$8.49

21

CIRCLIP

93440-25020-00

$9.49

22

WASHER PLATE 168171160000

90201-20278-00

Unavailable

23

CIRCLIP (525)

93410-20038-00

Unavailable

24

WASHER PLATE 132172160000

90201-20266-00

$9.49

25

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

Unavailable

26

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

Unavailable

27

OIL SEAL, SD-TYPE

93102-35180-00

Unavailable

28

COLLAR

90387-25507-00

Unavailable

29

O-RING

93210-22298-00

Unavailable

30

SPROCKET, DRIVE 16T (16T)

9383E-16106-00

Unavailable

31

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

32

NUT 152174630000

90179-18020-00

Unavailable
