REAR WHEEL

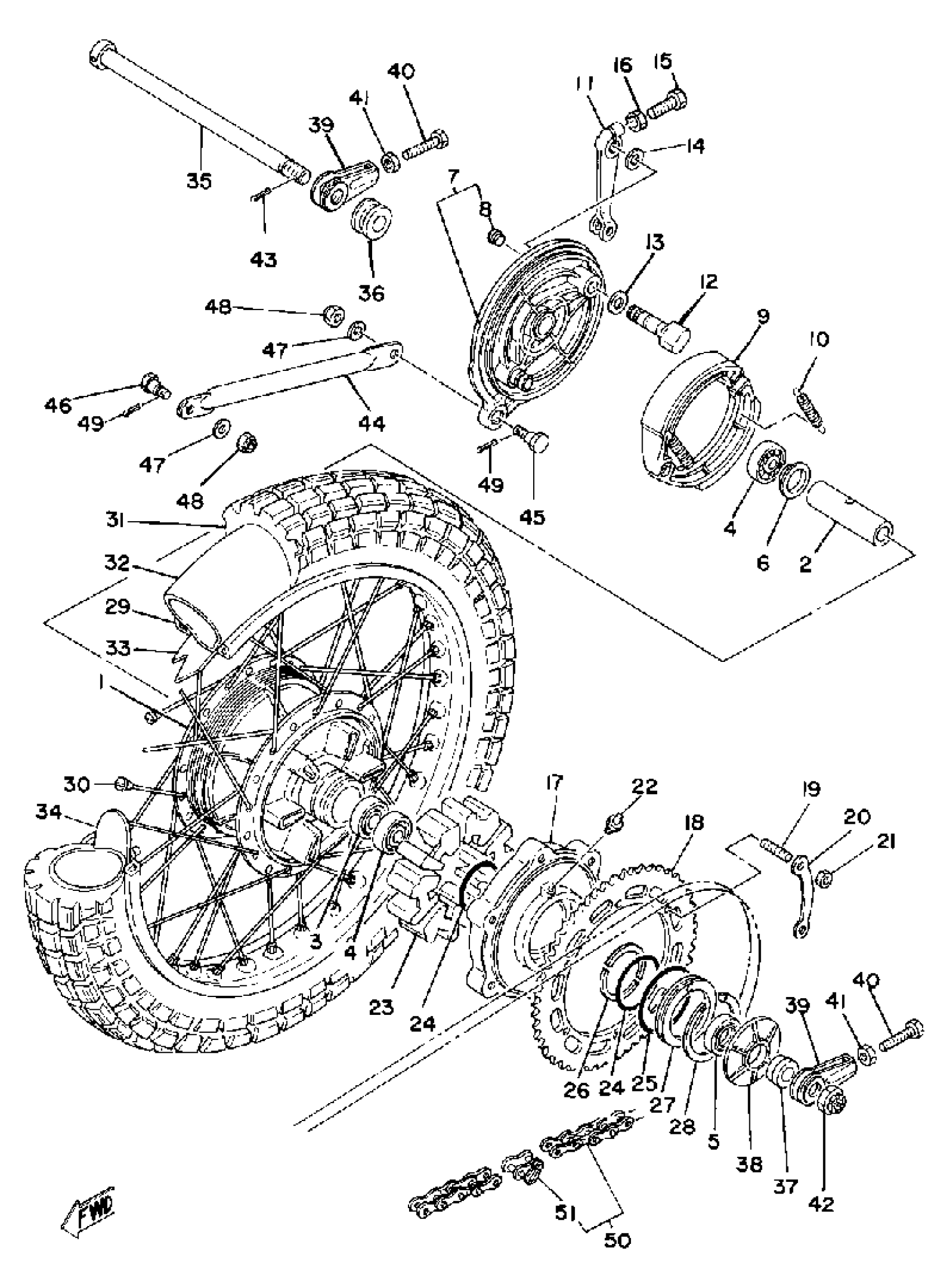

1981 Yamaha XT500 (XT500H) Rear Wheel Diagram
Find the part on the Rear Wheel diagram for your 1981 Yamaha XT500 (XT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HUB, REAR
(1E6-25311-00-98)
2
SPACER
90560-17311-00
7
BRAKE SHOE PLT ASSEMBLY
1E6-25321-12-98
9
BRAKE SHOE KIT
3GW-W253A-00-00
11
LEVER,CAMSHAFT
3BH-25355-00-00
12
CAMSHAFT
214-25351-01-00
14
SEAL, CAM SHAFT
148-25359-00-00
17
CLUTCH, HUB
1E6-25366-00-98
18
SPROCKET, DRIVEN 44T
38W-25444-20-00
20
WASHER
2XJ-25412-00-00
21
NUT (583)
90170-08193-00
23
DAMPER, CLUTCH
1E6-25364-00-00
26
STOPPER, HUB
1E6-25318-01-00
27
SEAL, HUB DUST
1E6-25319-01-00
28
CIRCLIP (1E6)
93450-78080-00
29
RIM 1.85X18
94418-18199-00
31
400X18 BS TW5A
94140-18344-00
35
AXLE,WHEEL
150-25381-01-00
36
COLLAR(3SX)
90387-170X9-00
38
COVER, HUB DUST
1E6-25367-00-00
39
PULLER, CHAIN 1
48U-25388-00-00
44
BAR, TENSION
3H7-25371-00-00
45
BOLT (537 TENSION BAR)
90109-08406-00
50
520D5-100L DID (94515-20100)
9Y585-20099-00
51
JOINT, CHAIN
94681-68001-00
