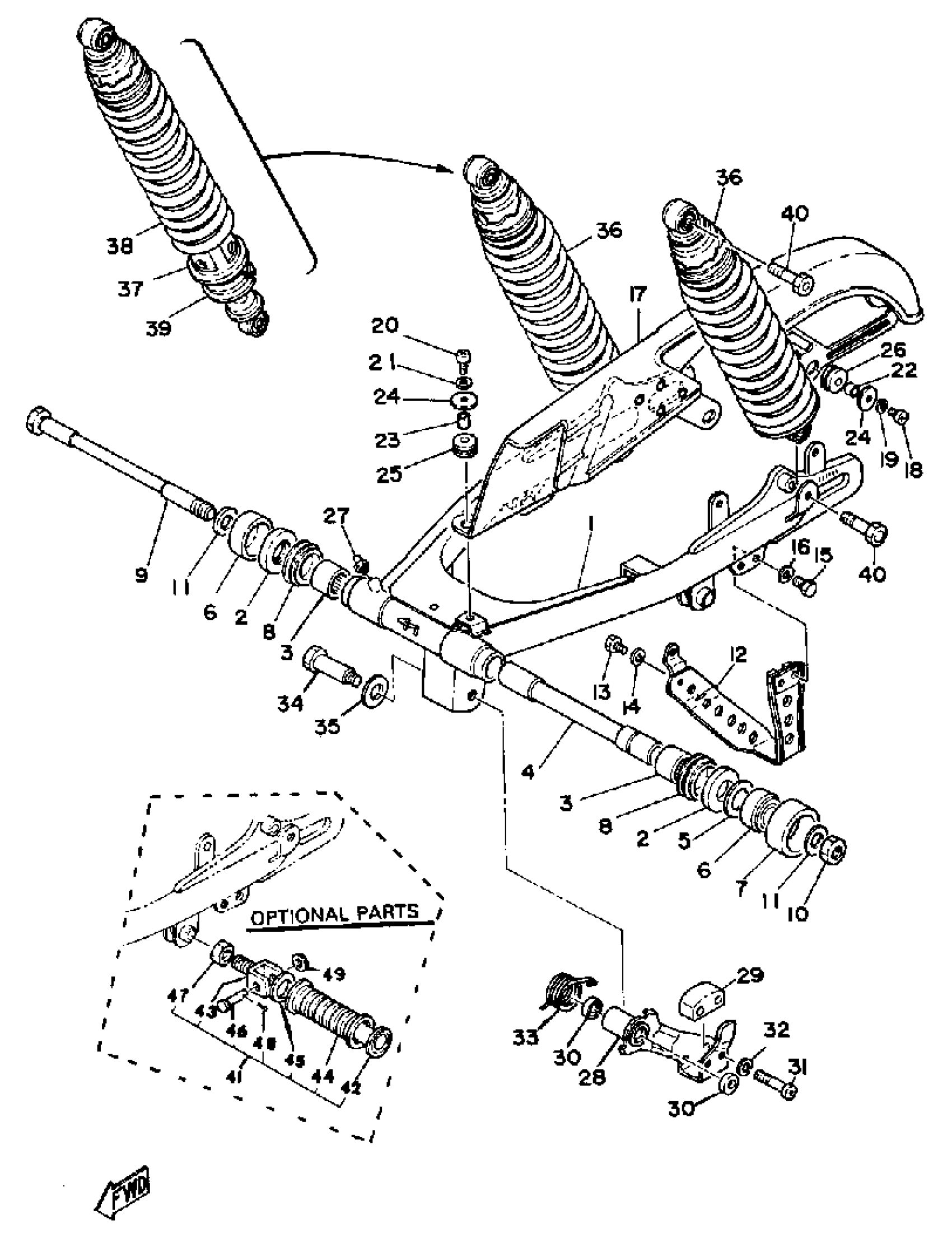

Yamaha XT500H (XT500) 1981 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM

(3H7-22110-00-33)

Unavailable

2

BEARING, THRUST

93342-22205-00

$70.99

3

BRG,CYL-CAL ROLLER 28.5G NT

93317-22208-00

$46.99

4

BUSH 2

483-22124-00-00

Unavailable

5

WASHER, PLATE

90201-22284-04

$2.82

6

COVER, THRUST 2

2K8-22129-00-00

$37.99

7

SEAL, GUARD

431-22151-03-00

$27.99

8

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

9

SHAFT, PIVOT

583-22141-01-00

Unavailable

10

NUT, U (6TD)

95617-16100-00

$26.99

11

WASHER (517 CLUTCH)

90208-16019-00

$8.49

12

GUARD, CHAIN

1U6-22318-00-33

Unavailable

13

BOLT(JA9)

90101-08691-00

$4.29

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, SPRING

92995-06100-00

Unavailable

17

CASE, CHAIN

1U6-22311-00-00

Unavailable

18

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

19

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

20

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

21

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

22

SPACER

90560-05001-00

Unavailable

23

COLLAR (3L6)

90387-06761-00

Unavailable

24

WASHER, PLATE

90201-06747-00

Unavailable

25

GROMMET

90480-12529-00

Unavailable

26

GROMMET (1U6)

90480-08216-00

Unavailable

27

NIPPLE, GREASE

93700-06M03-00

Unavailable

28

ARM, TENSIONER

2Y0-22179-00-00

Unavailable

29

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

30

OIL SEAL (2K8)

93109-14021-00

Unavailable

31

SCREW, PAN

98507-05040-00

Unavailable

32

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

33

SPRING, TORSION

90508-35387-00

Unavailable

34

BOLT (1J4)

90109-10483-00

Unavailable

35

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

36

SHOCK ABSORBER ASSY, REAR

3H7-22210-00-00

Unavailable

37

. COVER

1T1-22211-00-00

Unavailable

38

SPRING

(1T1-22212-00-00)

Unavailable

39

. GUIDE, SPRING 1

583-22214-00-00

Unavailable

40

BOLT (583 REAR CUSHION)

90109-10420-00

Unavailable

41

REAR FOOTREST ASSY

120-27430-02-00

Unavailable

42

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

43

. BRACKET 1

120-27432-02-00

Unavailable

44

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

45

WASHER, PLATE (888)

90201-20279-00

Unavailable

46

PIN, CLEVIS

(90240-06052-00)

Unavailable

47

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

48

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

49

WASHER, PLATE

90201-06049-00

Unavailable
