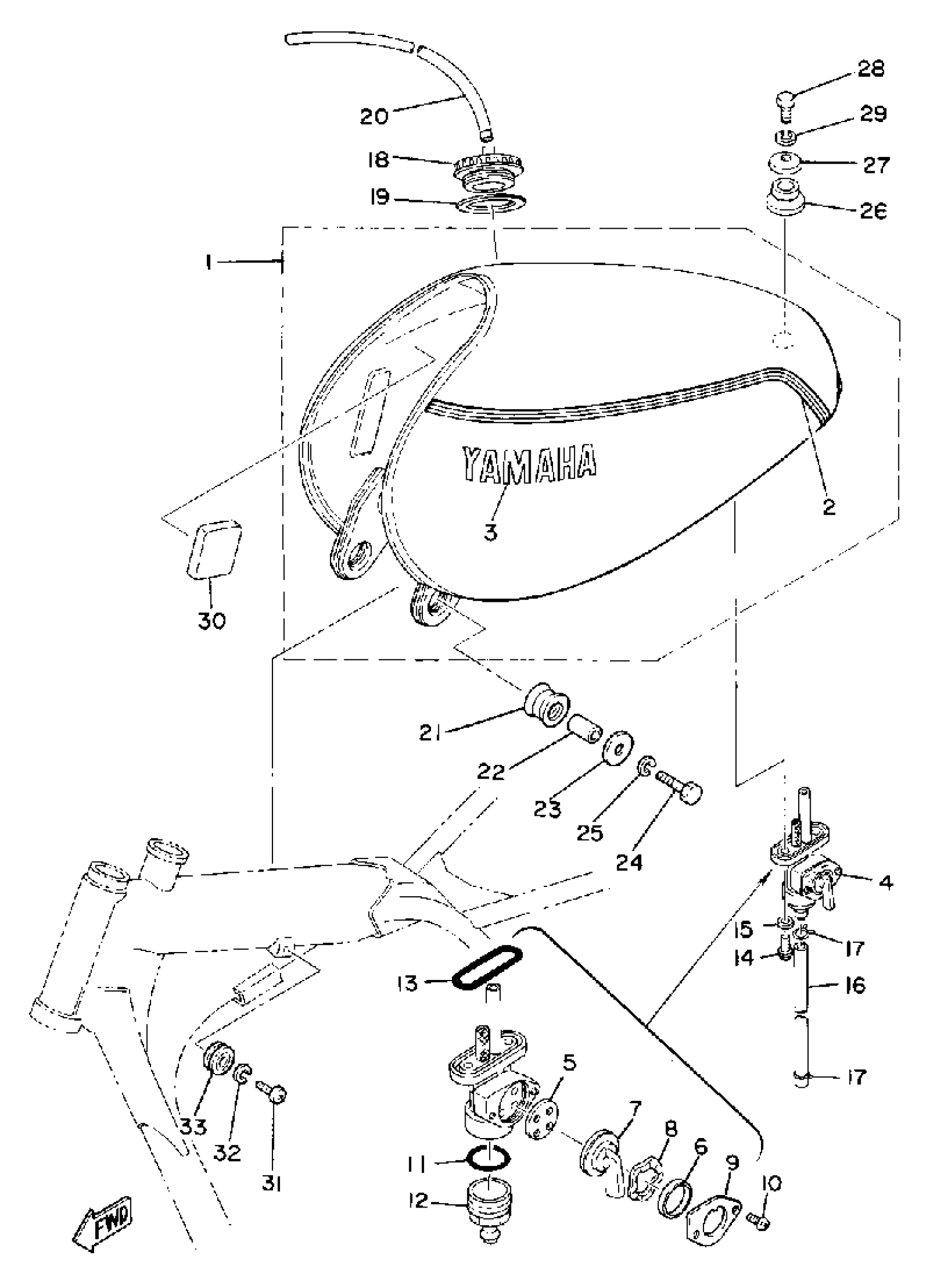

Yamaha XT500H (XT500) 1981 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(3H7-24110-00-03)

Unavailable

2

GRAPHIC SET

(4R9-24240-00-00)

Unavailable

3

EMBLEM, YAMAHA

99244-00140-00

$35.99

4

FUEL COCK ASSY

498-24500-01-00

$127.99

5

VALVE, COCK

498-24523-00-00

$44.99

6

GASKET

(498-24528-00-00)

Unavailable

7

. LEVER, COCK

498-24524-01-00

Unavailable

8

WASHER WAVE 137245180000

90206-18025-00

Unavailable

9

. PLATE, LEVER FITTING

498-24525-00-00

Unavailable

10

SCREW, LEVER FITTING

214-24535-00-00

$6.99

11

GASKET, FILTER

498-24522-00-00

$39.99

12

CUP, FILTER

(498-24521-00-00)

Unavailable

13

GASKET, BODY

214-24512-00-00

$30.99

14

SCREW 366241430000

90149-06008-00

$10.49

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

HOSE (L210)

90445-110F5-00

Unavailable

17

CLIP

90467-100A1-00

Unavailable

18

BODY, CAP

2A6-24611-00-00

Unavailable

19

PACKING, CAP

1W1-24612-00-00

Unavailable

20

HOSE (L1500)

90445-090F6-00

Unavailable

21

GROMMET (583 FUEL TANK)

90480-22177-00

Unavailable

22

COLLAR(1NL)

90387-086N4-00

Unavailable

23

WASHER, PLATE

90201-06086-00

Unavailable

24

BOLT, HEXAGON

97017-06030-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

DAMPER, FUEL TANK (434)

90480-22054-00

Unavailable

27

WASHER, PLATE

90209-08150-00

Unavailable

28

BOLT(JA9)

90101-08691-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

30

DAMPER, LOCATING 1

583-24181-00-00

Unavailable

31

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

32

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

33

DAMPER, TANK LOCATING

583-24182-00-00

Unavailable
